155/178
IM-SMT-VSNDIC-0002-000
2.12.4. Special Quad
This is the recognition mode used for rectangular components. Squares can also be
recognized with this mode.
<< Items to be set for recognition of Sp Quads >>
Items to be set Set value Explanation
Alignment Group Special Sets the component category.
Alignment Type Sp. Quad Sets the component type.
Comp. Threshold
Sets the binarization level.
(If 0 is specified, the threshold is set
automatically.)
Comp. Tolerance
Specifies the shape tolerance as a
percentage.
Search Area (mm) Sets the range of the detection.
Body Size X (mm) Sets the size of the outer edge.
Body Size Y (mm) Sets the size of the outer edge.
Body Size Z (mm) Sets the size of the outer edge.
Surface Type
Selects from reflect and non-reflect.
Selects reflect when the component
appears to be white and selects
non-reflect when it does not.
Cut Outer Noise Select from 0 through 7.
Cut Inner Noise Select from 0 through 7.
Noise Cut Order Selects from “Inner” or ”Outer”.
Lead Number N
When not performing line detection in
the N direction, this sets the value
other than 0.
Lead Number S
When not performing line detection in
the S direction, this sets the value other
than 0.
Lead Number E
When not performing line detection in
the E direction, this sets the value other
than 0.
Common
Data
Lead Number W
When not performing line detection in
the W direction, this sets the value
other than 0.
Table 102
[Recognition check items]
Items Yes / No Notes
Body Size Yes
Lead pitch No
Lead width No
Lead length No
Lead position No
Table 103

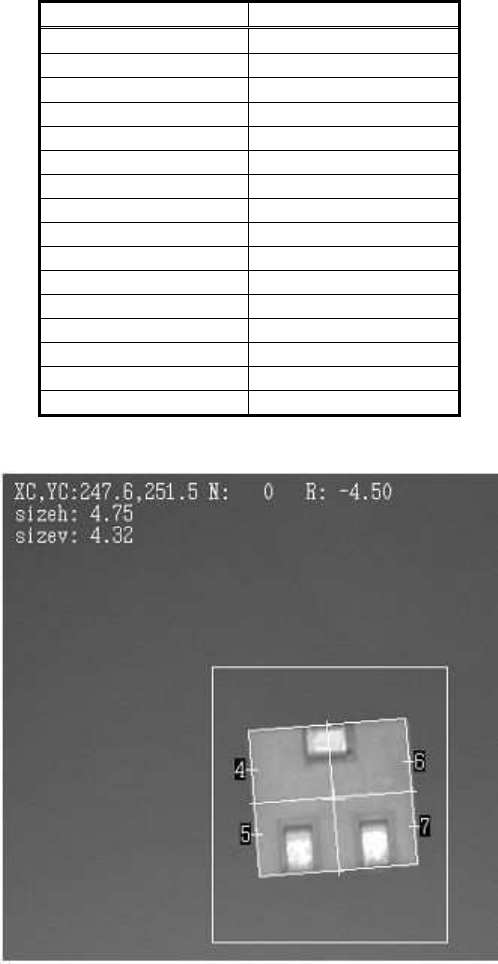

The following is the actual definition data of the component (semi-fixed resistor) and the
recognition result.
156/178
IM-SMT-VSNDIC-0002-000
Items to be set Set value
Alignment Group Special
Alignment Type Sp. Quad
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 15.0
Body Size X (mm) 22.0
Body Size Y (mm) 22.0
Body Size Z (mm) 0.5
Surface Type Reflect
Cut Outer Noise 0
Cut Inner Noise 0
Noise Cut Order --
Lead Number N 1
Lead Number S 1
Lead Number E 0
Lead Number W 0
Table 104
Figure 126
As the component has leads in the N/S direction, the value “1” is set to “Lead Number N/S” in
order to avoid line detection in the N/S direction.
As a result, recognition is carried out only in the right/left (E/W) direction.

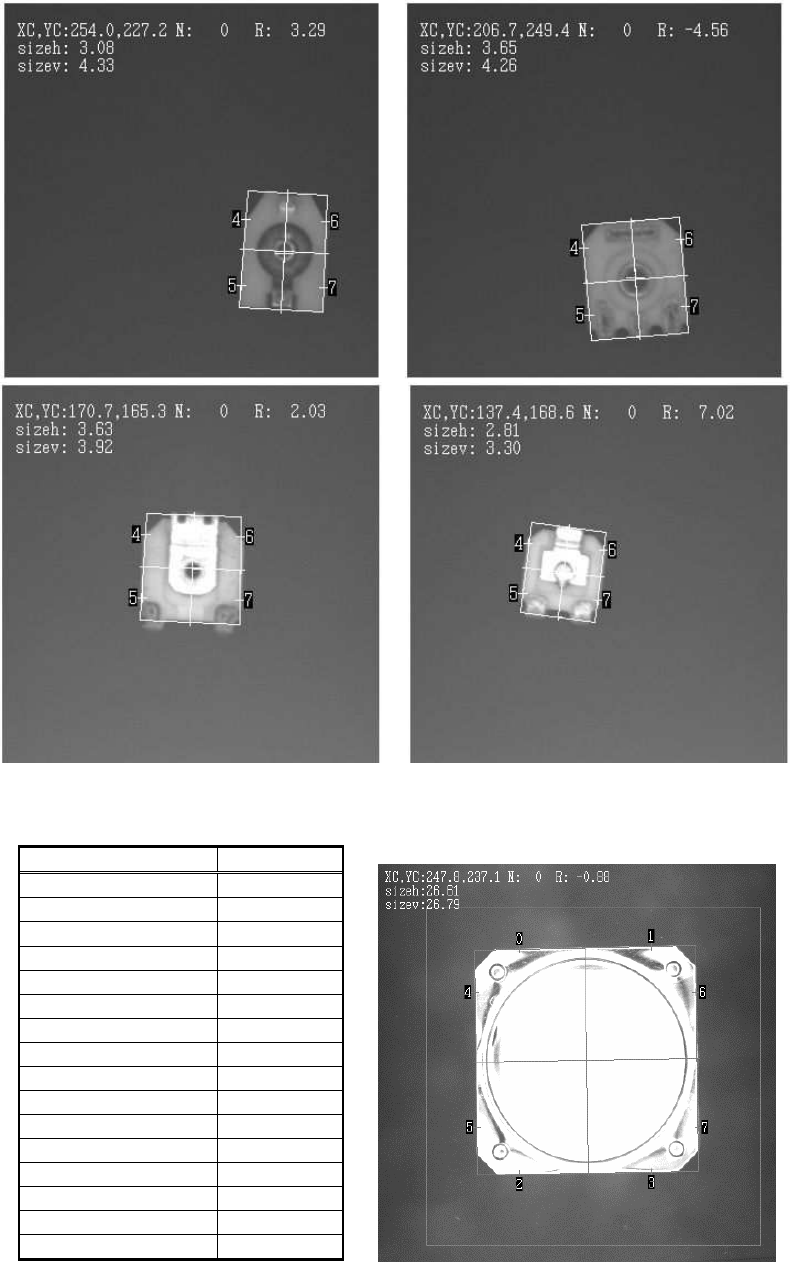

The following shows the recognition results of the actual component (trimmer capacitor).
Recognition was performed only in the left/right (W/E) direction for these components.
157/178
IM-SMT-VSNDIC-0002-000
Figure 127
The following is the example of the recognition of Sp Quad. All the four sides were used for
the recognition.
Items to be set Set value
Alignment Group Special
Alignment Type Sp. Quad
Comp. Threshold 0
Comp. Tolerance 30
Search Area (mm) 15.0
Body Size X (mm) 28.0
Body Size Y (mm) 28.0
Body Size Z (mm) 0.5
Surface Type Reflect
Cut Outer Noise 0
Cut Inner Noise 3
Noise Cut Order --
Lead Number N 0
Lead Number S 0
Lead Number E 0
Lead Number W 0
Table 105 Figure 128
