OPTIMA PAL SOFTWARE
Optima User Manual
107
The Memory Menu
The second menu on the Main Programming screen is the Memory menu. The
Memory menu provides you with a method to view and/or edit the contents of
memory at any time before or after the programming operation:

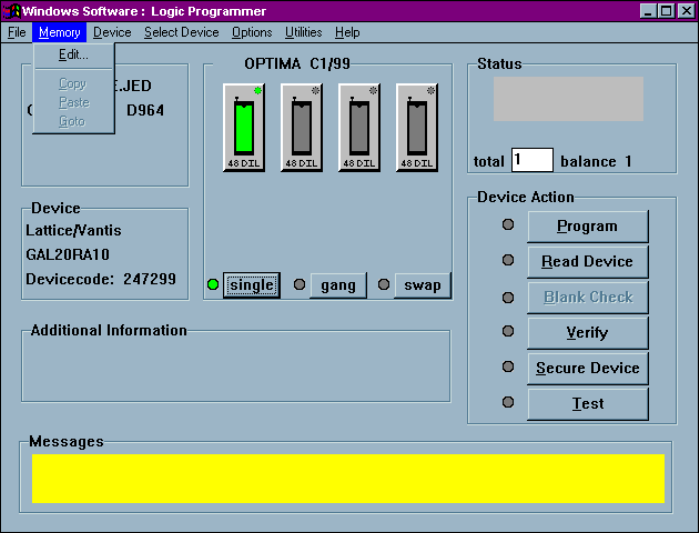

The Memory menu
OPTIMA PAL SOFTWARE
Optima User Manual
108
Memory>Edit
Selecting Memory>Edit from the Memory menu will produce the following screen:
The Edit menu
The editor screen allows you to view the fusemap of the logic device under test, and
also allows you to edit the fusemap manually if necessary. As can be seen in the
figure above, a portion of the addressable fuse locations is displayed. If there is a “–”
symbol in any location, that fuse has been blown, while the “X” symbol indicates that
the fuse is still intact. Some of the additional controls on the screen include:
x All to ‘–’—Blows all fuses in the device
x All to ‘X’—Connects all fuses in the device
x Set Line to ‘–’—Blows all fuses in the line that has been selected by the mouse
cursor; indicated by the highlighted line
x Set Line to ‘X’—Connects all fuses in the line that has been selected by the
mouse cursor; indicated by the highlighted line
x Home—Sends the cursor back to the beginning fuse location of the device
x End—Sends the cursor to the last fuse location of the device
OPTIMA PAL SOFTWARE
Optima User Manual
109
x Page (upper button)—Moves the cursor up one page of data each time the
button is pressed
x Page (lower button)—Moves the cursor down one page of data each time the
button is pressed
x Up—Moves the cursor up one line of data each time the button is pressed
x Down—Moves the cursor down one line of data each time the button is pressed
An additional function that can be used from the editor screen is a simple fuse
location indicator. To use this indicator, simply place the mouse cursor over the
location in question, right-click the location with the mouse, and a window will appear
with the fuse location:
Right-clicking the edit screen will provide the fuse location under the cursor
