OPTIMA PROM SOFTWARE
Optima User Manual
71
In this dialogue, you can specify the starting and ending addresses. In the example
shown, the start address is set to 100:
Start address set to 100
The file load operation will cause data to be loaded starting at address location hex
100. If a programming operation is performed, data will be programmed from location
100 to 1FFFF
OPTIMA PROM SOFTWARE
Optima User Manual
72
Memory>Checksum Options…
The Checksum Options…menu item is used to set the number of characters
representing the data checksum, ranging from four to eight characters.
Selecting Memory>Checksum Options… will produce this screen:
Setting the checksum options
Here you have the option to select a 4 to 8 digit hexadecimal checksum. Checking the
Calculation of checksum with special bytes adds the special bytes to the displayed
checksum.
OPTIMA PROM SOFTWARE
Optima User Manual
73

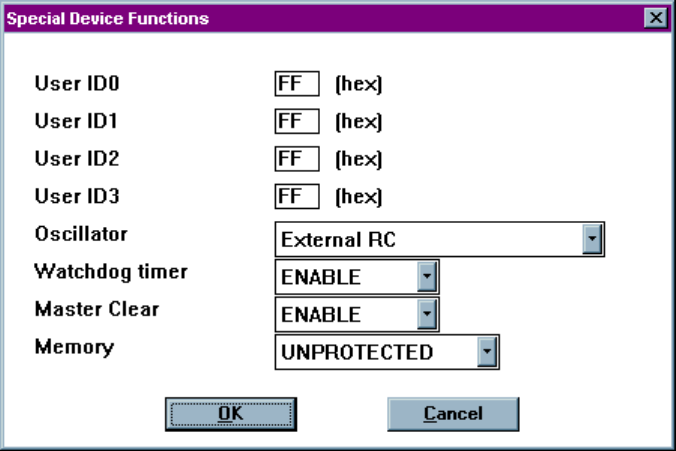

Memory>Special Device Functions…
The Special Device Functions…menu item is used to set features unique to the
devices under test. This feature is enabled only for devices with special features.
Additionally, these features vary from device to device.
Setting special device functions
