OPTIMA PAL SOFTWARE
Optima User Manual
125
The Utilities Menu
The sixth menu on the Main Programming screen is the Utilities menu:
The Utilities menu
You can create a complete list of devices supported by the Optima Family
programmers by using the Utilities menu.
OPTIMA PAL SOFTWARE
Optima User Manual
126
Utilities>Create Devicelist
To create a device list, select Utilities>Create Devicelist. The following screen
appears:
Attention screen
Click <Yes> to continue.
A file titled “dev_pal.txt” is then created in your Optima directory. It lists all the
programmable logic devices supported for the installed version of Optima software.
The “dev_pal.txt” file is tab delimited and can be imported into an Excel spreadsheet.
Once imported, use Excel to filter the file to create a device list that meets your
specific needs.

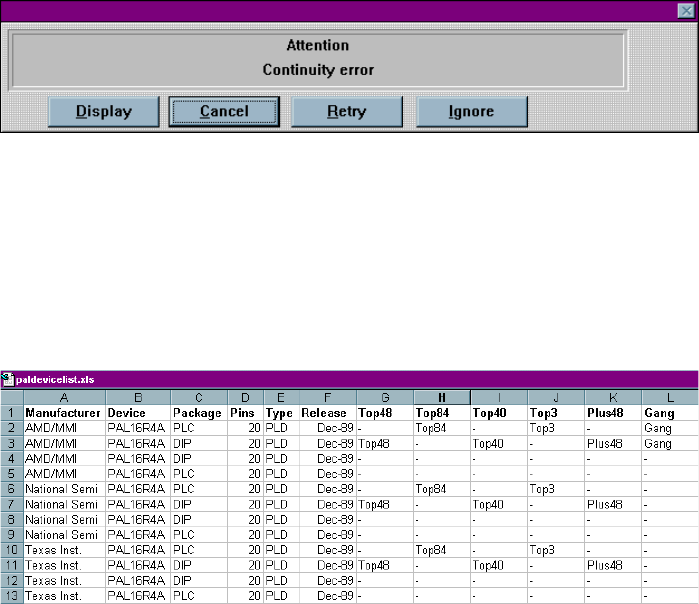

Excel spreadsheet device list (portion)
OPTIMA PAL SOFTWARE
Optima User Manual
127
The Help Menu
The seventh menu on the Main Programmer screen is the Help menu:
The Help menu
The information available in the Help menu provides assistance with commonly used
features and functions of the Optima PAL software.
