x Store S/N bytes—This setting specifies which bytes are written to the memory

array and in which order. The selections are:

q All—All bytes of the serial number are written to the memory array.

q Even—Only the even bytes of the serial number are written. If this

option is selected, then the number of serial number digits (selected in

S/N Digits) must be even (2, 4, 6, or 8).

q Odd—Only the odd bytes of the serial number are written. If this option

is selected, then the number of serial number digits must be even (2, 4, 6,

or 8).

q 0 of four, 1 of four, 2 of four, 3 of four—Only bytes in the

corresponding byte position in the serial number are written. For

example, if a HEX serial number of 00BC614Eh is generated, when 1 of

four is selected, BCh (byte #1 of four bytes total) is written to the

designated start address. The largest hexadecimal serial number allowed

is FFFFFFFFh, or 4,294,967,29510. The largest BCD serial number

allowed is 99999999h, or 2,576,980,37710

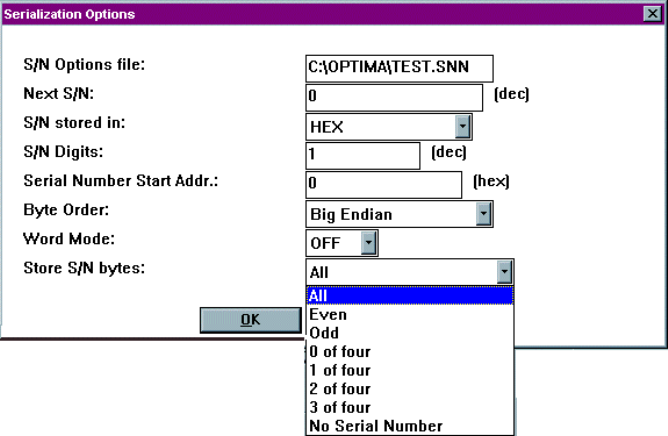

Selecting the method of storing serial number bytes

Note: The X of four mode works only with hexadecimal and BCD

serial number types as selected in the S/N stored in field.

OPTIMA PROM SOFTWARE

Optima User Manual

Selecting ASCII as a serial number value type will return an

error.

The Device Menu

The third menu on the Main Programming screen is the Device menu. This menu

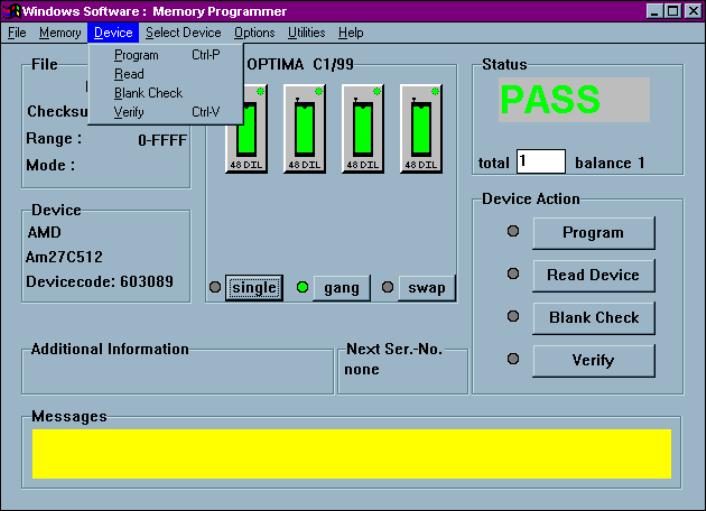

provides you with basic operational commands as shown in the figure below:

The Device menu

The Program, Read, Blank Check, and Verify commands can be initiated from this

menu.

OPTIMA PROM SOFTWARE

Optima User Manual

Device>

Program

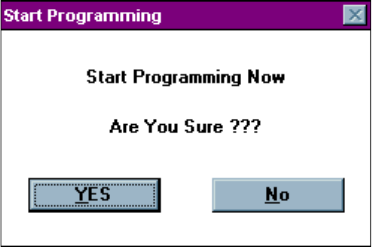

Selecting Device>Program produces the following dialogue:

Starting the Program routine

Selecting <Yes> begins the programming operation; <No> stops the programming

operation.
