QUICK START
Optima User Manual
37
P
ROGRAM THE
D
EVICE
Now that you have loaded valid data into the programmer’s RAM by loading a data
file, you’re ready to program the device. To program the device, follow these steps:
1. Insert the device you wish to program into the TOP with the green LED.

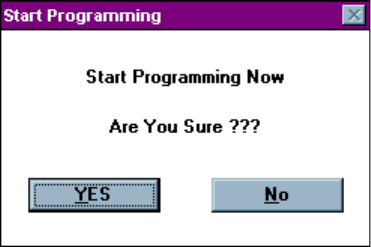

2. Click Program. You will be asked if you wish to Start Programming Now.
QUICK START
Optima User Manual
38
3. Click YES.

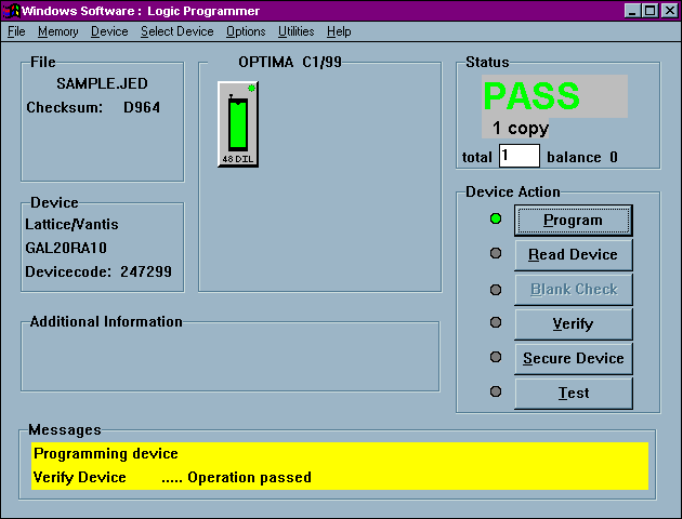

When the programming operation is complete, the Status area of the Main
Programming screen displays the word PASS:
QUICK START
Optima User Manual
39
Programming a Memory Device on the TOP432 By Reading A
Master Device
If you wish to program a memory-based device on the TOP432 and you will be
reading a Master Device, follow this procedure.
S
ELECT THE DEVICE YOU WISH TO PROGRAM
:
Programming begins by selecting the device you wish to program. To select the
device, follow these steps:
1. Double click the Optima PROM432 icon on the Windows desktop. The Change
Device window displays a device list for the TOP432.
2. Click on the name of the Vendor. When you do that, the Family and Device lists
may change.
3. Click on the general Family of devices. The Device list may change again based
of the Family you chose.

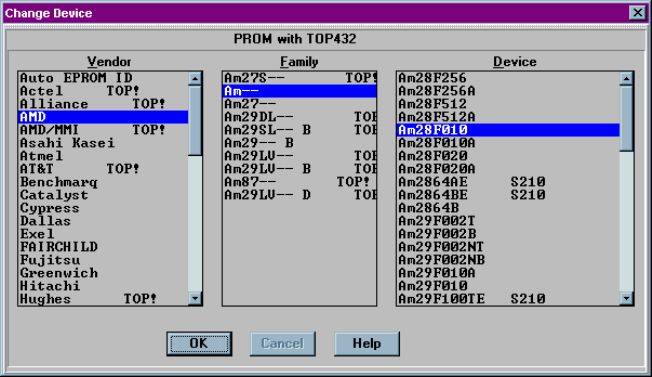

4. Click on a device part number from the Device list. In this example, an
AMDAm28F010 is selected:
