The TOP432 consists of four 32-pin sockets, and is designed primarily for gang
programming of memory devices, though it can also be used for set programming (up
to four devices) of memory devices. A limited range of logic devices can also be
programmed using the TOP432.
A Quad programmer with a TOP432 installed in Site #3
As with all TOPs, the TOP432 operates independently of other TOPs when different
TOP styles are installed on a Multisyte programmer. The only operating difference
between the TOP432 and other TOPs is the number of devices supported by each.
Otherwise all TOPs operate seamlessly on the programmer.
Like other TOPs, the TOP432 may be used in gang with other TOP432s on the same
programmer, thus providing a large throughput of devices. Using the TOP432 in a
multiple-gang capacity is as simple as choosing the gang selection and choosing all
SET PROGRAMMING ON THE TOP432
Optima User Manual
137
TOP432s installed on the programmer. In this mode, all devices inserted into all of
the TOPs will receive the same programming information.
The TOP432 is unique because it has both gang and set programming capabilities. By
default the TOP432 is in the gang programming mode, where each device is
programmed with the same data. If you want to change to set programming, click on
the TOP432 icon. When the TOP432 icon appears, select SET-Mode programming.
In set mode, you have the option of 8, 16 or 32 bit programming mode:

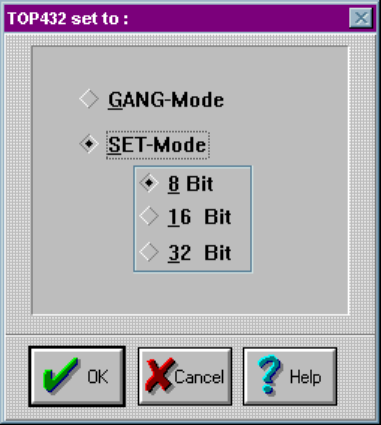

Gang/Set mode screen
