QUICK START
Optima User Manual
40

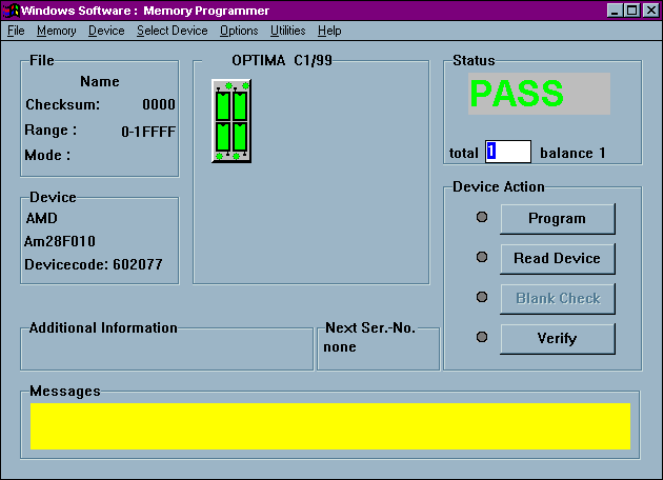

5. Click OK to save that selection and display the Main Programming screen:
QUICK START
Optima User Manual
41
R
EAD A
M
ASTER
D
EVICE
:
After you have selected the device, you are ready to read the Master Device. To read
the Master Device, follow these steps:
1. Insert the Master Device in the upper left-hand socket of the TOP432.
2. Click Read Device.
Data from the Master Device is loaded into the programmer’s RAM. When the
load operation is complete, the Status area in the Main Programming screen
displays the word PASS and the checksum for the data loaded into RAM is
displayed:
QUICK START
Optima User Manual
42
P
ROGRAM THE
D
EVICE
Now that you have loaded valid data into the programmer’s RAM by reading a Master
Device, you’re ready to program the device. To program the device, follow these
steps:
1. Remove the Master Device from the TOP432.
2. Insert the devices you wish to program into the four sockets of the TOP432.
3. Click Program. You will be asked if you wish to Start Programming Now
.
