OPTIMA PROM SOFTWARE
Optima User Manual
88
The Select Device Menu

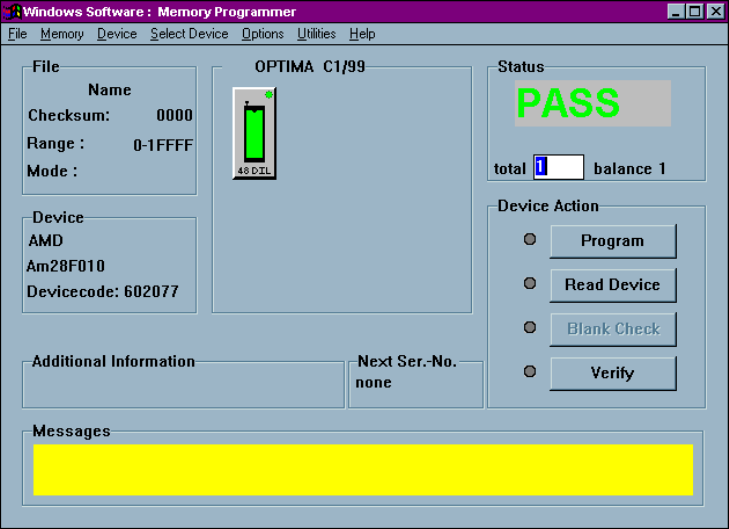

The fourth menu on the Main Programming screen is the Select Device menu.
The Select Device menu
OPTIMA PROM SOFTWARE
Optima User Manual
89
The Select Device menu allows you to select the type of device you wish to program.

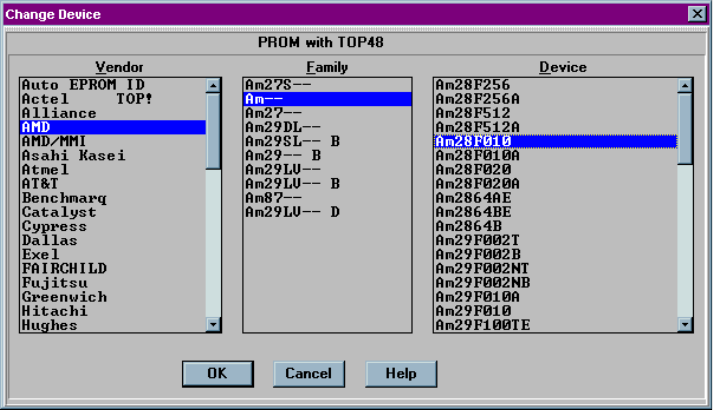

When selected, the Change Device screen appears:
Selecting the device to be programmed
Select the vendor, family and device to be processed from the list and click <OK>.
The devices listed are those that are supported by the TOP that has been installed. If
you do not find the device on the list, follow these steps:
1. Turn off power to the programmer
2. Close the software
3. Remove the TOP
4. Install a TOP that supports the device you wish to program
OPTIMA PROM SOFTWARE
Optima User Manual
90
If you see TOP! next to the vendor name, no device manufactured by that vendor is
supported by the TOP you have installed. For example, the TOP48 does not support
any Actel devices, as shown here:
Vendor not supported by this TOP
