2. Safety S-3 Introduction 2.2 Safety message █ Safety message: The following describes precautionary items. TIP Provides helpf ul explanation f or wor k. n NOTE Provides r equired informat ion when oper ating the machin…

2. Safety

S-2

Introduction

2. Safety

Make sure to follow safety regulations and instructions to use the purchased equipment safely and

correctly. However, all the items regarding safety cannot be included in this manual. Therefore, note

that the accurate judgement regarding safety by operator is absolutely essential.

2.1 Common precautions

█

Before using

• The person operating a machine must have received proper training in operating it in a safe and

correct manner.

• When connecting the equipment to the power source, make sure to ground it to prevent an electric

shock.

• Read the precautionary items on the mounter and the manual thoroughly and follow the directions.

• Do not perform any operations other than those described in the instruction manual.

• Locate the Power station for offline setup and the Power unit for carriage considering the operation

of the circuit breaker. Make sure to allow enough space to get access to the circuit protector and to

unplug the power cable from the AC inlet.

█

When using

• Do not handle feeder with one hand. Do not detach multiple feeders at once. Feeders may fall,

resulting in personal injury, especially on your foot or damage to the feeder.

• Do not use feeder in an environment where flammable gases are present or where it is extremely

dirty.

• If the equipment is used incorrectly, it may result in loss of the protective function that the equipment

has. Contact YAMAHA sales representatives when feeder has problems.

• When an error occurs in feeder, fully understand the type of error and the situation and power off

the mounter. Additionally, power on the mounter after removing the cause of an error completely.

• Do not operate the equipment with wet hands. Otherwise it may result in an electric shock.

• AS the cutter blades of the tape cut jig is very sharp, take the greatest care not to get injured.

• If the tape cut jig lost the sharpness, unusually strong force is required to cut off the tape, which may

cause personal injury. In such a case, purchase a new tape cut jig.

• During operation of the mounter, make sure to keep yourself (including all parts of your body and

clothing) and other objects away from the mounter's moving parts.

• When the green lamp of the light tower is ON or flickering (ON and OFF), it indicates that the static

mounter is in the "Automatic" mode (standby mode). However, the mounter may suddenly starts to

operate.

• In case of a disaster of any kind, earthquake, storm, flood, fire, or lightning, immediately stop the

mounter operation and power off the mounter.

█

When maintaining

• Do not supply power to feeder whenever it is inspected, parts are replaced, or repairs or internal

adjustments are made.

• Do not use water or chemical solvent for cleaning feeder, otherwise it will be damaged. Use a dry

cloth to clean the external surfaces of feeder.

• Only trained personnel should perform maintenance of feeder, both carefully and in accordance with

the procedures specified.

2. Safety

S-3

Introduction

2.2 Safety message

█

Safety message: The following describes precautionary items.

TIP

Provides helpful explanation for work.

NOTE

Provides required information when operating the machine in a simple and clear manner.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor injury, or material loss or damage to

the machine. These points are important for protecting the safety of the machine and data, etc.

WARNING

INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS

INJURY. THESE ARE POINTS MOST ESSENTIAL FOR PROTECTING THE SAFETY OF THE MACHINE OPERATOR, INSPECTOR

AND SERVICE PERSONNEL.

If this mark is in this manual, make sure to work while a machine is ins emergency stop.

█

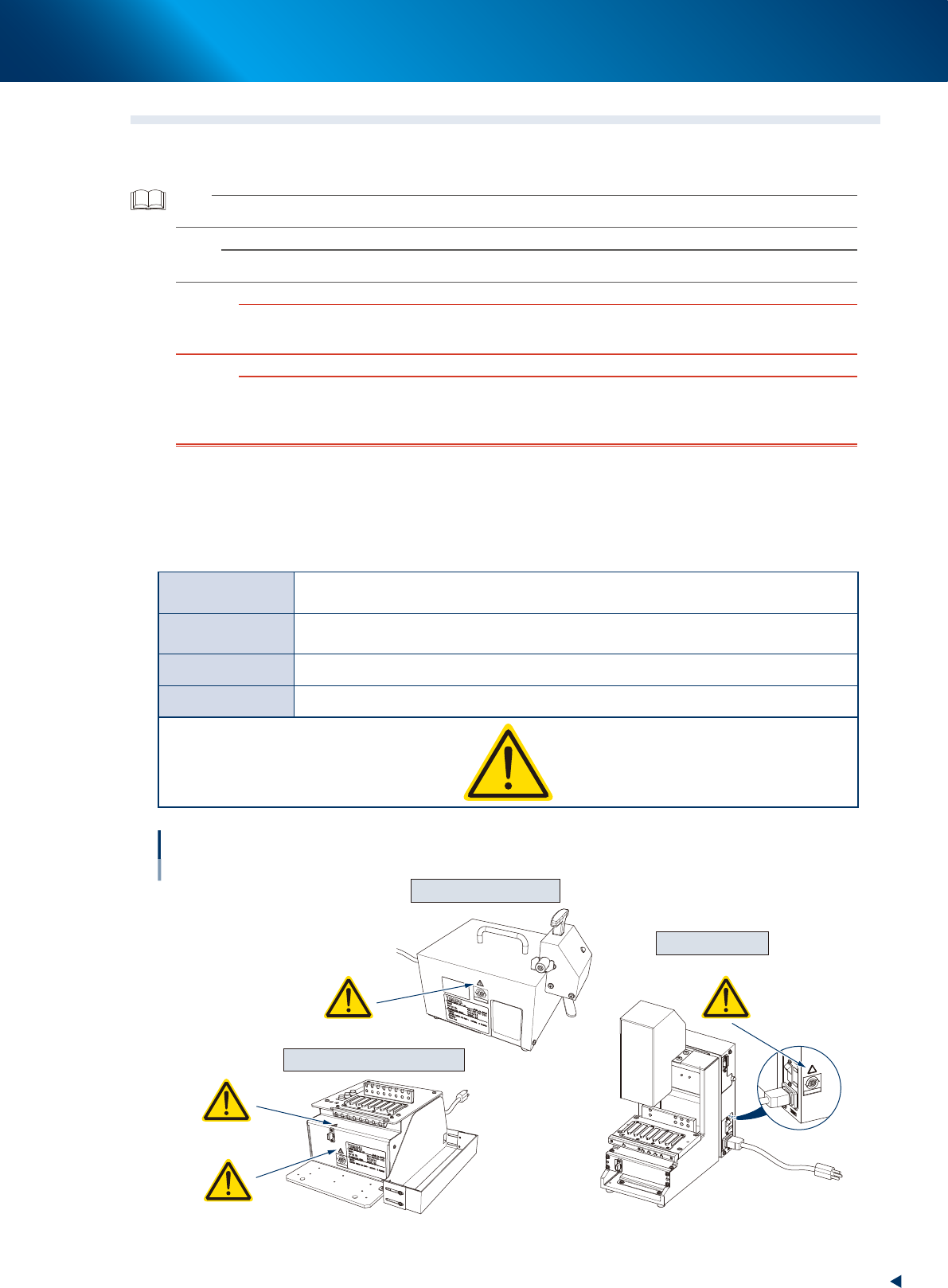

Warning label: Power station for offline setup and other equipment

To use this equipment safely and correctly, warning labels are attached to the equipment. Make sure to

understand the description of warning label and comply with the instructions.

Potential hazard

If the equipment is not connected to the power source with the specified voltage, it may

result in the breakage or malfunction of the equipment.

To avoid hazard

Make sure to connect the equipment to the power source with the specified voltage

referring to the manual.

Case Setup

Label position Serial number label area

Label positions

Feeder external equipment

Power unit for carriage

Power station for offline setup

Tune-up station

63009-KLU-30

2. Safety

S-4

Introduction

2.3 Keeping body and objects away from moving parts

During use of a mounter, a customer’s equipment and operating conditions might allow the operator’s

body (including parts of your body and clothing) and other objects to come into contact with moving parts.

Use the following safety measure options to avoid possible danger where openings or gaps are found on the

mounter.

█

Dummy feeder

Use dummy feeders as safety measures to fill a gap between feeders, to prevent your hand or body part

from inserting into it.

When the reel switching operation executed by Auto Loading Feeder, a component tape may be

protruded forcibly. If the tape ejection path (slope) is stucked by the cause of as such the remained

carriar tapes in the Dust Box, it may cause the protruding of the long carriar tape ejected forcibly into

machine from the empty slot beside of feeders.

This may cause some pickup error or machine trouble, filling the empty feeder slots using dummy

feeders is recommended around Auto Loading Feeder.

Moreover, instead of dummy feeders, the feeders described below can be used; SS feeder, ZS feeder or

Auto Loading Feeder.

Part name Part number Remarks

Dummy feeder KLJ-M34D0-01X New model

NOTE

Though the former model of dummy feeders (KLJ-M34D0-00X) is also provided, apply a dummy feeder described above to

ﬁll the empty slots besides of Auto Loading Feeder.

█

One-stop cover

If not using a feeder exchange carriage for a mounter that is to be used with feeder exchange carriages

(excluding YSM40R), attach an one-stop cover to the position where a feeder exchange carriage is

attached to prevent body and objects from entering.

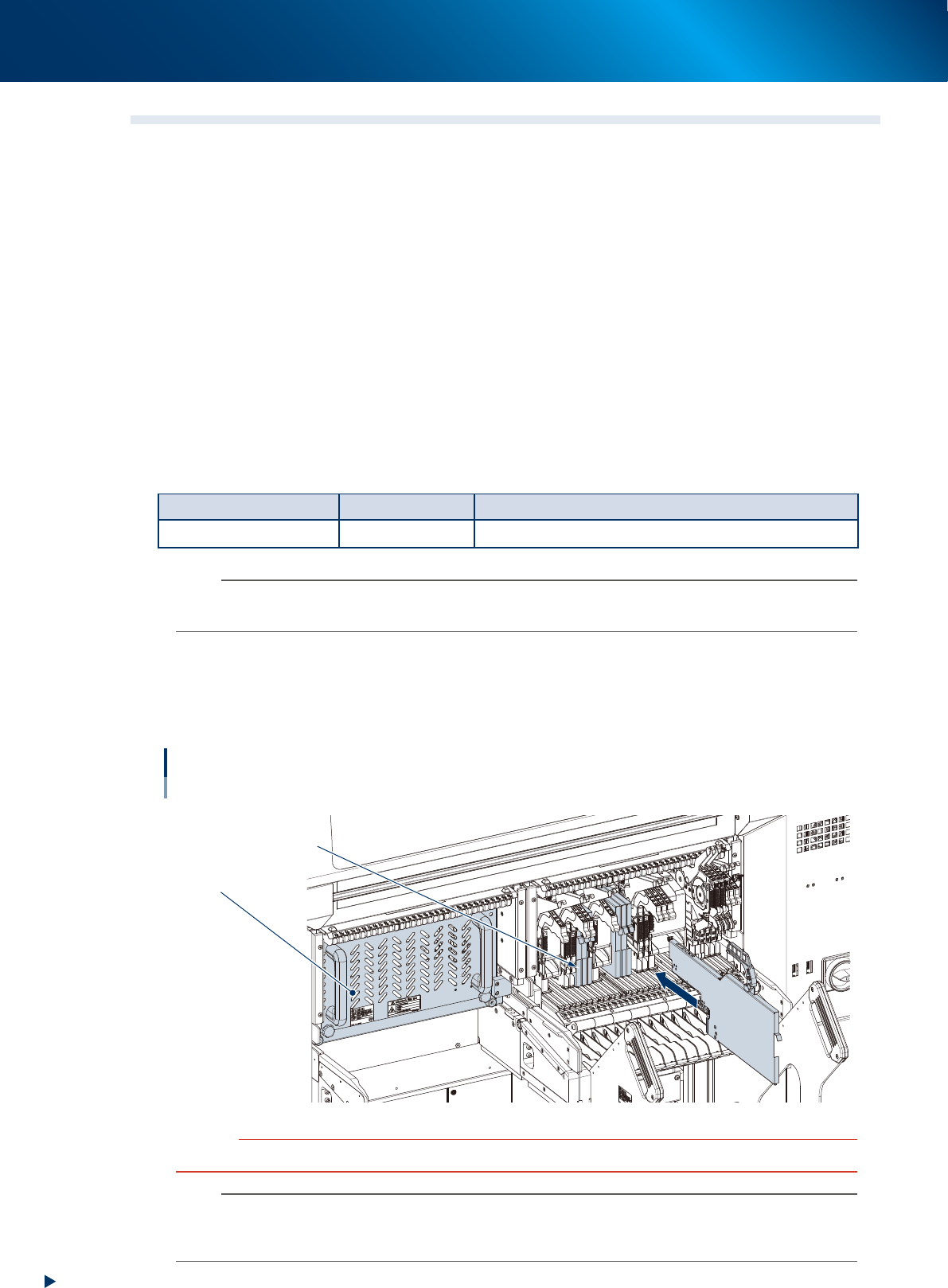

Prevention of body and objects entry

Dummy feeder and One-stop cover

Dummy feeder (8 mm size)

One-stop cover

63002-KLU-30

CAUTION

Do not apply strong impact to the one-stop cover for YRM20, as it contains a board within.

NOTE

One-stop cover cannot be attached/detached during operation. The mounter must be in a stopped state because the

section where a feeder exchange carriage is to be installed will move up and down for attaching or detaching the feeder

exchange carriage.
