1. Preparation for loading component tape
2-3
Chapter 2 Handling component tape
1.1.3 Precautions about cutting position of component tape
• If cutting a component tape at the specified position and the pocket is cut, avoid the pocket to cut
the component tape.
• Do not cut a pocket and a component tape at the position where more than half of feed hole
remains. Otherwise an operation error may occur.
• Do not cut a component tape obliquely.
• Make sure to cut from the pocket side when cutting a paper component tape.
Incorrect example 1
Incorrect example 2
Incorrect example 3
Cutting position of component tape
Precautions
Pocket is cut.
More than half of feed hole remains.
Component tape is cut obliquely.
Correct example
Pocket
Tape cut direction
Feed hole
63203-KLU-30
1. Preparation for loading component tape
2-4
Chapter 2 Handling component tape

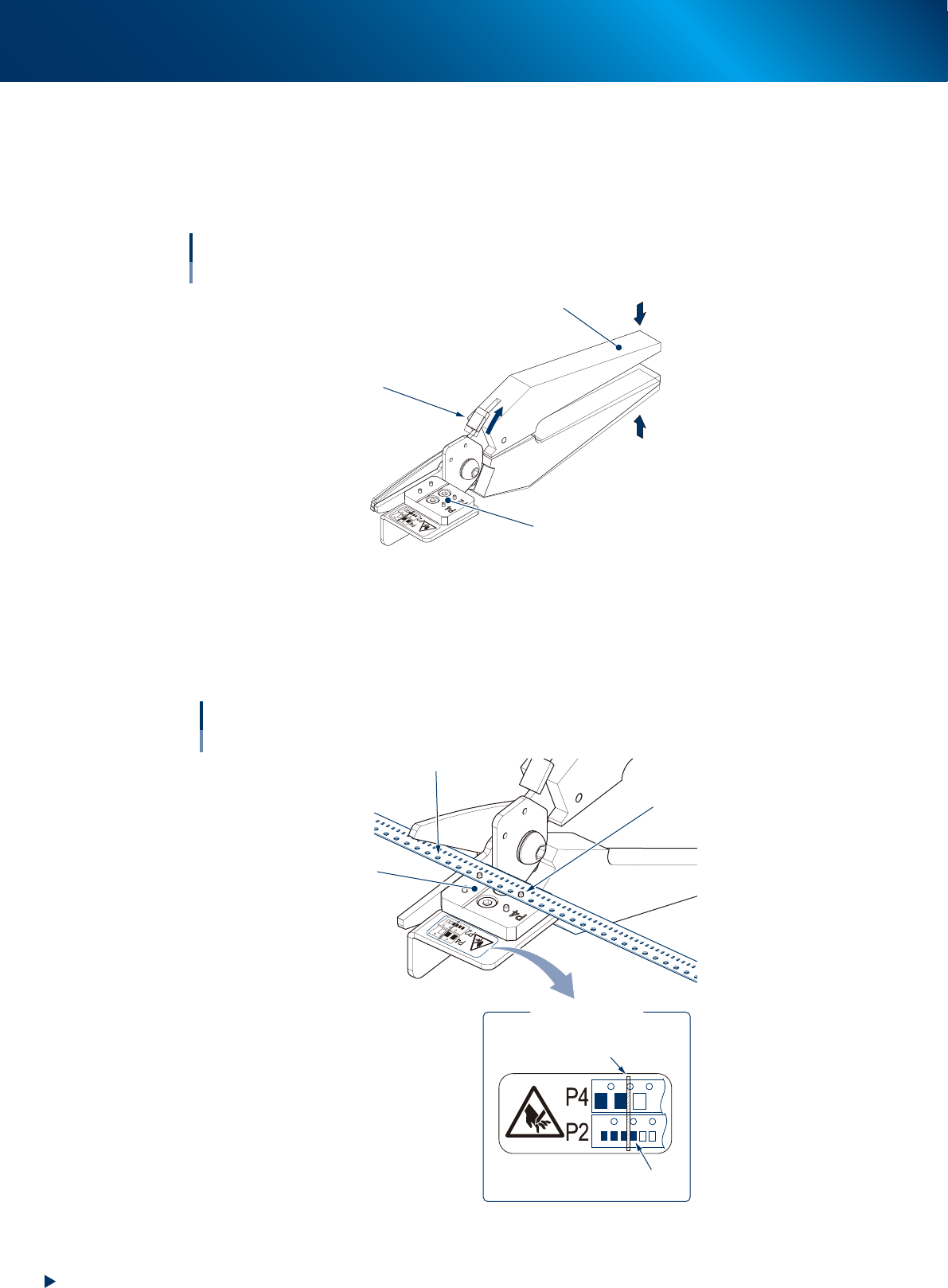

1.1.4 Cutting component tape
Cut a paper component tape with specified tape cut jig (scissors).
1
Release the locking lever.
Slide the locking lever upward gripping the handles lightly to release the locking lever.
Tape cut jig
Releasing locking lever
Locking lever
Handle
Set position of component tape
Grip handles lightly.
Move upward.
63208-KLU-30
2
Set a component tape.
1. Check the pitch of component tape to be cut, as the tape set position is different between 2mm
and 4mm pitches.
2. The paper tape should be set illustrated below to be cut always from pocket side.
Tape cut jig
Setting component tape
Pin
Tape set position
Feed hole
Tape set line
*Pocket with component
may align with line.
Instruction label
(Tape set position)
63209-KLU-30
1. Preparation for loading component tape
2-5
Chapter 2 Handling component tape

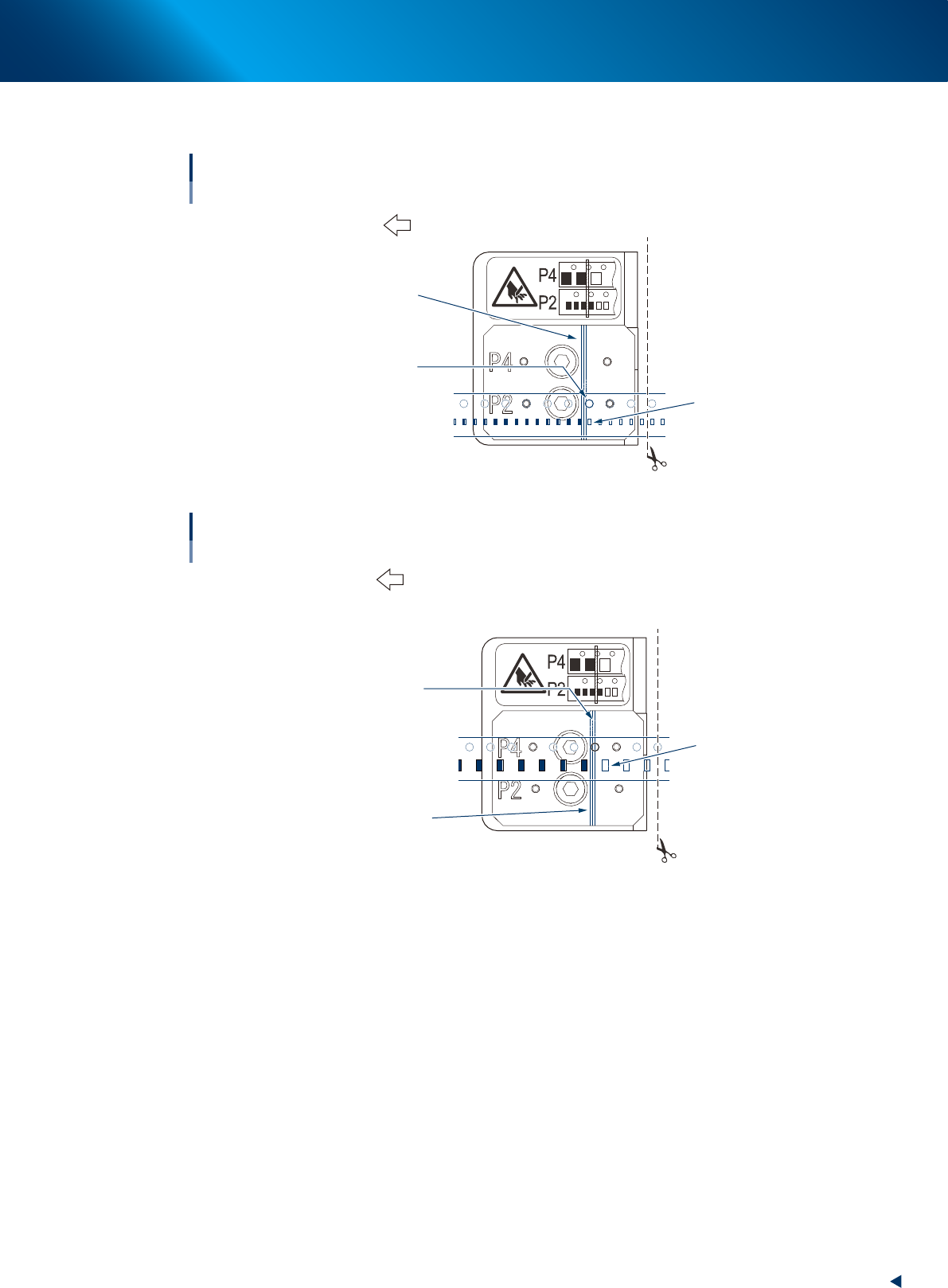

3. Insert a component tape to the pin position of subjected pitch, while aligning the 4th feed hole
from cutting position with the tape set line as illustrated below.
123
4
Tape set position for 2mm pitch component tape
Tape reel side
Tape set line
*Pocket with component
may align with line.
Cutting position
4th feed hole from cutting position
63210-KLU-10
123
4
Tape set position for 4mm pitch component tape
Tape reel side
Tape set line
*Pocket with component
may align with line.
Cutting position
4th feed hole from cutting position
63211-KLU-10
3
Cut the component tape.
Grip the handles of tape cut jig to cut the component tape.
4
Check the cut position of component tape.
See "1.1.3 Precautions about cutting position of component tape" to check that the component tape
is cut correctly.
