1. Preparation for loading component tape
2-1
Chapter 2 Handling component tape
1. Preparation for loading component tape
1.1 Cutting component tape
Cut the top of component tape as below depending on the types of tape and the tape condition of use.
1.1.1 New component tape
►
2 mm feed pitch
Cut the side of 4th feed hole from a feed hole on the same line as pocket with first component.
If the feed hole is not on the same line as pocket with first component, cut the side of 4th feed hole from
feed hole on the line between last empty pocket and first pocket with component.
►
4 mm feed pitch
Cut the center of 4th feed hole from feed hole on the line between last empty pocket and first pocket
with component.
2
1
3
4
1
2
3
4
2 mm feed pitch
4 mm feed pitch
Cutting positions of component tape
New component tape (8 mm width)
Stop position when loading is completed
Stop position when loading is completed
First pickup position
Cutting position: Side of feed hole
Cutting position: Center of feed hole
First pickup position
63201-KLU-30
1. Preparation for loading component tape
2-2
Chapter 2 Handling component tape

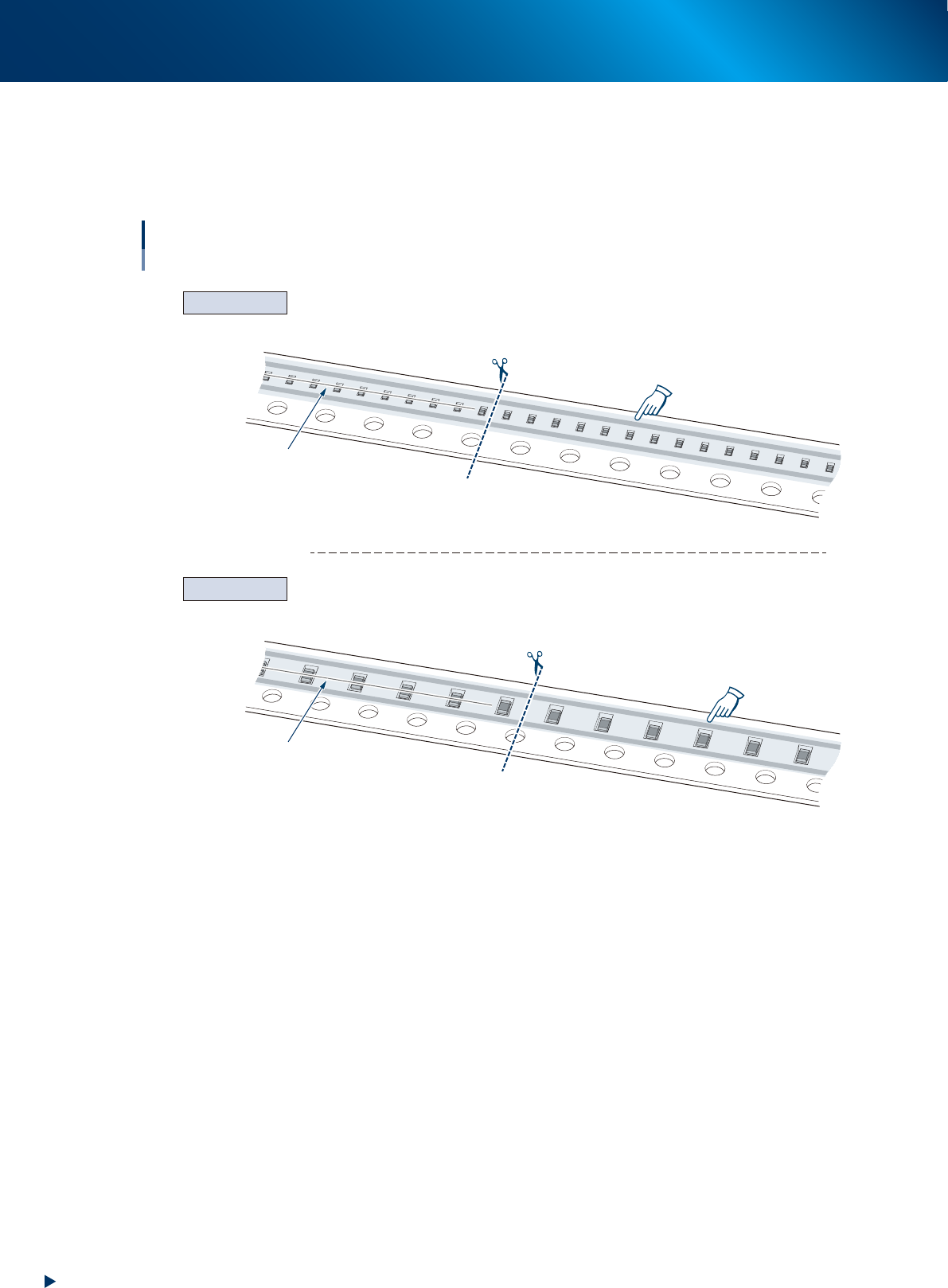

1.1.2 Component tape to be reloaded
Care must be taken when reloading the unloaded component tape used for Auto loading feeder. The portion
where the cover tape has been already cut with blade on tape guide is unavailable. If the cover tape is
delaminated even a little, the component tape is unavailable.
1
2
3
4
1
2
3
4
2 mm feed pitch
4 mm feed pitch
Cover tape already cut with blade on tape guide
Cover tape already cut with blade on tape guide
First pickup position
Cutting position: Side of feed hole
Cutting position: Center of feed hole
First pickup position
Cutting positions of component tape
Component tape to be reloaded
63202-KLU-30
1. Preparation for loading component tape
2-3
Chapter 2 Handling component tape

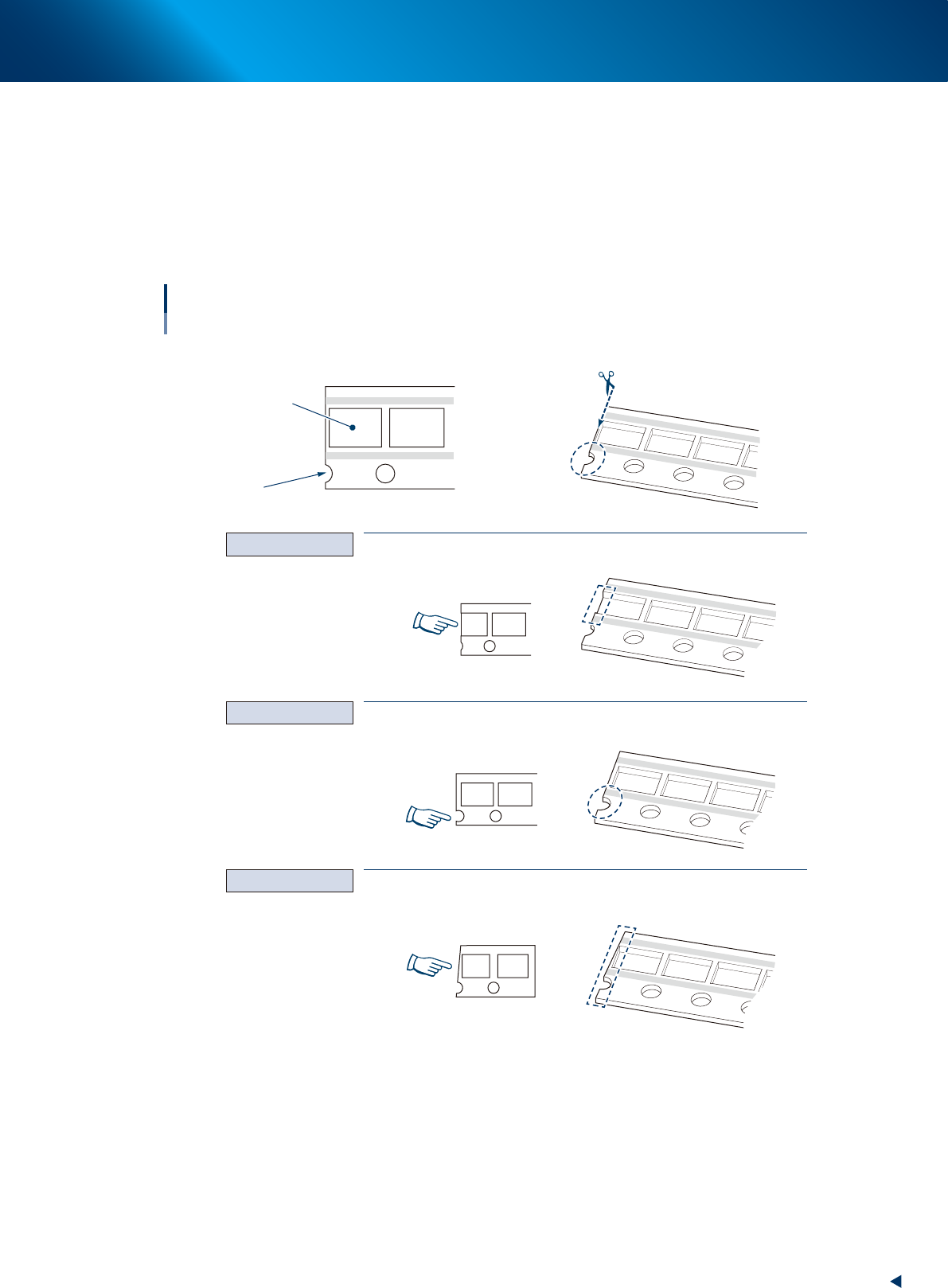

1.1.3 Precautions about cutting position of component tape
• If cutting a component tape at the specified position and the pocket is cut, avoid the pocket to cut
the component tape.
• Do not cut a pocket and a component tape at the position where more than half of feed hole
remains. Otherwise an operation error may occur.
• Do not cut a component tape obliquely.
• Make sure to cut from the pocket side when cutting a paper component tape.
Incorrect example 1
Incorrect example 2
Incorrect example 3
Cutting position of component tape
Precautions
Pocket is cut.
More than half of feed hole remains.
Component tape is cut obliquely.
Correct example
Pocket
Tape cut direction
Feed hole
63203-KLU-30
