1. Preparation before operation 3-6 Chapter 3 Setting up 1.2.2 Updating Auto Loading Feeder Capability list on board editor Auto Loading F eeder Capability list can be updated with the board editor or parts database edit…
1. Preparation before operation
3-5
Chapter 3 Setting up
█
Storage location for Auto Loading Feeder Capability list (setting path)
Auto Loading Feeder Capability list needs to be stored in specific location. Select [Board Explorer] -
[Maintenance] - [Option] - [Option Setting]. Open the "Function" tab and perform the setting.
►
Setting the path
1
Open the option setting screen.
Select the "Function" tab from the [Board Explorer] - [Maintenance] - [Option] - [Option Setting].
2
Check the required items.
Tick the checkbox for "Use Auto Loading Feeder Capability list".
3
Set the path for Auto Loading Feeder Capability list.
The default setting is Common\Opt\ALFPartsList.csv.
Storage location for Auto Loading Feeder Capability list
Setting the path
Default path
64314-KLU-20
4
Save the setting by pressing the [OK] button.
When edited "Auto Loading Feeder Capability list", save and then close it.
c
CAUTION
The applications currently in use (Optimization / Feeder viewer) need to be restarted.
1. Preparation before operation
3-6
Chapter 3 Setting up
1.2.2 Updating Auto Loading Feeder Capability list on board editor
Auto Loading Feeder Capability list can be updated with the board editor or parts database editor. Note that
following limitations apply to updating.
█
Limitations
• The guide size is not supported and it appears blank.
• The component name registered on Auto Loading Feeder Capability list cannot be deleted.
• The setting of feeder type (size) capability is not supported.
• The function to check the registered information on Auto Loading Feeder Capability list is not
provided.
• All information on Auto Loading Feeder Capability list cannot be checked.
n
NOTE
Auto loading feeder capability of components on opened board (or component database) can be checked.
█
Updating on component screen of board editor
1
Display the component list.
Select "Parts" on the board editor.
2
Display the context menu.
1. Select the row(s) of component(s) to be set.
2. Right-click the mouse to display the context menu.
3
Set "Register to Auto Loading Feeder Capability List (A)".
Select "Available (A)" or "Unusable (U)" from the sub menu for "Register to Auto Loading Feeder
Capability List (A)".

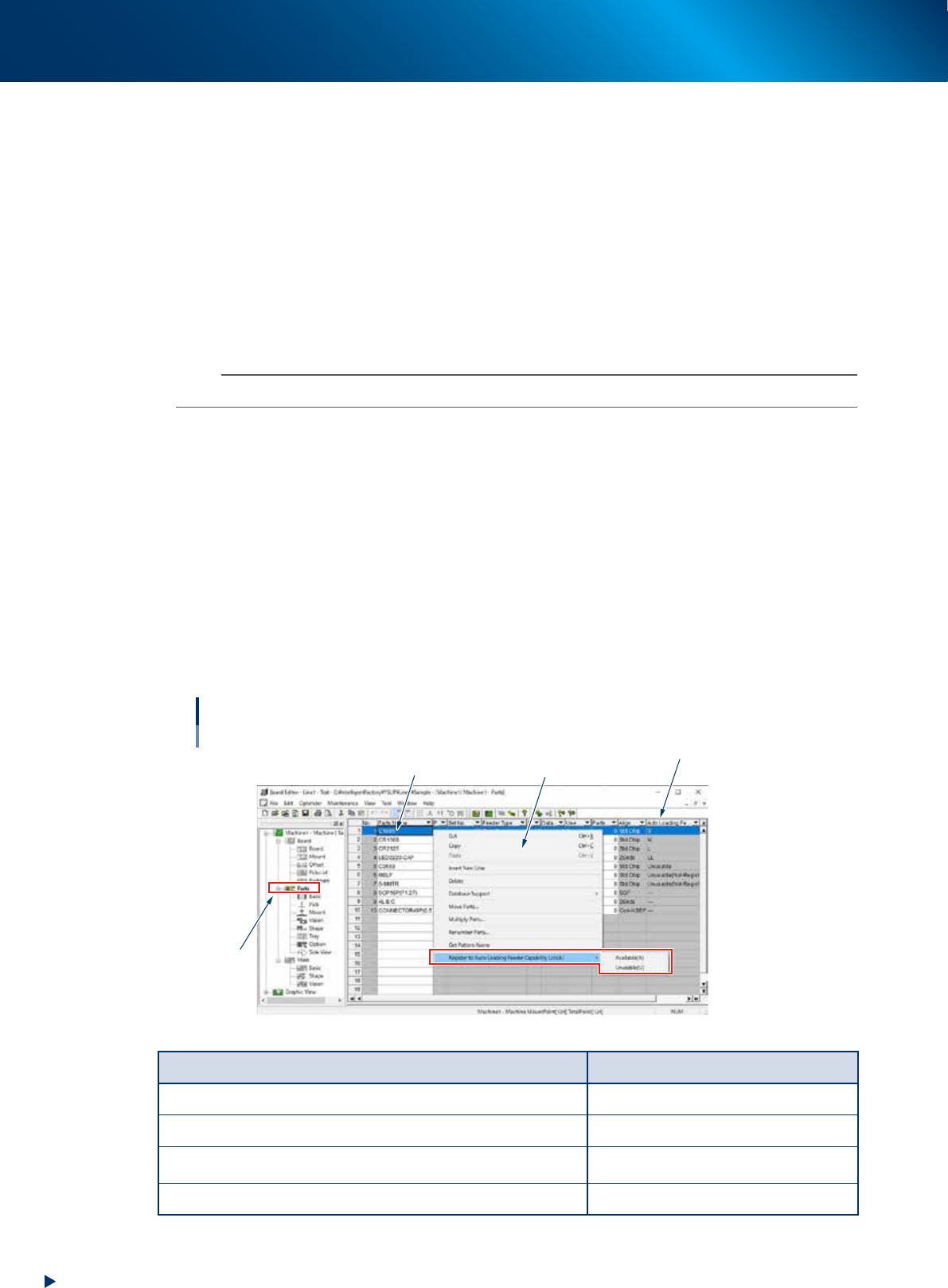

Updating Auto loading feeder capability list
Board Editor
Context menu
Select component to be set
Auto Loading Feeder column
1
64318-KLU-30
Condition Display on Auto Loading Feeder
Available component for Auto Loading Feeder 2S, S, M, L, or LL
Feeder type other than Auto Loading Feeder ---
Component that "False" is displayed on Auto Loading Feeder column and
not registered
Unusable (Not-Registered)
Component registered as "FALSE" on Auto Loading Feeder column Unusable
1. Preparation before operation
3-7
Chapter 3 Setting up
█
Updating on component screen of parts database editor
n
NOTE
The following setting is available when editing customer data base only. Therefore, the setting is not available when started
from YAMAHA database. The all components including No. 1001 or later apply to this condition.
1
Display the component list.
1. Open "Parts Database Editor" screen by selecting the [Parts Database Editor] - [Customer
Database] from the [File] menu on the [Board Editor] screen.
2. Click the "Open folder" icon on the tool bar and select [DATABASE] file, then press the [Select]
button. The component list of component database appears.
TIP
The [Parts Database Editor] screen can be opened from the [Data] menu on [Board Exproler] screen.
2
Display the context menu.
1. Select the row(s) of component(s) to be set.
2. Right-click the mouse to display the context menu.
3
Set "Register to Auto Loading Feeder Capability List (A)".
Select "Available (A)" or "Unusable (U)" from the sub menu of "Register to Auto Loading Feeder
Capability List (A)".

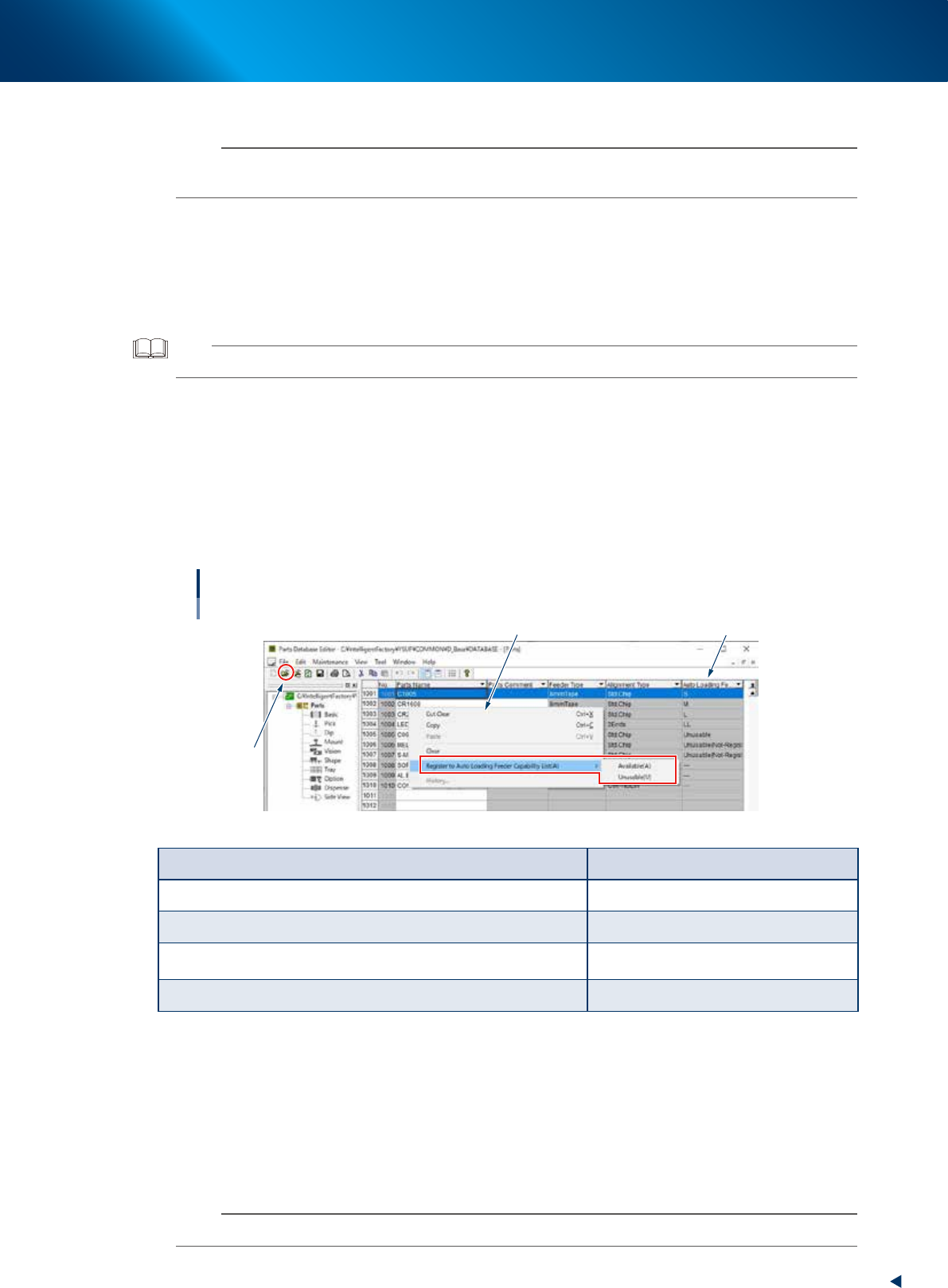

Updating Auto Loading Feeder Capability List
Parts database editor
Context menu Auto Loading Feeder column
1
64319-KLU-40
Condition Display on Auto Loading Feeder
Available component for Auto Loading Feeder 2S, S, M, L, or LL
Feeder type not compatible with Auto Loading Feeder ---
Component that "False" is displayed on Auto Loading Feeder column and
not registered
Unusable (Not-Registered)
Component registered as "FALSE" on Auto Loading Feeder column Unusable
█
Option setting
The followings are conditions to display "Register to Auto Loading Feeder Capability List (A)" on the
context menu previously described.
• The checkbox for "Use Auto Loading Feeder Capability List" on [Option Setting] - [Function] is
ticked.
• The board editor is edited offline.
• The customer database is edited when editing the parts database editor.
n
NOTE
When editing editor on mounter, the option setting is always hidden as the setting is not provided.
