1. Preparation for loading component tape
2-5
Chapter 2 Handling component tape
3. Insert a component tape to the pin position of subjected pitch, while aligning the 4th feed hole
from cutting position with the tape set line as illustrated below.
123
4
Tape set position for 2mm pitch component tape
Tape reel side
Tape set line
*Pocket with component
may align with line.
Cutting position
4th feed hole from cutting position
63210-KLU-10
123
4
Tape set position for 4mm pitch component tape
Tape reel side
Tape set line
*Pocket with component
may align with line.
Cutting position
4th feed hole from cutting position
63211-KLU-10
3
Cut the component tape.
Grip the handles of tape cut jig to cut the component tape.
4
Check the cut position of component tape.
See "1.1.3 Precautions about cutting position of component tape" to check that the component tape
is cut correctly.
1. Preparation for loading component tape
2-6
Chapter 2 Handling component tape
1.2 Folding top of component tape
1.2.1 Folding top of component tape
Use the right side of tape leveler to fold the top of component tape.
1
Insert the component tape to be folded into the end of tape leveler.
1. Face up the cover tape side and insert the component tape into tape leveler.
2. Check that the component tape is inserted into the end of tape leveler from the window to
check folding position.
Inserting component tape
Checking insertion position
Inserted into end
Correct
Incorrect
Not inserted into end
Tape leveler
Face up cover tape side.
Window to check
folding position
63205-KLU-40
2
Fold the top of component tape.
Grip the top and bottom of tape leveler to fold the top of component tape.
Fold component tape
Component tape
Tape leveler
63206-KLU-40
3
Check the top of component tape.
Check that the top of component tape is folded as shown in the figure below.
Check top of component tape
Component pocket
Folding position
63207-KLU-40
2. Loading/Unloading component tape
2-7
Chapter 2 Handling component tape
2. Loading/Unloading component tape
The following describes the procedure for loading the component tape to Auto loading feeder after
cutting and folding top of the component tape. When an optional software (IT Option) is installed, the
loading procedure varies a little.
2.1 Loading component tape
2.1.1 Standard type
This section describes about the procedure for standard type machine without IT Option software.
1
Set a component tape.
1. Open the "Production" tab on monitor screen, or the "Setup assignment" screen.
2. Set a tape reel to the preset holder at the position same as confirmed above.
2
Pull the loading unit forward.
Keep pressing down the tape clamp lever and pull the loading unit forward. Do not pull the
component tape and the loading unit together.
TIP
When the component tape is set newly, skip step 3 and proceed to step 4.
3
Move down the component tape in operation.
1. The loading unit opens by releasing finger from the tape clamp lever.
2. Move down the component tape in operation.

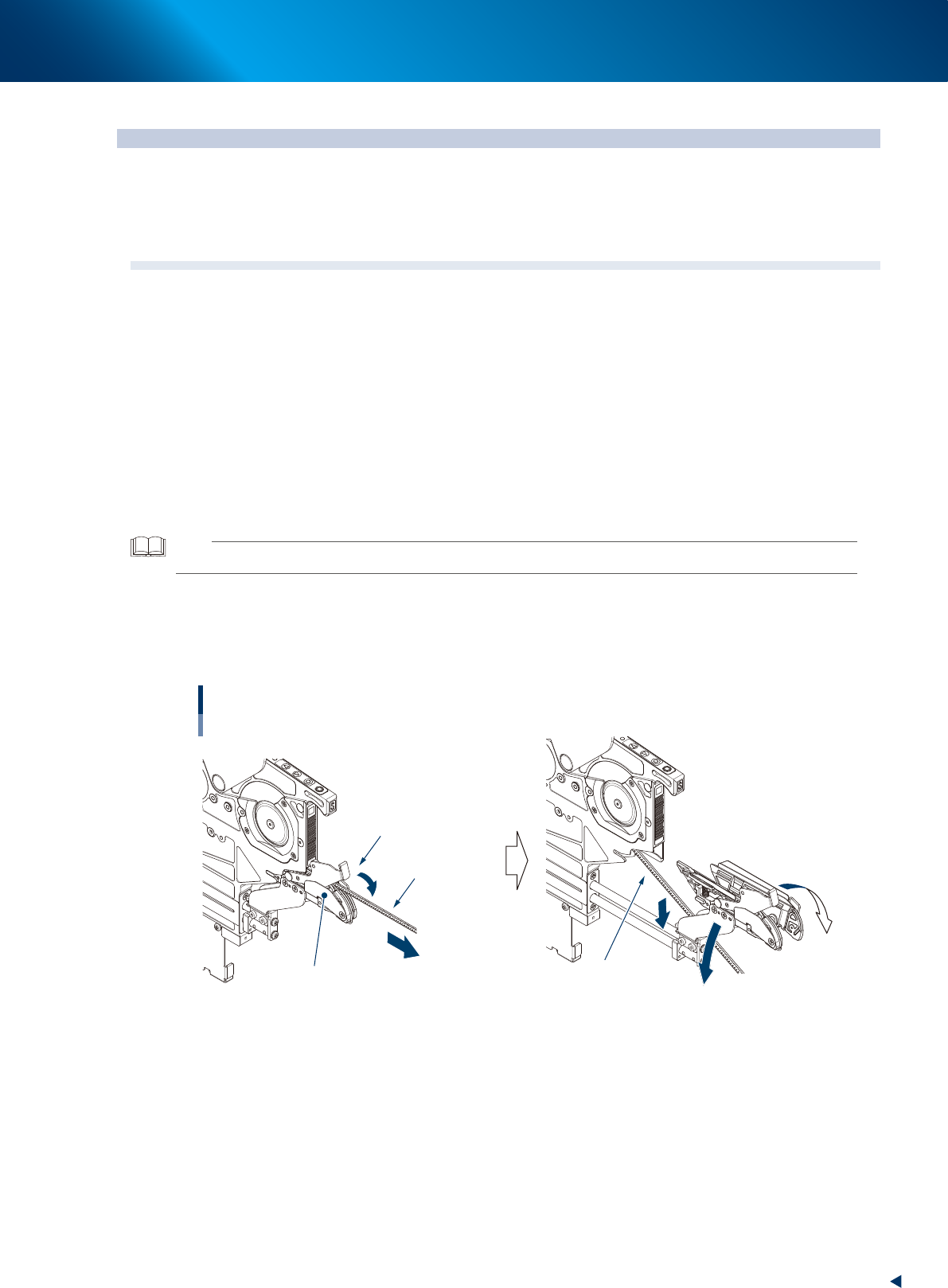

Pulling loading unit forward
Moving down component tape in operation
Release finger from
tape clamp lever, then the clamp unit
opens to right and left.
Tape clamp lever
Loading unit
Component tape
in operation
Component tape
in operation
63231-KLU-40
