1. Overview
1-5
Chapter 1 Overview
█
Precautions when setting feeder
• Make sure to clean the feeder bank surface before setting feeders.
• If tape remains on slope, remove them. It is recommended to clean the inside of slope periodically
(once a week).
• When attaching a feeder exchange carriage with feeders to a machine, check that no component or
tool remains on the guide rail cover.
c
CAUTION
If an Auto Loading Feeder is set on a feeder bank with foreign objects, feeder may be damaged and cause pickup error.
Make sure to prevent dust or dirt from entering through connection of connector when cleaning.
n
NOTE
Filling the empty slots with dummy feeders or other feeders is always recommended to prevent inserting the hands when
the auto loading feeders are set with intervals.
Peripheral of feeder bank
Connection of
connector
Guide rail cover
Tapes remaining on slope
63003-KLU-30
c
CAUTION
When setting feeders between feeders already set on left and right, do not set feeders by moving feeders left and right
aside. If not, the set positions are deformed and results in pickup error.
1. Overview
1-6
Chapter 1 Overview
█
Handling feeder

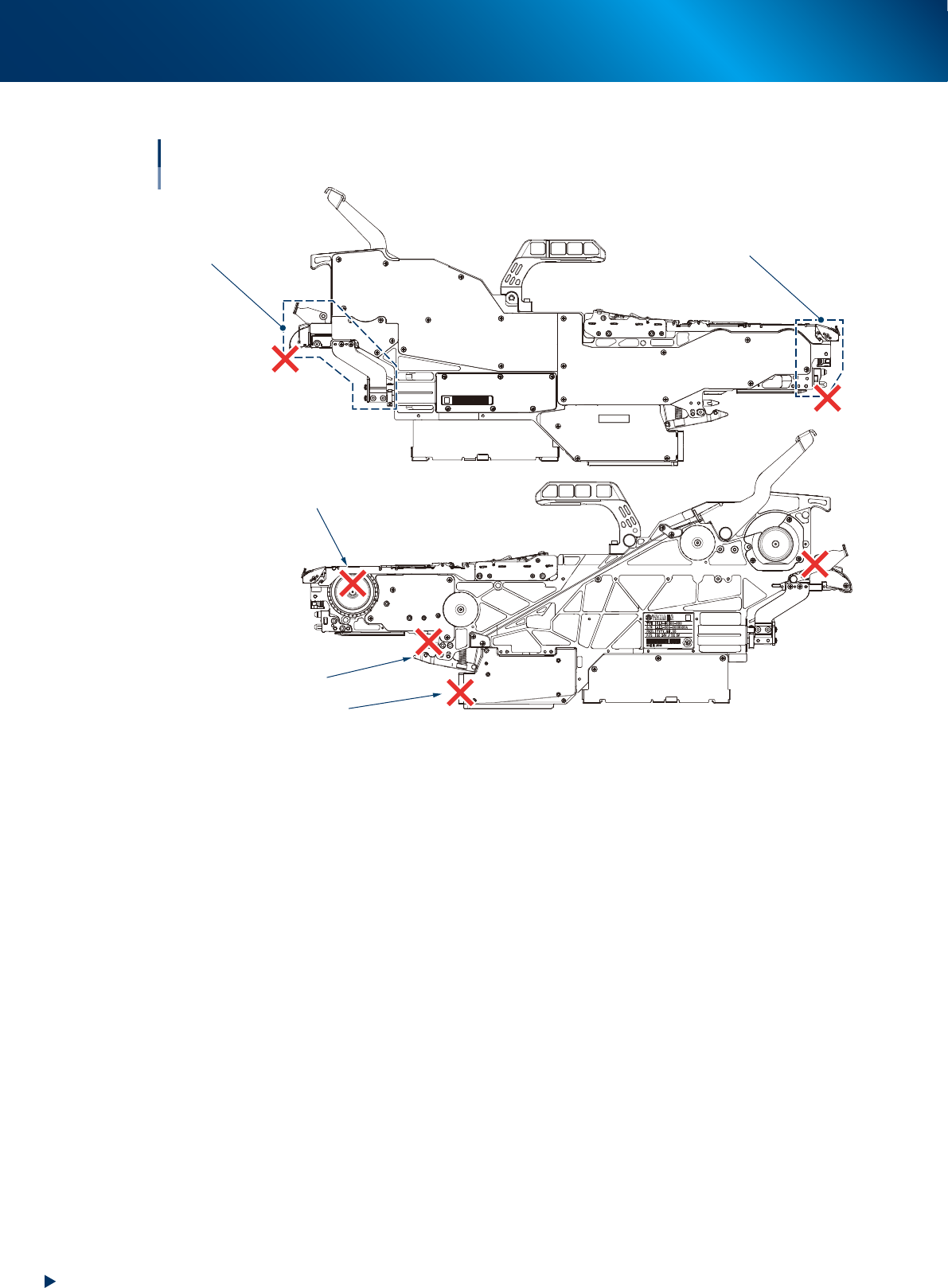

Cautions when holding feeder
Sprocket
Connector
Front block
Loading unit
Clamp lever
63005-KLU-30
►
Cautions when handling feeder
• Do not hold a clamp lever. Doing so may pinch hand and cause injury.
• Do not hold a connector and sprocket. The feeder may be damaged.
• Do not apply strong impacts to a front block and loading unit enclosed by dashed lines above.
1. Overview
1-7
Chapter 1 Overview
█

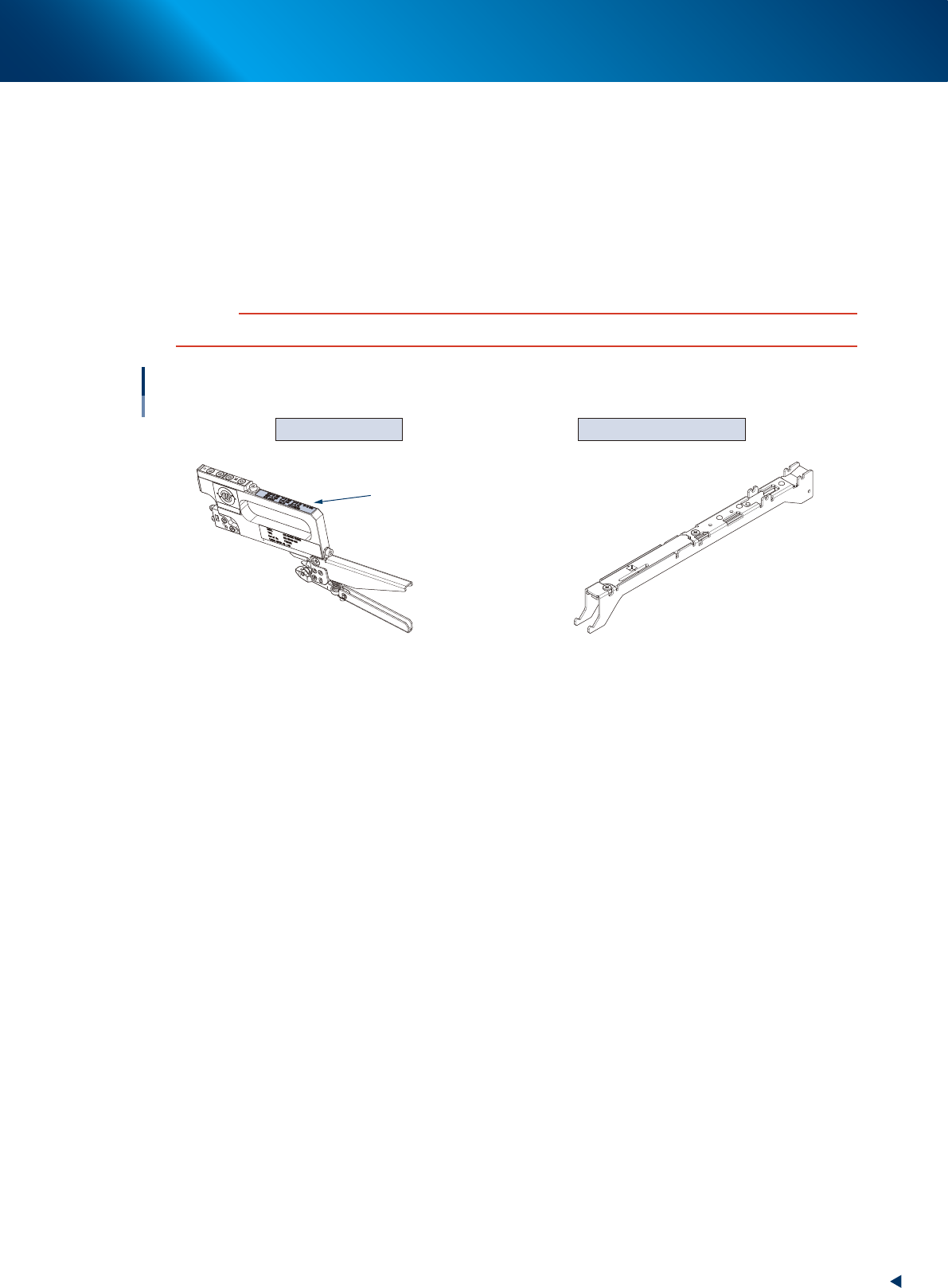

Adjustment jigs
►
Master feeder
Master feeder is a jig to adjust a pickup position of feeder. When 1 year or longer has elapsed from
the date marked on the calibration label, it is recommended to calibrate the master feeder.
►
Tape guide for tune-up station (dedicated for Auto loading feeder)
When using tune-up station, replace the normal tape guide assembly with the tape guide for tune-up
station. Reattach the original tape guide assembly after adjusting with tune-up station. See the
separate manual "Tune-Up Station" for details.
c
CAUTION
The master tape may be damaged if using tune-up station without changing to tape guide for tune-up station.
Master feeder/Tape guide for tune-up station
Calibration label
（Dedicated for Auto loading feeder）
Master feeder Tape guide for tune-up station
