2. Component tape reference specifications
5-3
Chapter 5 Specifications
2. Component tape reference specifications

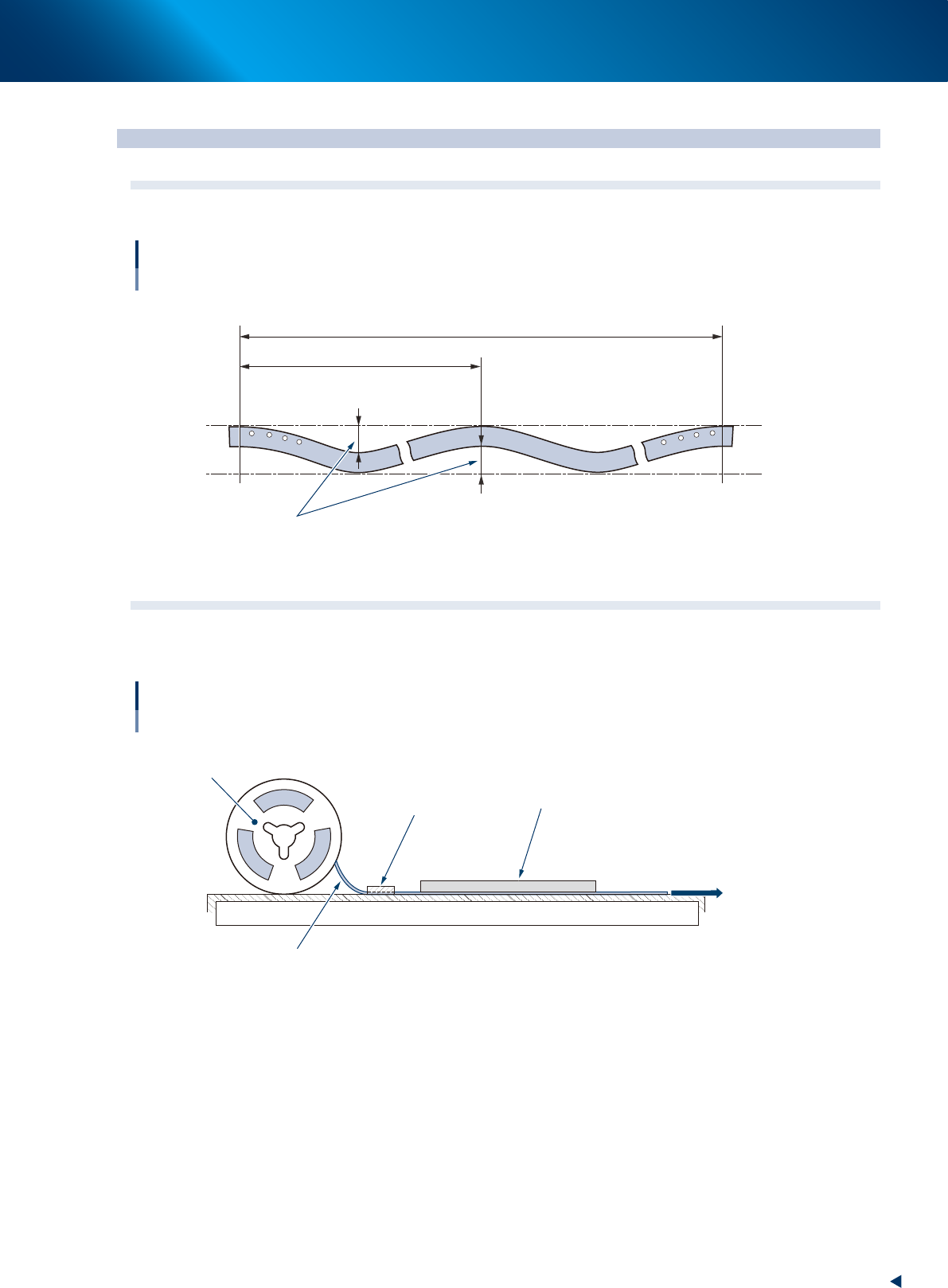

2.1 Limitation of meandering
The meandering must be 1 mm or less per 100 mm within the span of 250 mm.
Limitation of component tape meandering
100
1 or less
250
Unit: mm
63505-KLU-30
2.2 Tensile testing
Fix one side of component tape. Pull the component tape applying a force of 1 N (102 gf). Place a
transparent plastic board with scale that is also a weight to measure the component tape.
Tensile testing
Reel
Apply a force
of 1N.
1N: 102 gf
Component tape
Fixing point
Transparent plastic board with scale
that is also a weight
63506-KLU-30
2. Component tape reference specifications
5-4
Chapter 5 Specifications

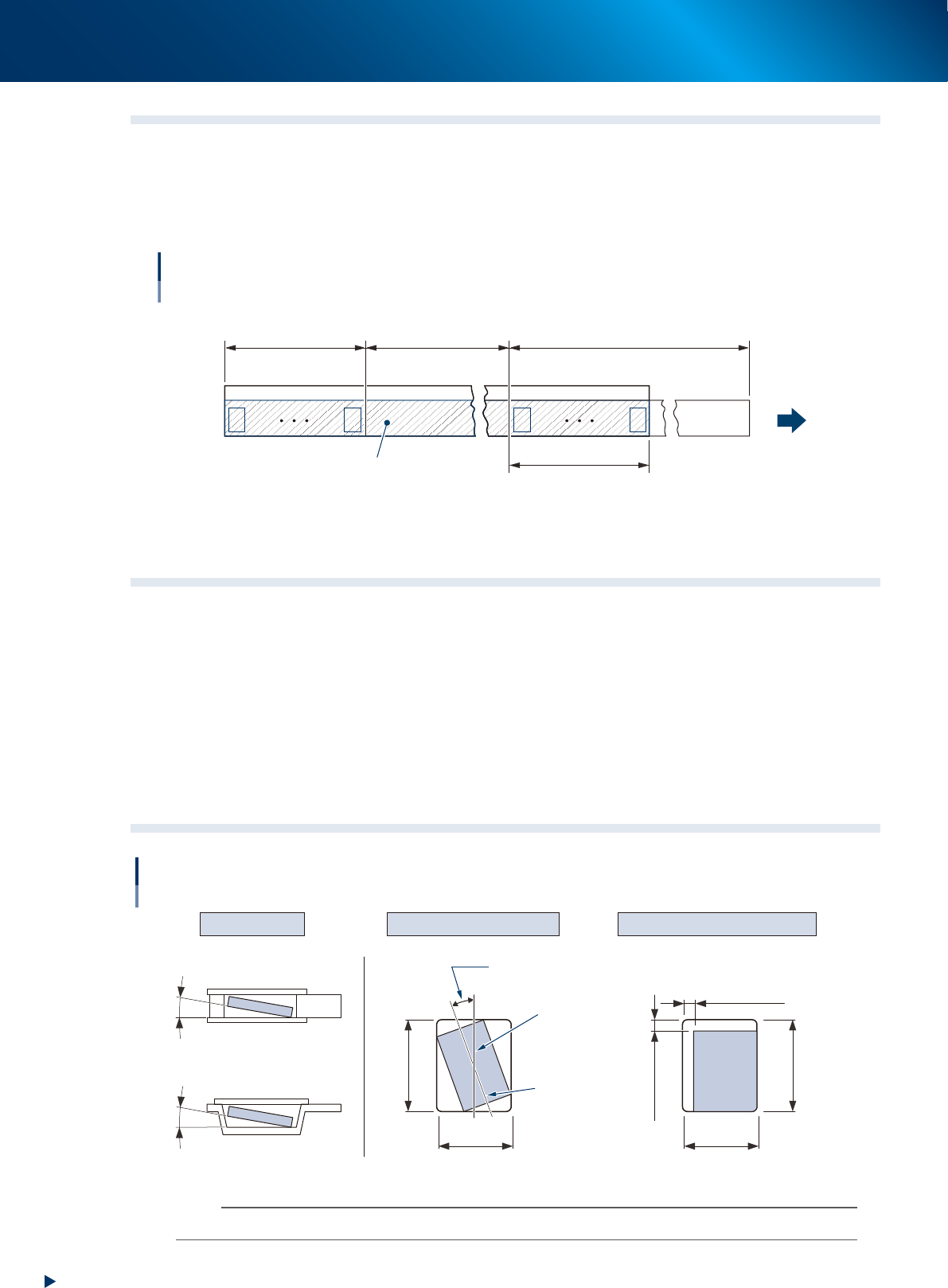

2.3 Top of component tape
►
Length of component tape of leading section
It must be 400 mm or longer including carrier tape with empty square pockets.
►
Square pockets
Square pockets must be sealed with cover tape (100 mm or longer).
Top of component tape
End of component tape
(160 mm or longer) Components
Top of component tape
(300 mm or longer)
Square pockets
(sealed 100 mm or longer)
Pull-out
direction
Cover tape
63507-KLU-30
2.4 End of component tape
►
Length of component tape of ending section
It must be longer than 160 mm but shorter than 350 mm including carrier tape with empty square
pockets.
►
Empty square pockets
Empty square pockets must be sealed with cover tape.
►
End of component tape
It must be detached from the hub for reel.
2.5 Component position in pocket
A0 A0
B0
B0
Tilt Rotation in horizontal direction Offset in vertical/horizontal direction
Component position in pocket
Center line of
pocket
Center line of
component
20° or less (Tape width: 8 mm)
10° or less
10° or less
0.5 mm or less
0.5 mm or less
63508-KLU-30
n
NOTE
Make sure to keep appropriate clearance around component to pick up component smoothly.
2. Component tape reference specifications
5-5
Chapter 5 Specifications
2.6 Tensile strengths of carrier tape/cover tape
►
Carrier tape
Endures applied force of 10 N (102 gf) when pulling out component tape.
►
Cover tape
Endures applied force of 10 N (102 gf) when pulling out component tape.

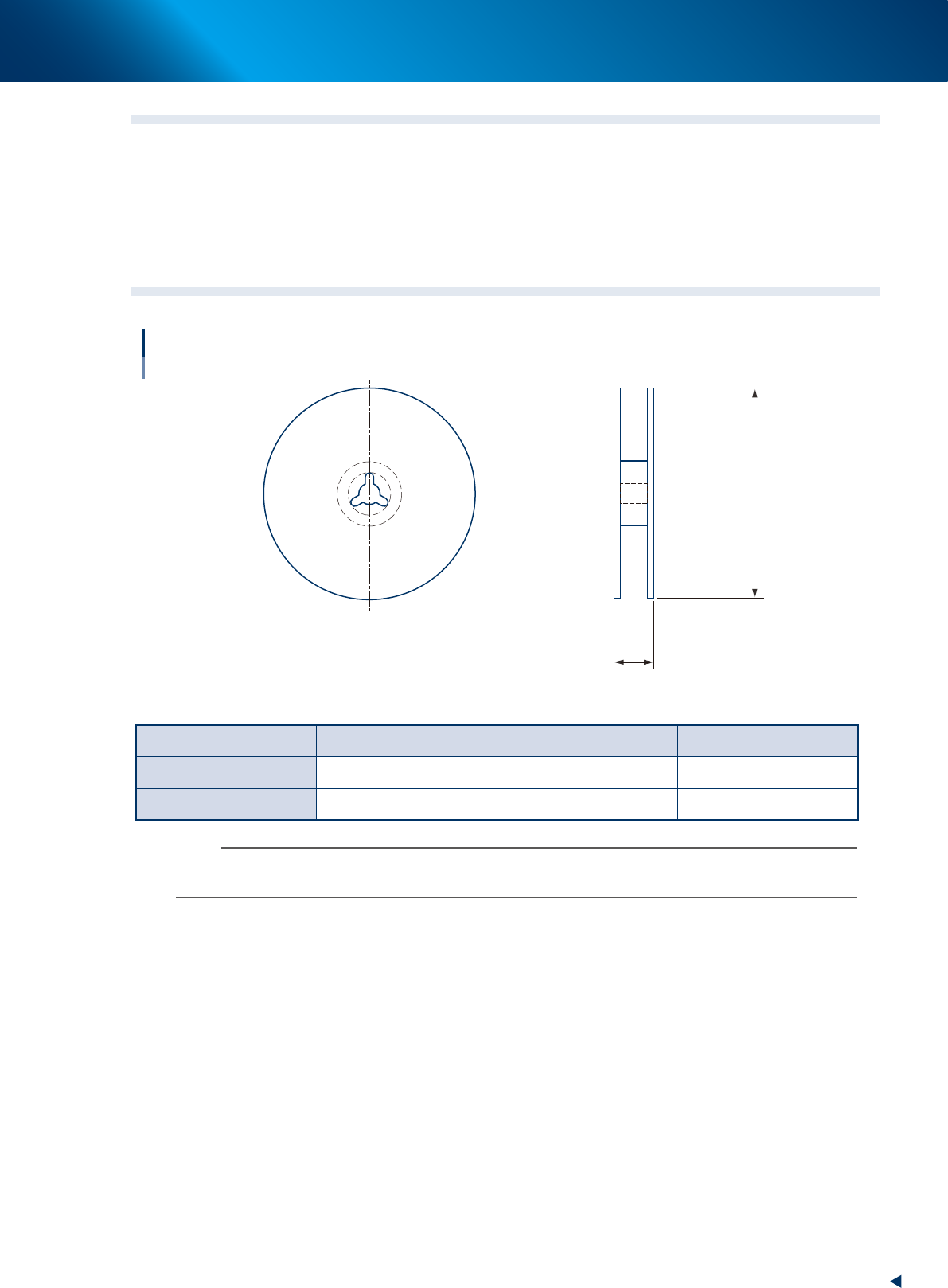

2.7 Size of 8mm tape reel
Sizes of 8mm tape reel
Reel dimension
Reel width
63511-KLU-30
Tape width Reel dimension Reel width
With preset holder 8 mm
φ
178 mm or less 13.6 mm or narrower
Without preset holder 8 mm
φ
382 mm or less 14.4 mm or narrower
n
NOTE
The available size varies depending on with/without preset holder.
The size "14.4 mm or less" of without preset holder is provided by JIS C 0806-3 / IEC60286-3 standards.
