2. Preaparation for operation 3-22 Chapter 3 Setting up 5 Check the componen t tape se tting. The component t ape is set corre ctly if the follow ings are applied. 1. The yellow LED lights up for 1 second if the componen…
2. Preaparation for operation
3-21
Chapter 3 Setting up
3. Close the clamp unit and move the loading unit just before the end to make it not open.
4. While pressing the tape clamp lever, insert the component tape to the loading unit, then insert
the top of component tape to the set area as shown in the figure below.
Setting component tape
Loading unit
Component tape
to be added
Component tape in operation
Tape clamp lever
Keep pressing down
tape clamp lever
Tape set area
Clamp unit
Set top of component
tape in this area
63305-KLU-50
5. Insert the loading unit into feeder body and release the tape clamp lever.
Inserting loading unit
Loading unit
Tape clamp lever
63332-KLU-00
n
NOTE
A loading error may occur unless the loading unit is inserted into the end.
2. Preaparation for operation
3-22
Chapter 3 Setting up
5
Check the component tape setting.
The component tape is set correctly if the followings are applied.
1. The yellow LED lights up for 1 second if the component tape insertion is detected.
2. The yellow and green LEDs flash simultaneously for 4 seconds.
3. The green LED lights up after completing the component tape setting.
Yellow and green LEDs flash
simultaneously for 4 sec.
Yellow LED lights up for 1 sec.
Green LED lights up.
Completing
Completing component tape setting
Without IT Option
63306-KLU-30
6
Start the operation.
When the reel was newly set.
Pressing [START] button loads component tape, set in the loading unit, to pickup position and starts
operation.
When the reel was preset.
If the component tape in operation becomes empty, other component tape set in the loading unit
loads to pickup position and supplying component is continued.
2. Preaparation for operation
3-23
Chapter 3 Setting up
2.2.2 Setting up component tape with IT Option

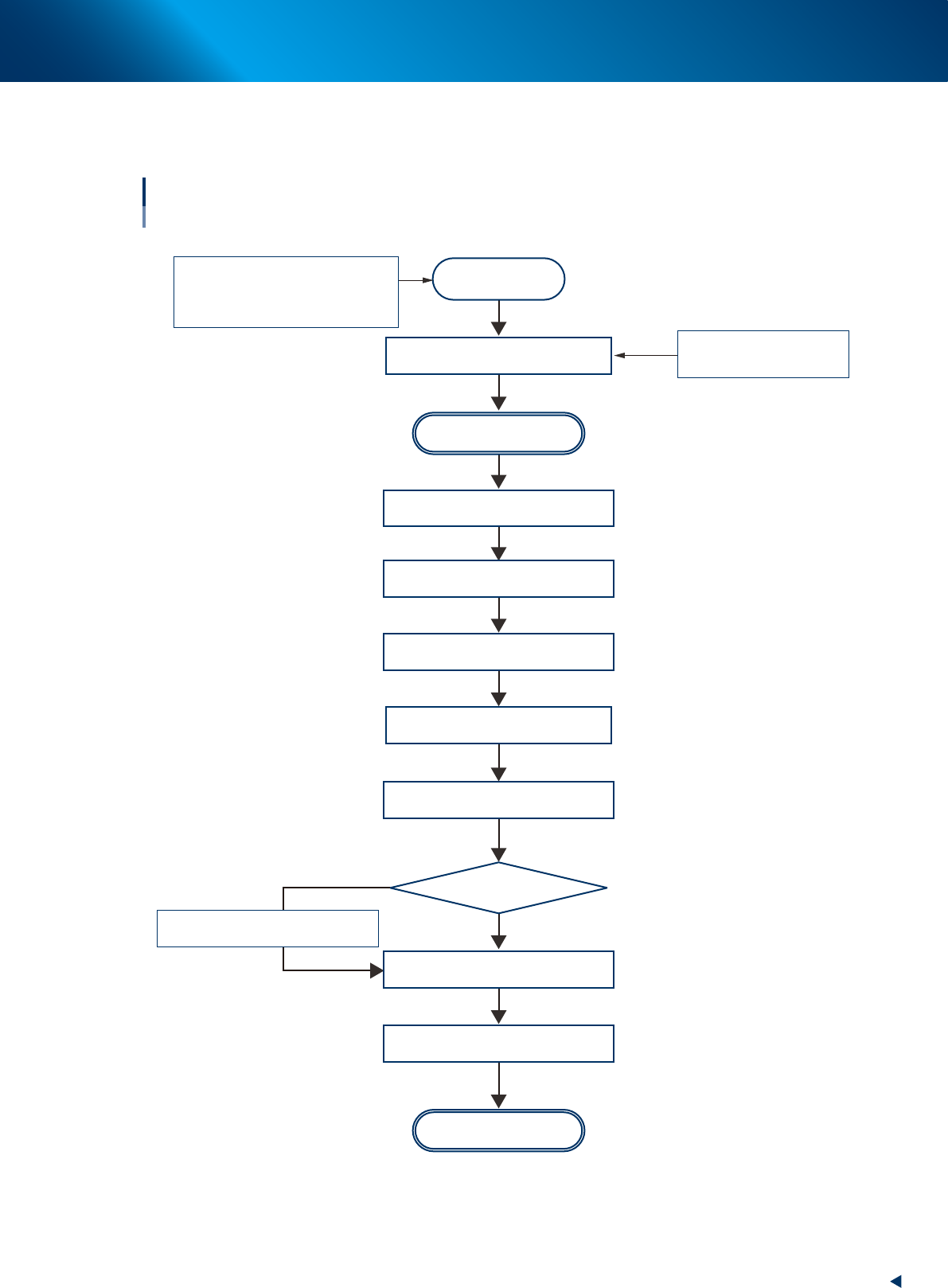

The following describes the flowchart of setting component tape with IT Option.
Start operation
Flowchart of setting up component tape
With IT Option
LEDs flash continuously
Preparation
Scan component ID
No
Yes
Newly set ?
Set component tape to be added
to loading unit
Check setting status
Cut/Fold top of compontnent tape
Start setting
Prepare reel
On [Monitor] - [Production] screen
新テープを
Set component tape newly
Auto Loading Feeder capability list
Auto Loading Feeder Optimizer
Setup Assignment
Prepare Auto Loading Feeder
Set Auto Loading Feeder
Check [Monitor] - [Production]
screen or setup list
Set reel
Set component tape newly or
supply component tape
Set component tape newly
Set preset holder
Move down component tape in operation
63321-KLU-30
