2. Preaparation for operation 3-25 Chapter 3 Setting up 3 Scan the component tape (reel) ID. Scan the ID of compon ent tape (reel) to be added with bar code reade r . Scanning component tape (reel) ID Set position is spe…
2. Preaparation for operation
3-24
Chapter 3 Setting up
█
Procedure for setting up component tape with IT Option
1
Prepare component tape to be set.
1. Select the [Monitor] - [Production] screen.
2. Check the component name and set position in "Operating Navigation" box, and tape guide
type in the Request column of Parts list.
Operating Navigation box
Tape guide type
Parts name,
Feeder set position
Auto Loading Feeder
is not used.
Request size
LL
L
M
S
2S
-
64301-KLU-40
2
Cutting/Folding top of component tape.
Cutting/Folding top of component tape
Cut from pocket side.
Check folded position.
Tape leveler
Insert component tape and
grip top and bottom of tape leveler.
63302-KLU-40
n
NOTE
See "1.2 Folding top of component tape"in chapter 2 for more detail.
c
CAUTION
Make sure to cut and fold the top of component tape correctly. Otherwise component tape may not be loaded.
2. Preaparation for operation
3-25
Chapter 3 Setting up
3
Scan the component tape (reel) ID.
Scan the ID of component tape (reel) to be added with bar code reader.
Scanning component tape (reel) ID
Set position is specified
by this ID.
64308-KLU-30
4
Set Auto loading feeder.
The reel scanned in Step 3 is specified and LEDs on feeder flash continuously.
1. Set Auto loading feeder to the feeder set position where LEDs flash continuously.
2. Set preset holder to feeder exchange carriage or reel holder for feeder bank.
TIP
See Step3 of "2.2.1 Setting up component tape without IT Option" for preset holder setting procedure.
5
Set a tape reel, to be added newly or to be supplied, to preset holder.
6
Set the component tape to the loading unit.
1. While pressing down the tape clamp lever and pull the loading unit to front end.
2. (If the 1st reel spplies components) the clamp unit opens left and right by releasing the tape
clamp lever, the component tape in operation is fallen down below the loading unit.
Pulling out loading unit
Moving down the component tape in operation
Clamp unit opens
by releasing tape clamp lever
Tape clamp lever
Loading unit
Tape component
in operation
Tape component
in operation
63331-KLU-00
2. Preaparation for operation
3-26
Chapter 3 Setting up

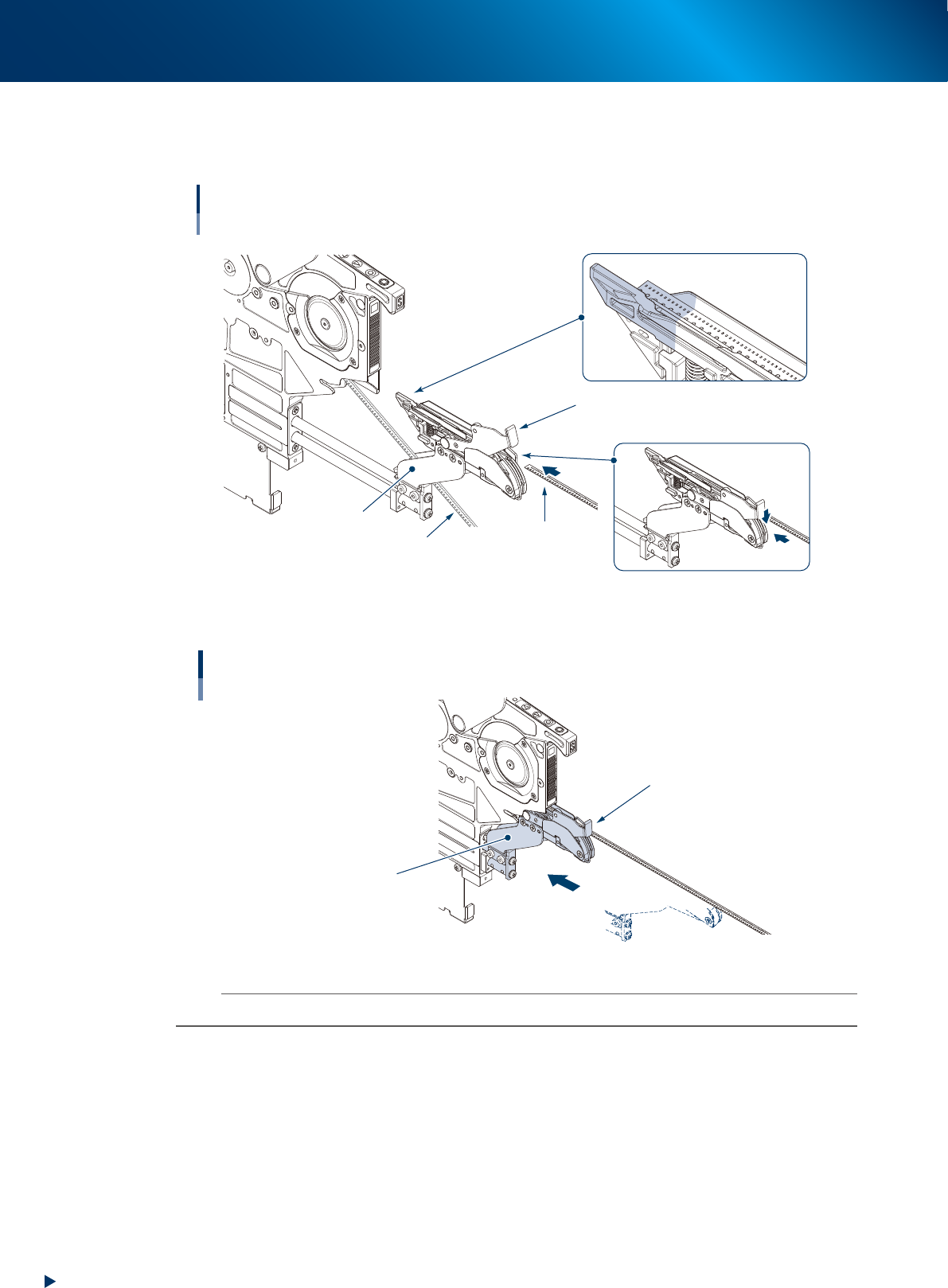

3. Close the clamp unit and move the loading unit just before the end to make it not open.
4. While pressing the tape clamp lever, insert the component tape to the loading unit, then insert
the top of component tape to the set area as shown in the figure below.
Setting component tape
Loading unit
Component tape
to be added
Component tape in operation
Tape clamp lever
Keep pressing down
tape clamp lever
Tape set area
Clamp unit
Set top of component
tape in this area
63305-KLU-50
5. Insert the loading unit into feeder body and release the tape clamp lever.
Inserting loading unit
Loading unit
Tape clamp lever
63332-KLU-00
n
NOTE
A loading error may occur unless the loading unit is inserted into the end.
