2. Preaparation for operation
3-28
Chapter 3 Setting up
2.3 Other functions
The following functions are available with the optional software (IT Option).
█
Presettable indication
When there is "presettable" and it can be performed, it is indicated on [Monitor] - [Production] screen
as shown below.
• * (Asterisk) appears on the "presettable" column.
• The magenta frame appears on feeder placement graphic.
Presettable
“Presettable” column
Magenta frame
64309-KLU-30
█
Unauthorized Insert Detection
The insertion is detected in all statuses (Operation/Reset/Emergency Stop). The unverified component
tape is not loaded automatically.
• When Auto loading feeder is set to a machine and setting component tape to Auto loading feeder
that has no parts set request, it is regarded as an illegal parts insertion and the warning appears.
• When the illegal parts insertion is detected, the operation call is given. This can be cleared by
checking the error and detach the relevant component tape.
• When setting the detached Auto loading feeder to the correct position, it is required to verify the
component tape and the feeder.
Insert detection
64310-KLU-30
3. Operation panel
3-29
Chapter 3 Setting up
3. Operation panel
3.1 Buttons on operation panel and LEDs
LED1
LED2
LED3
FEED
BACK
FUNC
LOAD
LED1
LED2
LED3
FEED
BACK
FUNC
LOAD
Buttons on operation panel and LEDs
LEDs
Operation buttons
[LOAD] button
63310-KLU-30
3.1.1 LED lighting patterns/Status
The lighting status of the LED display on the operation panel is shown below. "Setup change" and "Out of
components" of feeder are indicated.
Status Detail
LED
LED1 (Red) LED2 (Yellow) LED3 (Green)
Setup change
No setup (Removal command)
Light up
Wrong setup
Light up
Setup position indication
Continuous flash
Normal component set reliability NG*
Light up
Setup completion set position
Light up
Out of
components
Stop due to
remaining
amount
Stop due to remaining amount
(out of components)
Flash
Changing to alternative
components
Flash
Retry over
Pickup/recognition error stop
Light up
Changing to alternative
components
Light up
Component
shortage
warning
Component shortage warning
Flash
Light up
Preset
Flash
Feeder error
Flash
(High-speed)
Flash
(High-speed)
*"Normal component set reliability NG" means the condition where normal component is set but cannot be used as the setup check is not performed yet.
3. Operation panel
3-30
Chapter 3 Setting up
3.1.2 Buttons on operation panel
►
The [FEED] button
The [FEED] button feeds component tape to the pickup position. The continuous feed is available by
keep pressing the [FEED] button.
►
The [BACK] button
The [BACK] button is used with the [FUNC] button.
►
The [FUNC] button
The [FUNC] button is used with the [FEED] button or [BACK] button.
[FUNC]+[FEED]: Ejects component tape forcibly from the front side of feeder.
[FUNC]+[BACK]: Unloads component tape to the rear of feeder.
Feeder operation/Sensor detection status
Button operation Feeder operation
Tape detection status (sensor)
1 (Top) 2 (Center) 3 (Entrance)
[FEED]: Press once Feed 1 pitch (2 mm). No care No care No care
[LOAD]: Press once Feed component tape to pickup position OFF OFF ON
[FUNC]+[FEED]: Press once Eject component tape from front. ON No care No care
[FUNC]+[BACK]: Press once Eject component tape from rear. ON ON OFF
►
[LOAD] button
Feeds the preset component tape to the pickup position.
n
NOTE
The button operations above are not activated during automatic operation.

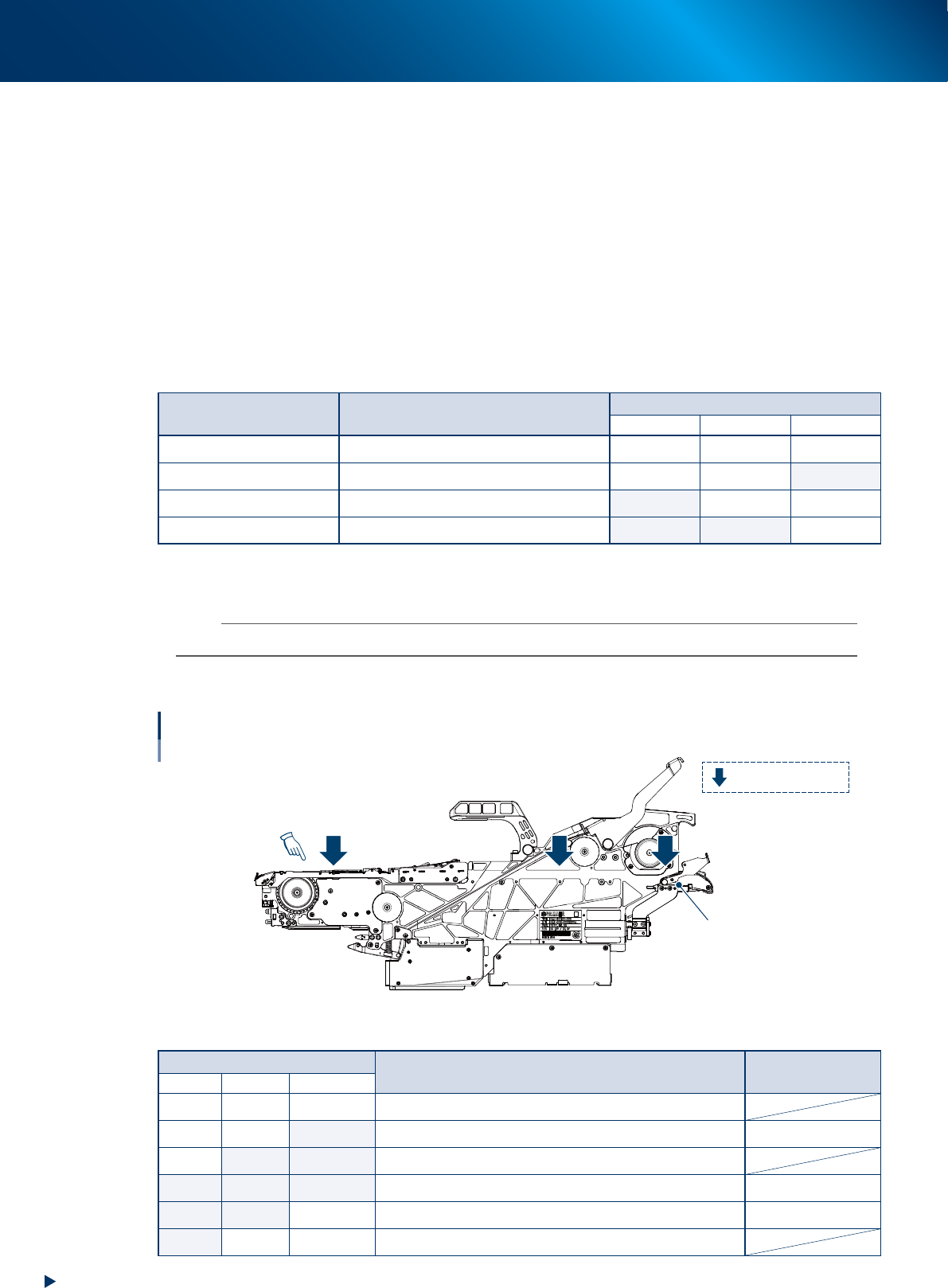

3.1.3 Sensors inside of the feeder body
1
2 3
Position of tape detection sensor
: Tape detection sensor
Loading unit
Pickup position
63311-KLU-40
Sensor detection status/Available operation
Sensor No.
Status Available operation
1 (Top) 2 (Center) 3 (Entrance)
OFF OFF OFF All sensors do not detect component tape.
OFF OFF ON Sensor 3 detects component tape to be added. Load
OFF ON ON Component tape to be added is being loaded to pick up position.
ON ON ON All sensors detect component tape. Pickup
ON ON OFF Sensor 1 and 2 detect component tape. Pickup/Unload
ON OFF No care Sensor 1 only detects component tape (end of tape component).
