1. Preparation before operation 3-1 Chapter 3 Setting up 1. Preparation before operation 1.1 Using Auto loading feeder Auto loading feeder itself can be used b y performing the Standard setting illustrated below . Howeve…
1. Preparation before operation
3-1
Chapter 3 Setting up
1. Preparation before operation
1.1 Using Auto loading feeder
Auto loading feeder itself can be used by performing the Standard setting illustrated below. However, the
Optional software should be installed to use the functions described below.
n
NOTE
Auto loading feeder available functions for operation and setup vary depending on with or without optional software.
█
Optional softwares
The optional softwares are provided in almost two categories.
• P-Tool (Y.FacT) / YSUP-PM : supporting the data preparation in office as such the
optimization of auto loading feeder
• IT Option : helping the operator's work at production line
See the following for each functions.
►
Place and software
Place Function Software
Office/Working area
The definition of Auto loading feeder usable part and guide type
(Auto Loading Feeder Capability list)
Y.FacT (P-TOOL)
YSUP-PM
Auto loading feeder Optimizer
Setup area Setup Assignment
Production line
Required Tape guide types
Standard
Available feeder verification
Presettable indication
IT Option
Components setup navigation
Tape guide type verification
Tape dropout detection
Setup verification &
Mis-insertion detection
TIP
For example, the following IT System settings are required to use the Auto loading feeder with IT Option.
1. Start system configuration of "YAMAHA IT-System" at Start menu.
2. Select "Common for Offline/Online setup" for "Common for all lines".
3. Open the "Operational setting".
4. Set "Use" for the "ALF using setting".
5. Save the settings and close system configuration.
1. Preparation before operation
3-2
Chapter 3 Setting up
█

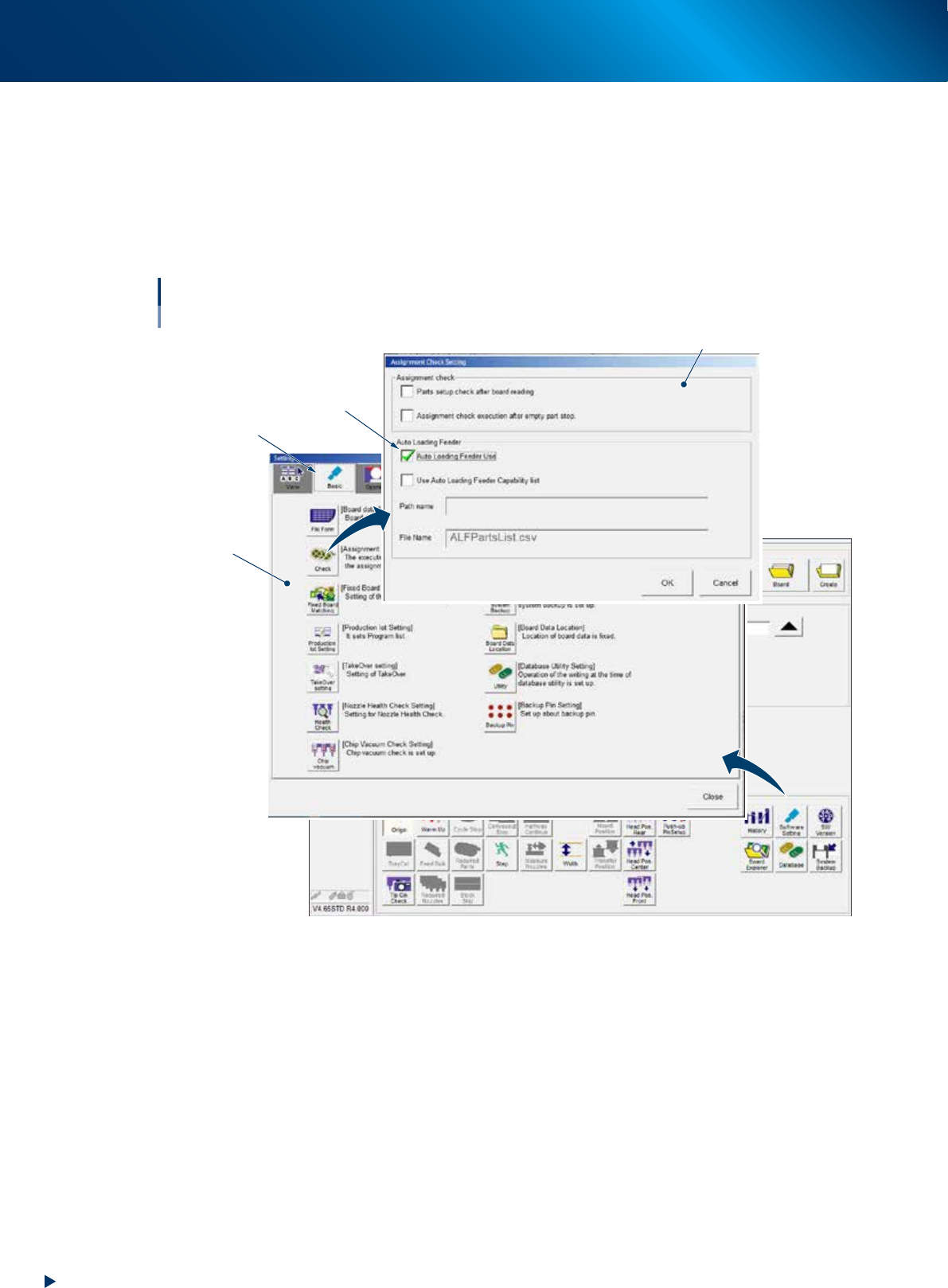

Machine softwares standard setting
The following settings are required to use the auto loading feeder in the machine software.
1. Press the [Software settings] button on [Setup] - [Utility] screen and open the [Setting] screen.
2. Select the [Basic] tab and press the [Check] button.
3. Tick the checkbox of "Auto loading feeder Use".
4. Press the [OK] button to close the [Setting] screen.
Select this tab
Setting screen
Standard setting
with Auto loading feeder
Assignment Check Setting Screen
Tick here
