2. Preaparation for operation
3-27
Chapter 3 Setting up
7
Check the component tape setting.
The component tape is set correctly if the followings are applied.
1. The yellow LED lights up for 1 second if the component tape insertion is detected.
2. The yellow and green LEDs flash simultaneously for 4 seconds.
<When supplying a component tape>
Check [Monitor] - [Production] screen. The feeder set position is enclosed with a magenta frame
when "presettable".
3. The green LED lights up after completing the component tape setting.
<When supplying a component tape>
The magenta frame disappears when the set for "presettable" is completed.

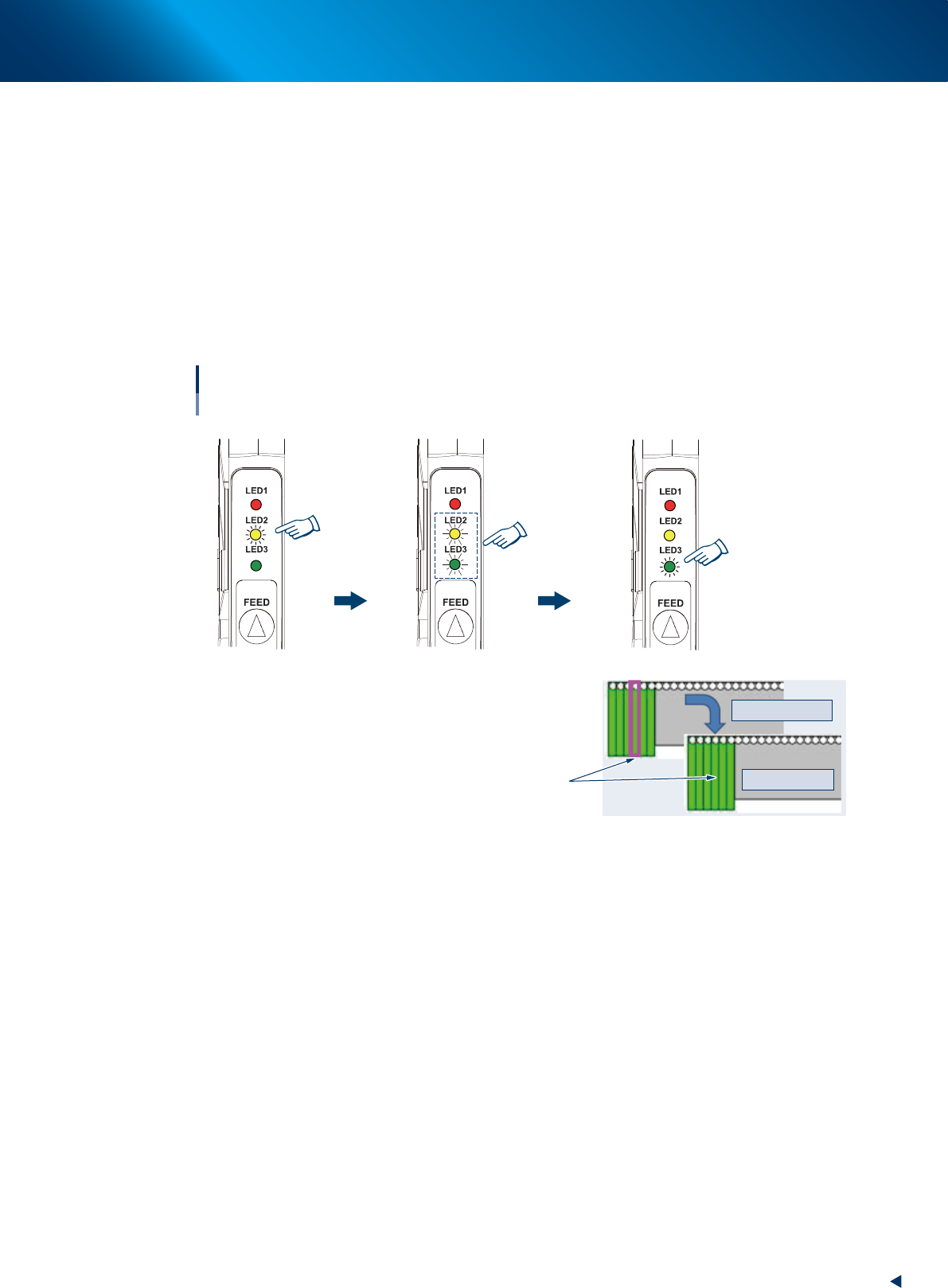

Yellow and green LEDs
flash simultaneously
for 4 seconds
Yellow LED lights up
for 1 second
Completing
Completing component tape setting
With IT Option
Magenta frame disappears
Before completing
After completing
Green LED lights up
[Monitor] - [Production] screen
63307-KLU-30
8
Start the operation.
When the reel was newly set.
Pressing [START] button loads component tape, set in the loading unit, to pickup position and starts
operation.
When the reel was preset.
If the component tape in operation becomes empty, other component tape set in the loading unit
loads to pickup position and supplying component is continued.
2. Preaparation for operation
3-28
Chapter 3 Setting up
2.3 Other functions
The following functions are available with the optional software (IT Option).
█

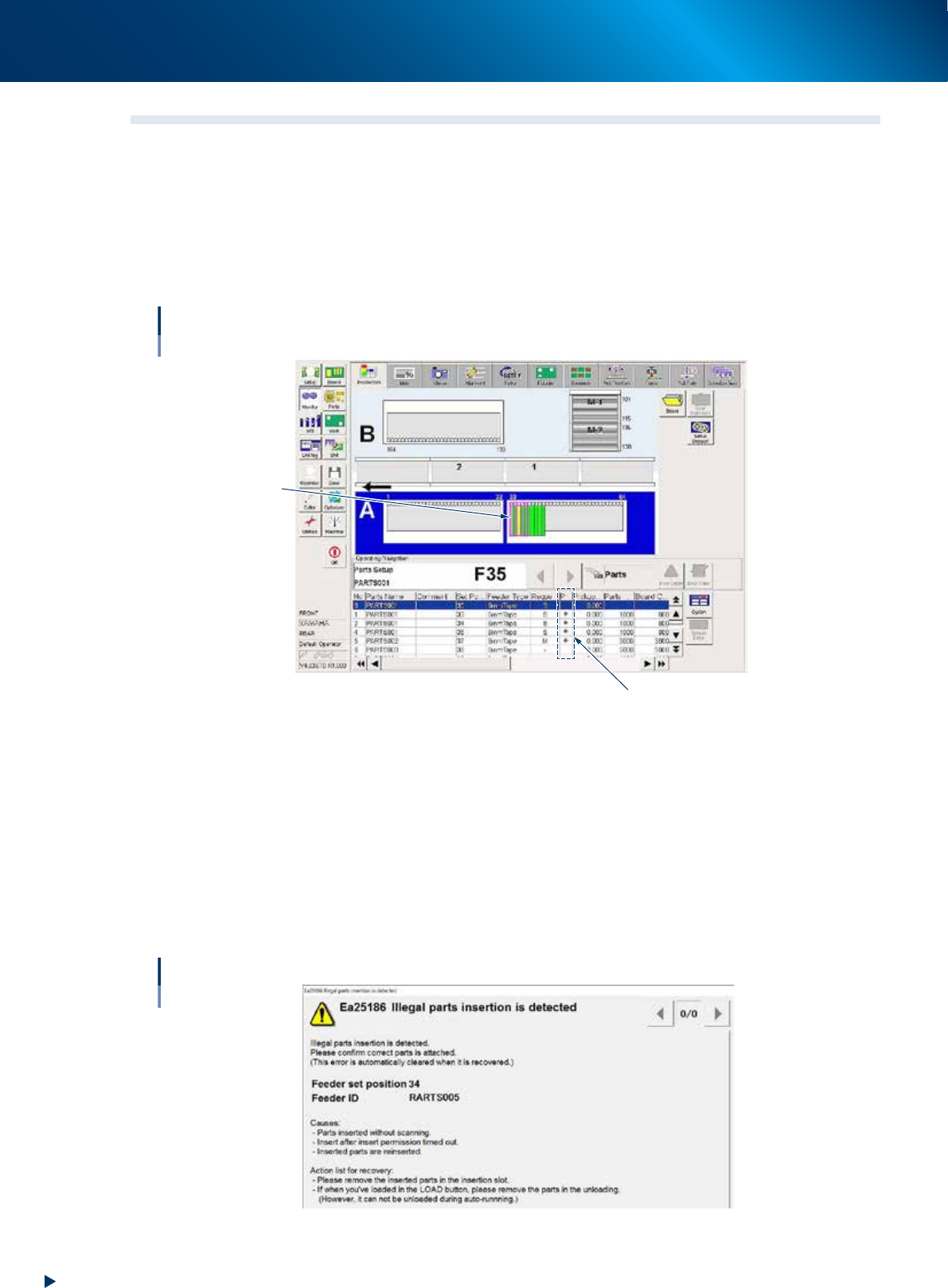

Presettable indication
When there is "presettable" and it can be performed, it is indicated on [Monitor] - [Production] screen
as shown below.
• * (Asterisk) appears on the "presettable" column.
• The magenta frame appears on feeder placement graphic.
Presettable
“Presettable” column
Magenta frame
64309-KLU-30
█
Unauthorized Insert Detection
The insertion is detected in all statuses (Operation/Reset/Emergency Stop). The unverified component
tape is not loaded automatically.
• When Auto loading feeder is set to a machine and setting component tape to Auto loading feeder
that has no parts set request, it is regarded as an illegal parts insertion and the warning appears.
• When the illegal parts insertion is detected, the operation call is given. This can be cleared by
checking the error and detach the relevant component tape.
• When setting the detached Auto loading feeder to the correct position, it is required to verify the
component tape and the feeder.
Insert detection
64310-KLU-30
3. Operation panel
3-29
Chapter 3 Setting up
3. Operation panel
3.1 Buttons on operation panel and LEDs
LED1
LED2
LED3
FEED
BACK
FUNC
LOAD
LED1
LED2
LED3
FEED
BACK
FUNC
LOAD

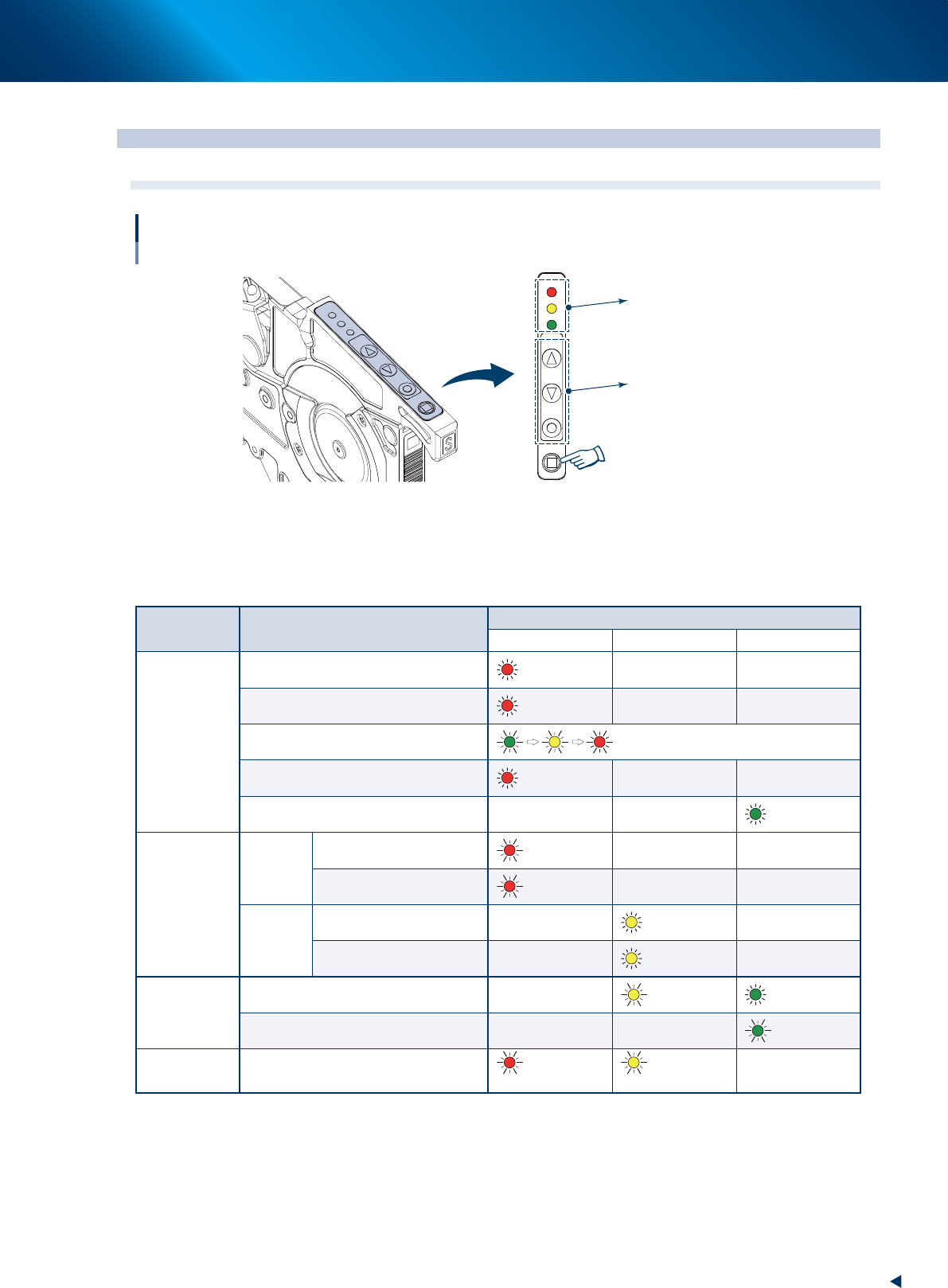

Buttons on operation panel and LEDs
LEDs
Operation buttons
[LOAD] button
63310-KLU-30
3.1.1 LED lighting patterns/Status
The lighting status of the LED display on the operation panel is shown below. "Setup change" and "Out of
components" of feeder are indicated.
Status Detail
LED
LED1 (Red) LED2 (Yellow) LED3 (Green)
Setup change
No setup (Removal command)
Light up
Wrong setup
Light up
Setup position indication
Continuous flash
Normal component set reliability NG*
Light up
Setup completion set position
Light up
Out of
components
Stop due to
remaining
amount
Stop due to remaining amount
(out of components)
Flash
Changing to alternative
components
Flash
Retry over
Pickup/recognition error stop
Light up
Changing to alternative
components
Light up
Component
shortage
warning
Component shortage warning
Flash
Light up
Preset
Flash
Feeder error
Flash
(High-speed)
Flash
(High-speed)
*"Normal component set reliability NG" means the condition where normal component is set but cannot be used as the setup check is not performed yet.
