1. Preparation for loading component tape
2-4
Chapter 2 Handling component tape
1.1.4 Cutting component tape
Cut a paper component tape with specified tape cut jig (scissors).
1
Release the locking lever.
Slide the locking lever upward gripping the handles lightly to release the locking lever.
Tape cut jig
Releasing locking lever
Locking lever
Handle
Set position of component tape
Grip handles lightly.
Move upward.
63208-KLU-30
2
Set a component tape.
1. Check the pitch of component tape to be cut, as the tape set position is different between 2mm
and 4mm pitches.
2. The paper tape should be set illustrated below to be cut always from pocket side.
Tape cut jig
Setting component tape
Pin
Tape set position
Feed hole
Tape set line
*Pocket with component
may align with line.
Instruction label
(Tape set position)
63209-KLU-30
1. Preparation for loading component tape
2-5
Chapter 2 Handling component tape
3. Insert a component tape to the pin position of subjected pitch, while aligning the 4th feed hole
from cutting position with the tape set line as illustrated below.
123
4
Tape set position for 2mm pitch component tape
Tape reel side
Tape set line
*Pocket with component
may align with line.
Cutting position
4th feed hole from cutting position
63210-KLU-10
123
4
Tape set position for 4mm pitch component tape
Tape reel side
Tape set line
*Pocket with component
may align with line.
Cutting position
4th feed hole from cutting position
63211-KLU-10
3
Cut the component tape.
Grip the handles of tape cut jig to cut the component tape.
4
Check the cut position of component tape.
See "1.1.3 Precautions about cutting position of component tape" to check that the component tape
is cut correctly.
1. Preparation for loading component tape
2-6
Chapter 2 Handling component tape

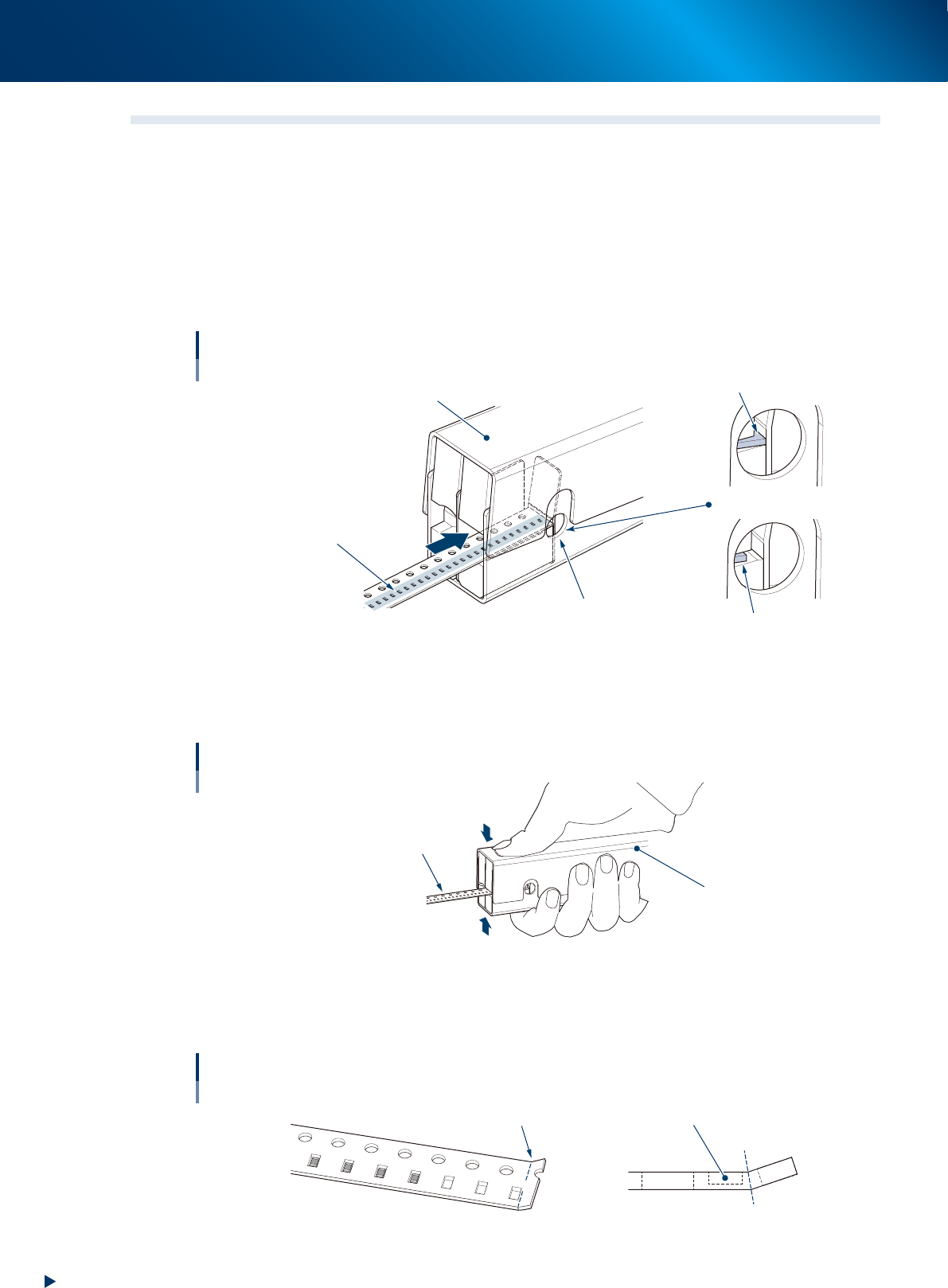

1.2 Folding top of component tape
1.2.1 Folding top of component tape
Use the right side of tape leveler to fold the top of component tape.
1
Insert the component tape to be folded into the end of tape leveler.
1. Face up the cover tape side and insert the component tape into tape leveler.
2. Check that the component tape is inserted into the end of tape leveler from the window to
check folding position.
Inserting component tape
Checking insertion position
Inserted into end
Correct
Incorrect
Not inserted into end
Tape leveler
Face up cover tape side.
Window to check
folding position
63205-KLU-40
2
Fold the top of component tape.
Grip the top and bottom of tape leveler to fold the top of component tape.
Fold component tape
Component tape
Tape leveler
63206-KLU-40
3
Check the top of component tape.
Check that the top of component tape is folded as shown in the figure below.
Check top of component tape
Component pocket
Folding position
