2. Preparation for maintenance 4-4 Chapter 4 Maintenance and parts replacement Replaceable parts 2 Clamp unit (left/right) Handle Reel holder bracket Under rail T ail pin Board connector Clamp lever 63407-KLU-00 Section …
2. Preparation for maintenance
4-3
Chapter 4 Maintenance and parts replacement
2.3 Replaceable parts
Replaceable parts 1
Pusher assembly
Spring
(Pusher for LL)
Front block
Tape guide assembly
Leaf spring
Discharge assembly
Pusher
Pusher
Pusher assembly (S, M, L)
Pusher assembly (2S)
Spring
Spring
Pusher holder
Pusher holder
Wire spring
63406-KLU-60
Section Description Part No. Remark
Tape guide
Tape guide assembly (2S) KLU-MC1M1-40X
Tape guide assembly (S) KLU-MC1M1-00X
Tape guide assembly (M) KLU-MC1M1-10X
Tape guide assembly (L) KLU-MC1M1-20X
Tape guide assembly (LL) KLU-MC1M1-30X
Tape guide section
Leaf spring KLU-MC1C1-00X (Common for all 2S, S, M, L and LL)
Pusher assembly (2S)
KLU-MC1C9-01X Pusher (dedicated for 2S, wire spring is available)
KLU-MC1CD-00X Wire spring (dedicated for 2S)
KLU-MC1C8-00X Spring (common for 2S, S, M and L)
KLU-MC1CA-00X Pusher holder (common for 2S, S, M and L)
Pusher assembly
(S, M and L)
KLU-MC1C9-00X Pusher (common for S, M and L)
KLU-MC1C8-00X Spring (common for 2S, S, M and L)
KLU-MC1CA-00X Pusher holder (common for 2S, S, M and L)
Spring (pusher for LL) KLU-MC1CF-00X
The LL type feeder uses not a pusher assembly,
but a single spring as a pusher.
Discharge assembly KLU-MC1N0-00X Discharge component tape from feeder top
Front block section Front block KLJ-MC10W-00X
2. Preparation for maintenance
4-4
Chapter 4 Maintenance and parts replacement

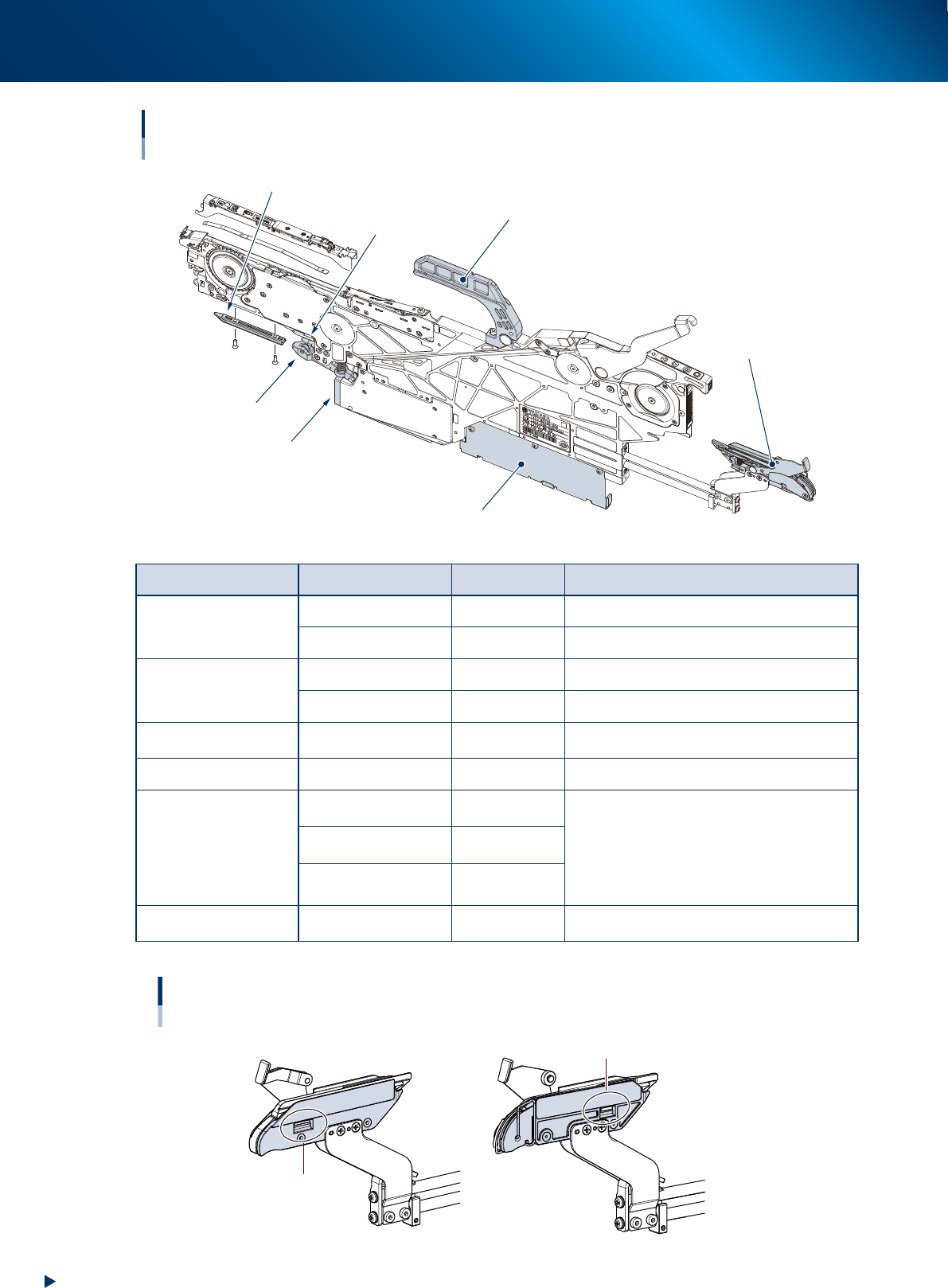

Replaceable parts 2
Clamp unit (left/right)
Handle
Reel holder bracket
Under rail
Tail pin
Board connector
Clamp lever
63407-KLU-00
Section Description Part No. Remark
Connecting section for
feeder bank
Under rail KHJ-MC104-00X
Reel holder bracket KLU-MC1F3-00X
Clamp section
Clamp lever KLJ-MC18H-00X
Tail pin KHJ-MC105-00X
Electrical connecting
section
Board connector KHJ-MC1A9-00X
Operation section Handle KLJ-MC181-01X
Loading unit
Set of clamp unit
(left/right)
KLU-MC19Y-00X
These are new type models of clamp unit parts
(revised).
These clamp units are not compatible with former
ones.
They require to be replaced both left/right parts at
the same time when former type clamp units are
damaged.
Clamp unit
(single for left side)
KLU-MC191-01X
Clamp unit
(single for right side)
KLU-MC194-01X
Preset holder section Sliding stopper KLS-M13CE-00X
Replace when damaged (after approx. 20
thousands motions.)
►
Clamp unit: comparing former and new
Clamp unit
Engaging section of left and right parts
Former clamp unit
New clamp unit (revised)
Engaging section of left and right parts
63434-KLU-00
3. Maintenance / Replacing procedure
4-5
Chapter 4 Maintenance and parts replacement

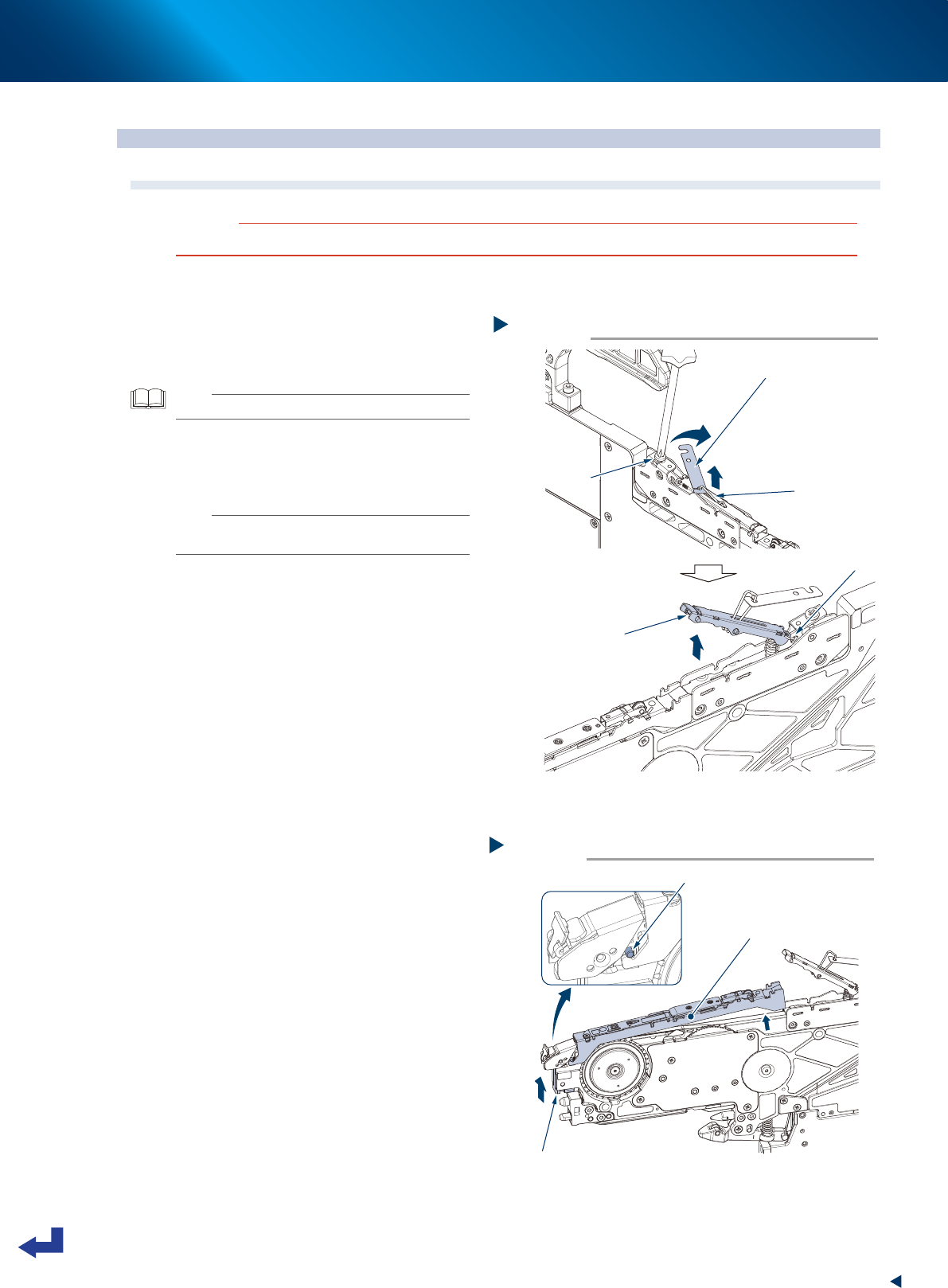

3. Maintenance / Replacing procedure
3.1 Tape guide
c
CAUTION
Do not disassemble tape guide. The original accuracy is not ensured by reassembling tape guide.
3.1.1 Cleaning
1
Detach tape guide rear lever.
1. Loosen a screw mounting lever plate with
Phillips screwdriver.
TIP
It is not necessary to remove a mounting screw.
2. Move lever plate to arrow's direction in the
figure on the right.
3. Raise up lever pin to pull up tape guide rear
lever.
n
NOTE
As tape guide rear lever is connected to Auto loading
feeder body with clip, it cannot be detached.
2
Unlock front lever.
1. Push up front lever to loosen a pin locking
tape guide.
2. Detach tape guide from Auto loading feeder
body.
Step 1
Detaching tape guide rear lever
Lever pin
Lever plate
Mounting screw
Tape guide rear lever
Lift up.
Clip
63402-KLU-30
Unlocking front lever
Step 2
Front lever
Tape guide
Pin
63403-KLU-40
