3. Maintenance / Replacing procedure
4-9
Chapter 4 Maintenance and parts replacement
3.2.2 Replacing pusher assembly
1
Detach tape guide and leaf spring.
See "3.2.1 Cleaning tape path/Replacing leaf
spring" and detach tape guide and leaf spring.
n
NOTE
Pusher assembly (for S/M/L) includes 1 to 3 in the figure
on the right. Pusher (for LL) consists of a single spring. It
can be replaced simply by detaching leaf spring.
2
Replace pusher assembly.
1. Loosen a screw mounting pusher holder with
Phillips precision screwdriver.
2. Detach pusher assembly.
3. Attach new pusher assembly.
3
Return tape guide and leaf spring to
original positions.
3.2.3 Replacing discharge assembly
1
Detach tape guide.
See "3.1.1 Cleaning" and detach tape guide.
2
Replace discharge assembly.
1. Remove 2 screws mounting discharge
assembly with Phillips screwdriver.
2. Replace discharge assembly with new one.
3. Apply thread lock (LOCTITE 241) lightly to
mounting screws.
• Tightening torque: 30 N·cm
63426-KLU-30
3
Return tape guide to original position.
Step 2
Replacing discharge assembly
Discharge
assembly
Mounting screws
Apply thread lock (LOCTITE 241)
63426-KLU-30
Detaching pusher assembly
Step 2
Pusher assembly (for M/L)
Pusher assembly (for 2S)
Set position of spring
(pusher for LL)
Mounting screw
2. Pusher holder
1. Pusher
3. Spring
Wire spring
63425-KLU-40
3. Maintenance / Replacing procedure
4-10
Chapter 4 Maintenance and parts replacement
3.3 Front block
c
CAUTION
It is required to adjust pickup position (Y-direction) after replacing front block. In this case, use separately sold tune-up
station (option).
3.3.1 Replacing front block
1
Detach front block.
1. Remove 2 screws mounting front block with
hex wrench (2.5).
2. Detach front block.
TIP
If unable to detach front block, Screw in M3 x 6 or larger
bolt into M3 extraction hole to pull front block straight out.
c
CAUTION
One or more shims may be present between front block
and feeder body. In this case, make sure not
to losing shims.
2
Attach front block.
1. Return shims to original position if they have
been replaced or detached.
2. Attach front block by tightening 2 mounting
bolts with hex wrench (2.5).
• Tightening torque: 200 N·cm
3
Check pickup position.
Check pickup position in Y-direction with
tune-up station (option).
n
NOTE
When adjusting pickup position, follow instructions of
tune-up station (option).

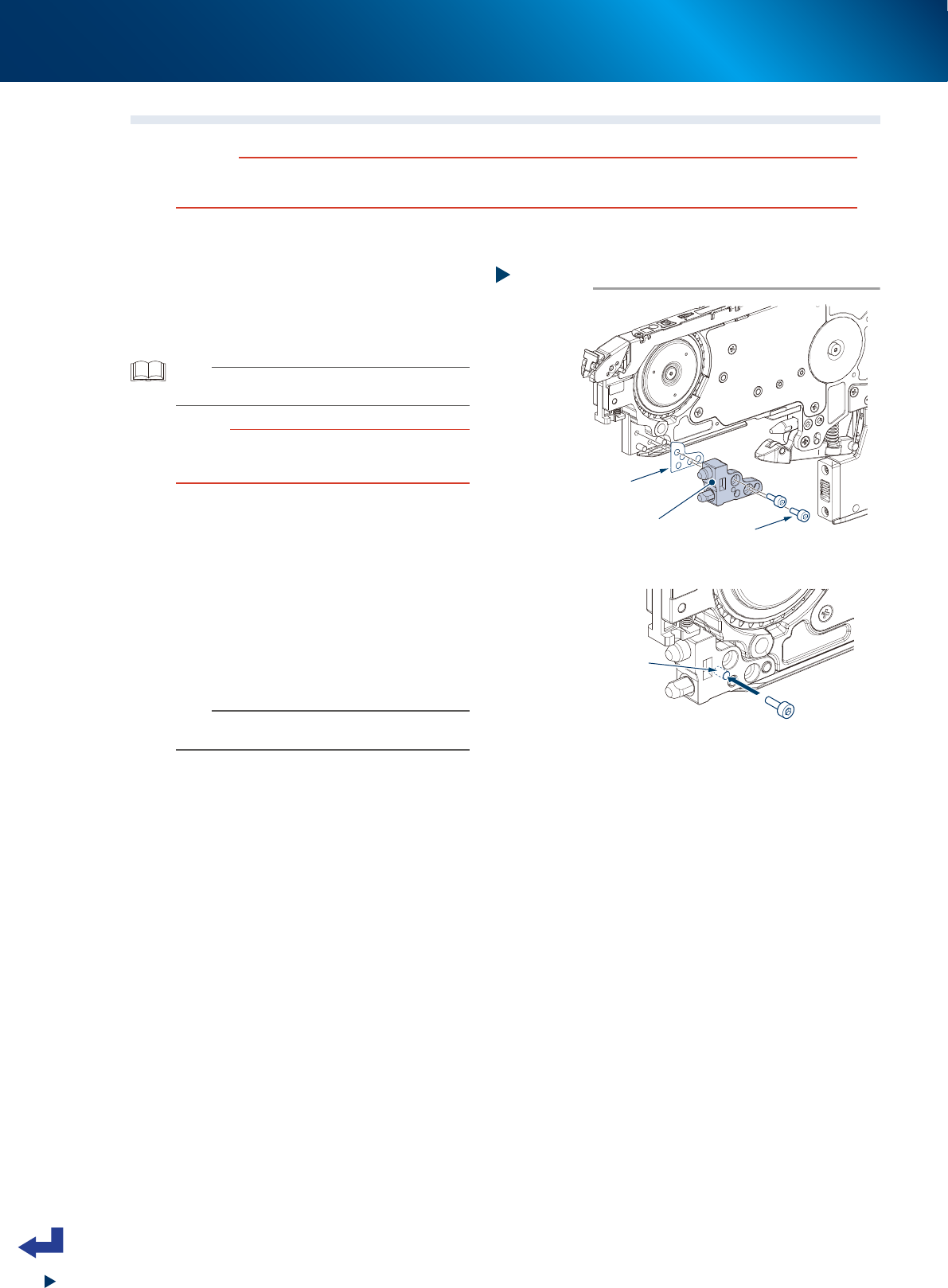

Step 1
Detaching front block
Front block
When unable to detach front block
M3 x 6 or larger
Screw in this hole.
Shim
Mounting bolt
63408-KLU-30
3. Maintenance / Replacing procedure
4-11
Chapter 4 Maintenance and parts replacement
3.4 Connecting section for feeder bank
3.4.1 Replacing under rail
1
Detach under rail.
1. Remove 2 screws mounting under rail with
Phillips screwdriver.
2. Detach under rail.
2
Attach under rail.
1. Apply thread lock (LOCTITE 241) to 2
screws.
2. Mount new under rail by tightening 2 screws
with Phillips screwdriver.
• Tightening torque: 30 N·cm
3.4.2 Replacing reel holder bracket
1
Detach reel holder bracket.
Detach reel holder bracket by removing 3
screws with Phillips screwdriver.
2
Attach new reel holder bracket .
Attach new reel holder bracket by tightening 3
screws with Phillips screwdriver.
• Tightening torque: 40 N·cm

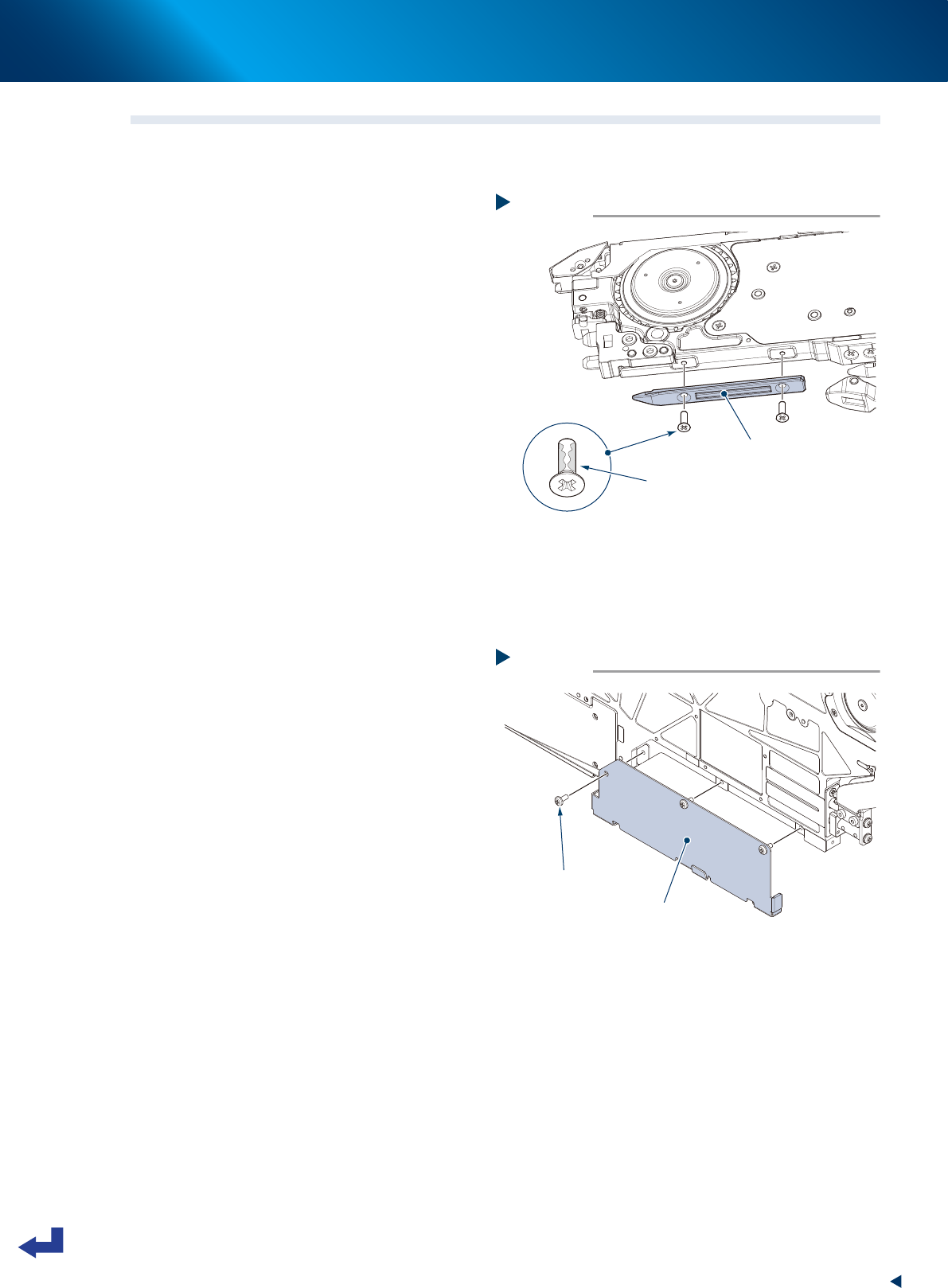

Step 1, 2
Replacing under rail
Under rail
Mounting screw
Apply thread lock (LOCTITE 241).
63410-KLU-30
Step 1, 2
Replacing reel holder bracket
Reel holder bracket
Screw
63411-KLU-30
