4. Troubleshooting
3-37
Chapter 3 Setting up
4.4 Feed pitch offset
█
Error : Component pickup error occurs. The pickup position is offset on screen.
►
Cause
Component tape is 2 mm offset when it is set.
►
Countermeasure
Align with the component pickup position by [FEED] button.
c
CAUTION
Align with component pickup position by [FEED] button. The [BACK] button cannot be used.
Feed pitch offset
Component pickup position
(No component)
Sprocket
64304-KLU-30
4. Troubleshooting
3-38
Chapter 3 Setting up

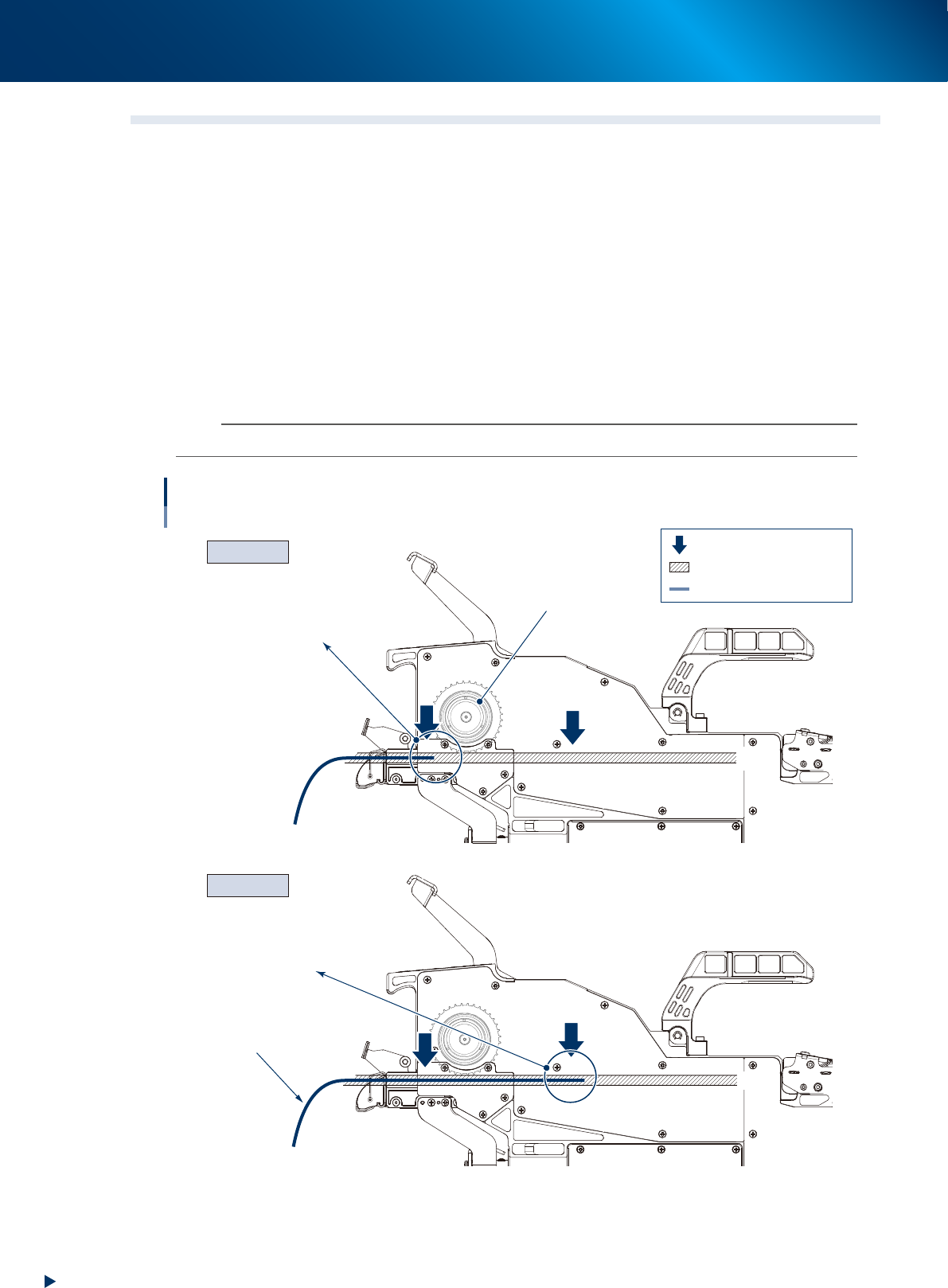

4.5 Component tape cannot be loaded/unloaded.
█
Error : Component tape cannot be loaded by pressing [LOAD] button.
►
Cause
1. The top of component tape does not reach at the sprocket.
2. The top of component tape reaches at the sensor 2.
►
Countermeasure for cause 1
When the top of component tape does not reach at the sprocket, pull out the loading unit and
component tape and insert the component tape set position more.
►
Countermeasure for cause 2
When the top of component tape reaches at the sensor 2, lower the clamp lever and pull out the
component tape to where is not detected by sensor 2.
n
NOTE
When the machine is operated or a component tape is at the position of sensor 3, component tape cannot be unloaded.
2
3
2
3
Cause 2
Cause 1
Component tape cannot be loaded.
Sprocket
Top of component tape does not
reach at sprocket.
Sensor 2 detects
component tape.
Component tape
: Component tape detection sensor
: Component tape path
: Component tape
63329-KLU-30
4. Troubleshooting
3-39
Chapter 3 Setting up
█

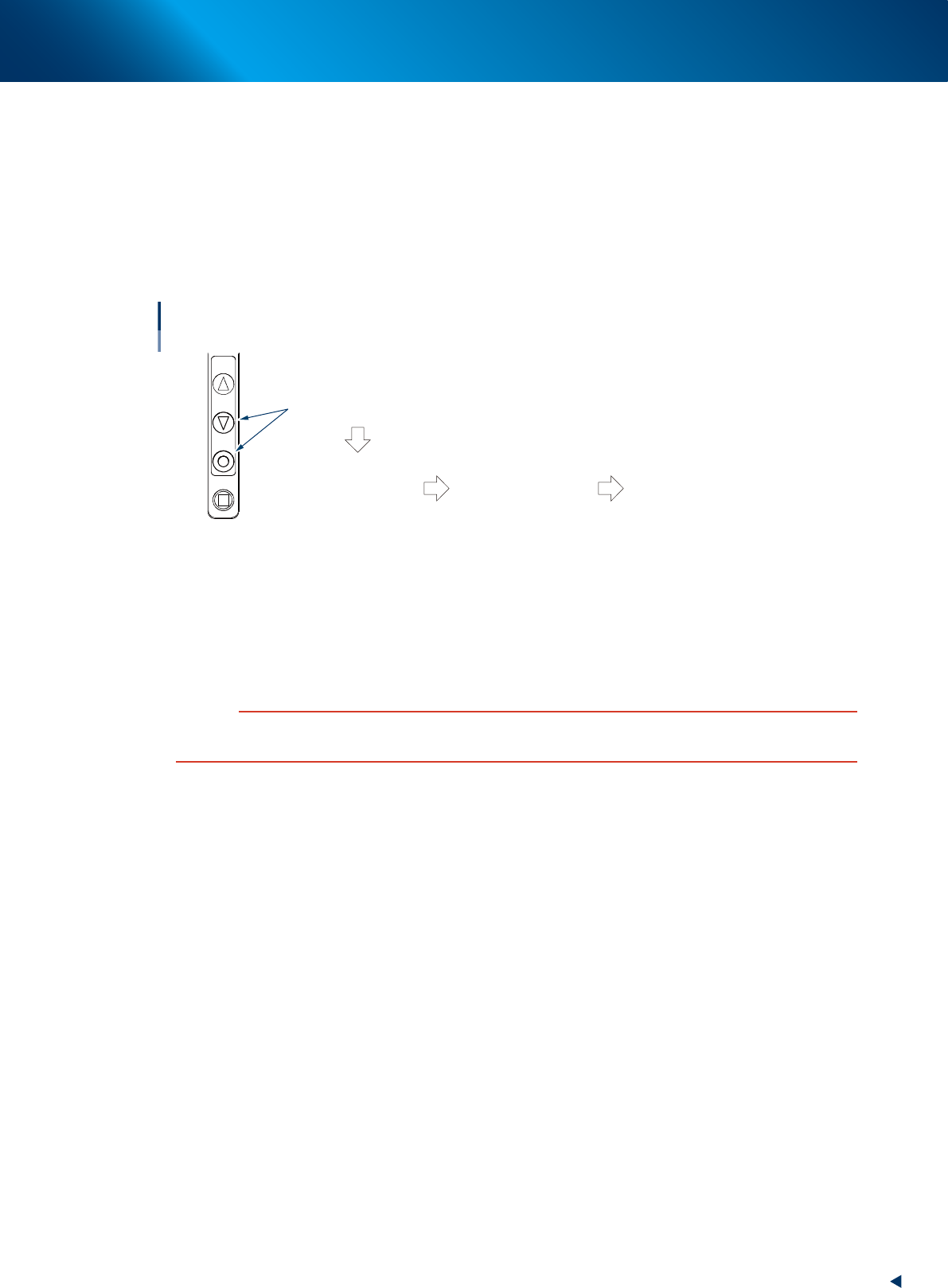

Error : Unloading stops in the middle.
►
Countermeasure
Press [FUNC] and [BACK] buttons simultaneously and unload again.
█
Error : Unloading is not performed.
►
Countermeasure
Detach Auto loading feeder from machine. Then pull the component tape manually while no power is
supplied to Auto loading feeder.
FEED
BACK
FUNC
LOAD
Component tape cannot be unloaded.
Component tape
cannot be unloaded
even after pressing
buttons.
Detach Auto loading
feeder from machine.
Pull component tape manually
while no power is supplied to
Auto loading feeder.
Press buttons simultaneously.
63330-KLU-30
█
Error : Loading and unloading cannot be performed.
►
Cause
Component tape may remain in the feeder.
►
Countermeasure
Remove remaining component tape by detaching the tape guide as needed.
c
CAUTION
Do not detach parts other than tape guide when removing remaining component tape. Make sure to return the original
tape guide to the original position after detaching tape guide.
