1. Overview 1-7 Chapter 1 Overview █ Adjustment jigs ► Master feeder Master feeder is a jig to adjust a pickup position of feeder . When 1 year or longer has elapsed from the date marked on the calibration label, it is r…
1. Overview
1-6
Chapter 1 Overview
█
Handling feeder
Cautions when holding feeder
Sprocket
Connector
Front block
Loading unit
Clamp lever
63005-KLU-30
►
Cautions when handling feeder
• Do not hold a clamp lever. Doing so may pinch hand and cause injury.
• Do not hold a connector and sprocket. The feeder may be damaged.
• Do not apply strong impacts to a front block and loading unit enclosed by dashed lines above.
1. Overview
1-7
Chapter 1 Overview
█
Adjustment jigs
►
Master feeder
Master feeder is a jig to adjust a pickup position of feeder. When 1 year or longer has elapsed from
the date marked on the calibration label, it is recommended to calibrate the master feeder.
►
Tape guide for tune-up station (dedicated for Auto loading feeder)
When using tune-up station, replace the normal tape guide assembly with the tape guide for tune-up
station. Reattach the original tape guide assembly after adjusting with tune-up station. See the
separate manual "Tune-Up Station" for details.
c
CAUTION
The master tape may be damaged if using tune-up station without changing to tape guide for tune-up station.
Master feeder/Tape guide for tune-up station
Calibration label
（Dedicated for Auto loading feeder）
Master feeder Tape guide for tune-up station
63123-KLU-30
1. Overview
1-8
Chapter 1 Overview
1.3 Types of Auto loading feeder and available component size
Auto loading feeder is classified according to the available component size shown in the table below. Make
sure to check the type displays on tape guide and operation panel shown in the figure below. Additionally,
use the special jig (cover tape checker) to select Auto loading feeder available for the component tape to be
used.

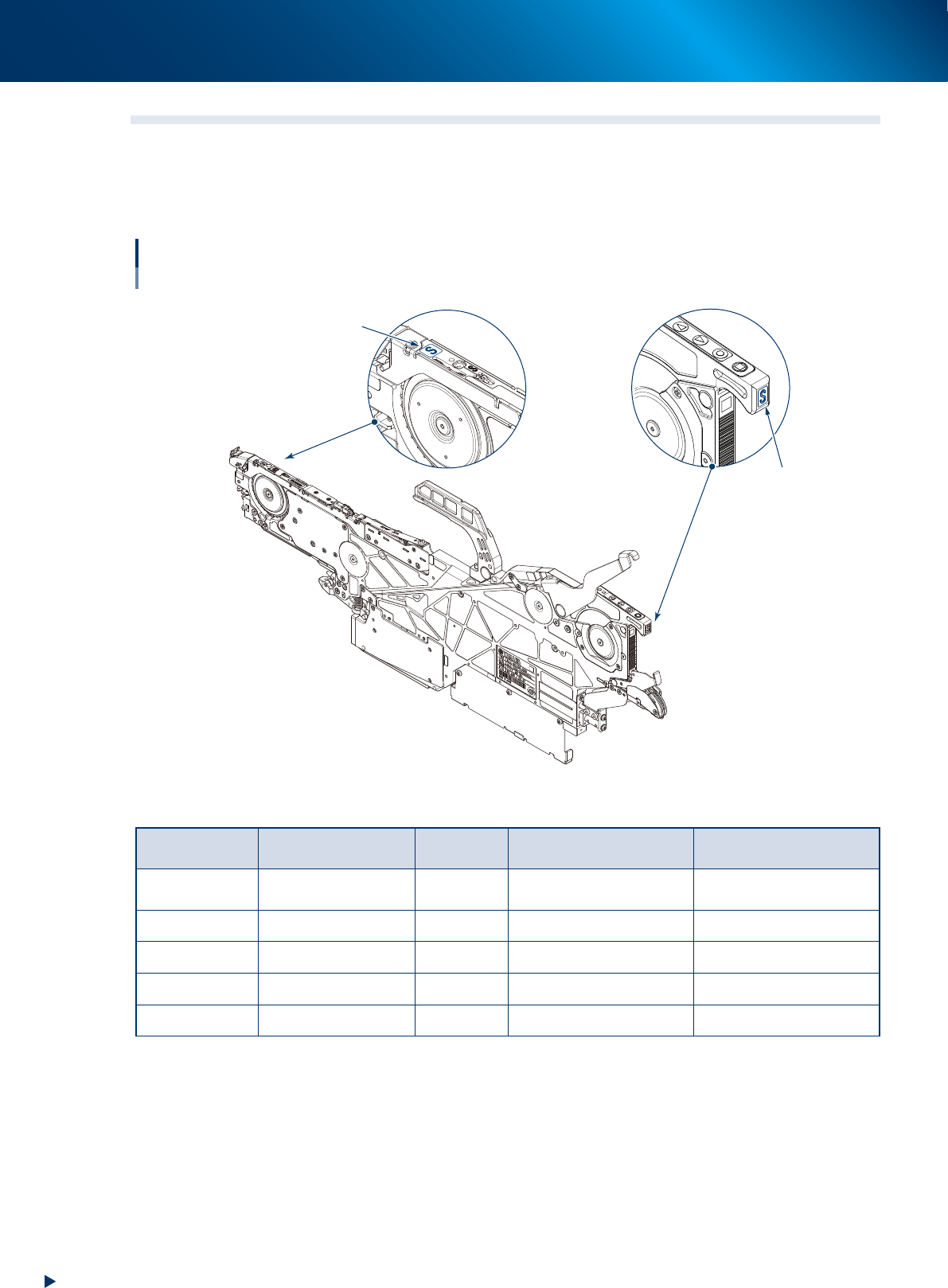

Types of Auto loading feeder
Type display positions
Tape guide
Operation panel
Type display
Type display
63100-KLU-40
Available component size: Unit is mm. Figures in ( ) are sizes in inches.
Type display/
Engraving
Available
component size
Tape Tape width Feed pitch (mm)
2S
0603 (0201)* / 1005
(0402)
Paper 8mm 2mm
S 1005 (0402) Paper 8mm 2mm
M 1608 (0603) Paper 8mm 2mm or 4mm
L 2012 (0805) Paper 8mm 2mm or 4mm
LL 3216 (1206) Paper 8mm 2mm or 4mm
*0603(0201) size supports only magnetic components.
