1. Preparation before operation
3-11
Chapter 3 Setting up
1.4.2 Checking Auto loading feeder information on Setup Assignment
Auto loading feeder capability information of component can be checked on the Setup Assignment as well.
►
Auto Loading Feeder Capability information
• If a component is available for Auto loading feeder, Auto loading feeder type is indicated on the
"Feeder Type" column on the Setup Assignment.
• If a component is unavailable for Auto loading feeder, only the feeder type is indicated.
►

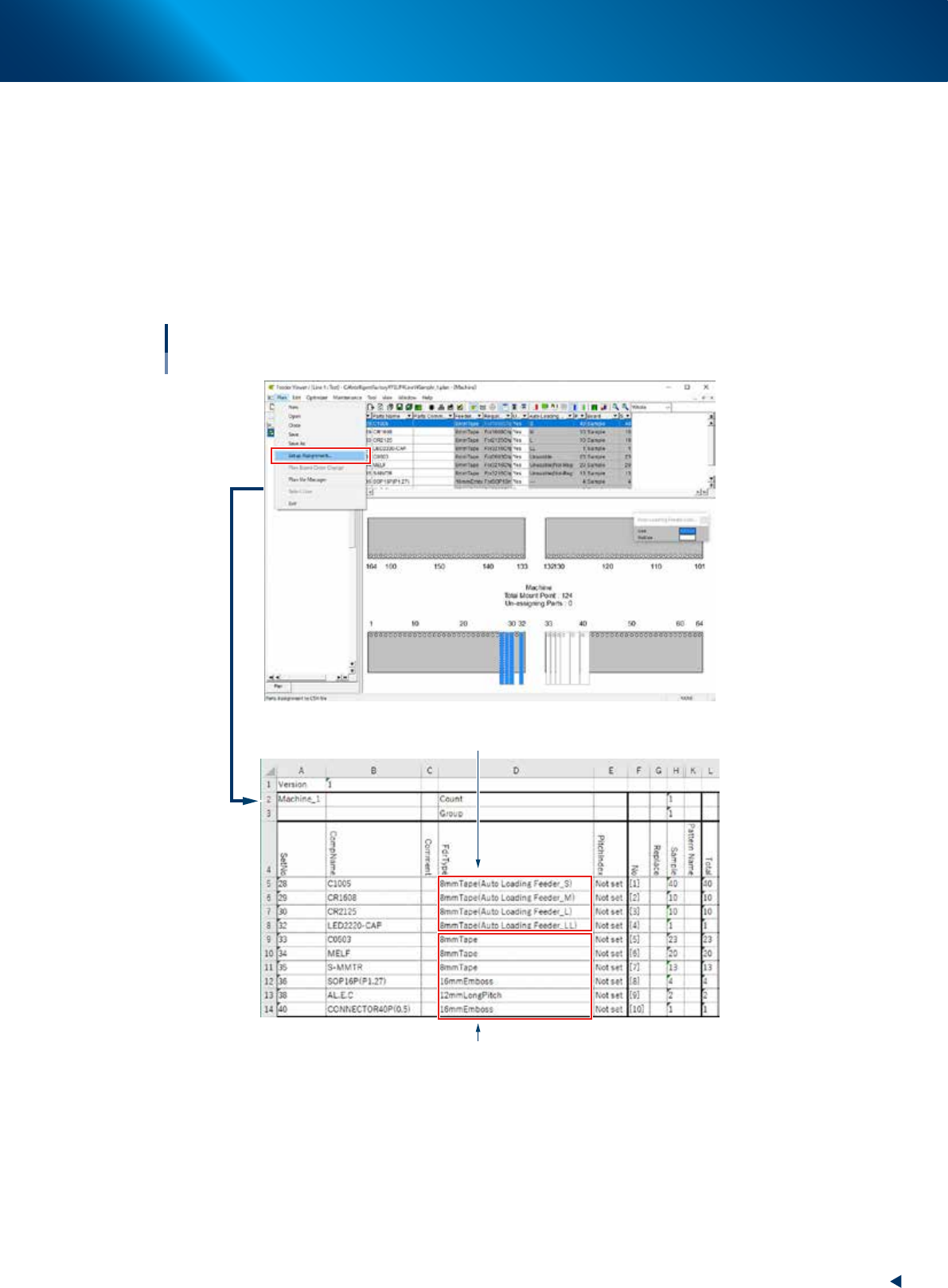

Setup Assignment
The setup list can be output by selecting [Menu] - [Setup Assignment] on feeder viewer.
Setup Assignment
Checking Auto loading feeder information
Components available for Auto loading feeder
Components unavailable for Auto loading feeder
64317-KLU-30
1. Preparation before operation
3-12
Chapter 3 Setting up
1.5 Activating Auto loading feeder per line
n
NOTE
The optional software "P-Tool" or "YSUP-PM" is required to use this function.
The functions related to Auto loading feeder can be activated/inactivated per line that the application is
started. The following capabilities of function are switched.
• Updating Auto loading feeder Capability List on editor
• Auto loading feeder Optimizer
• Checking setup and Setup Assignment
►
Setting conditions
• The option setting "Use Auto loading feeder Capability list" is activated.
If not, functions related to Auto loading feeder are unavailable for all lines.
• A machine compatible with Auto loading feeder is installed on a line.
If not, functions related to Auto loading feeder are unavailable for all lines.
►
Setting procedure
1
Open the "Board Explorer".
2
Select a line.
Select the folder of a line that the setting is changed and right-click it.
3

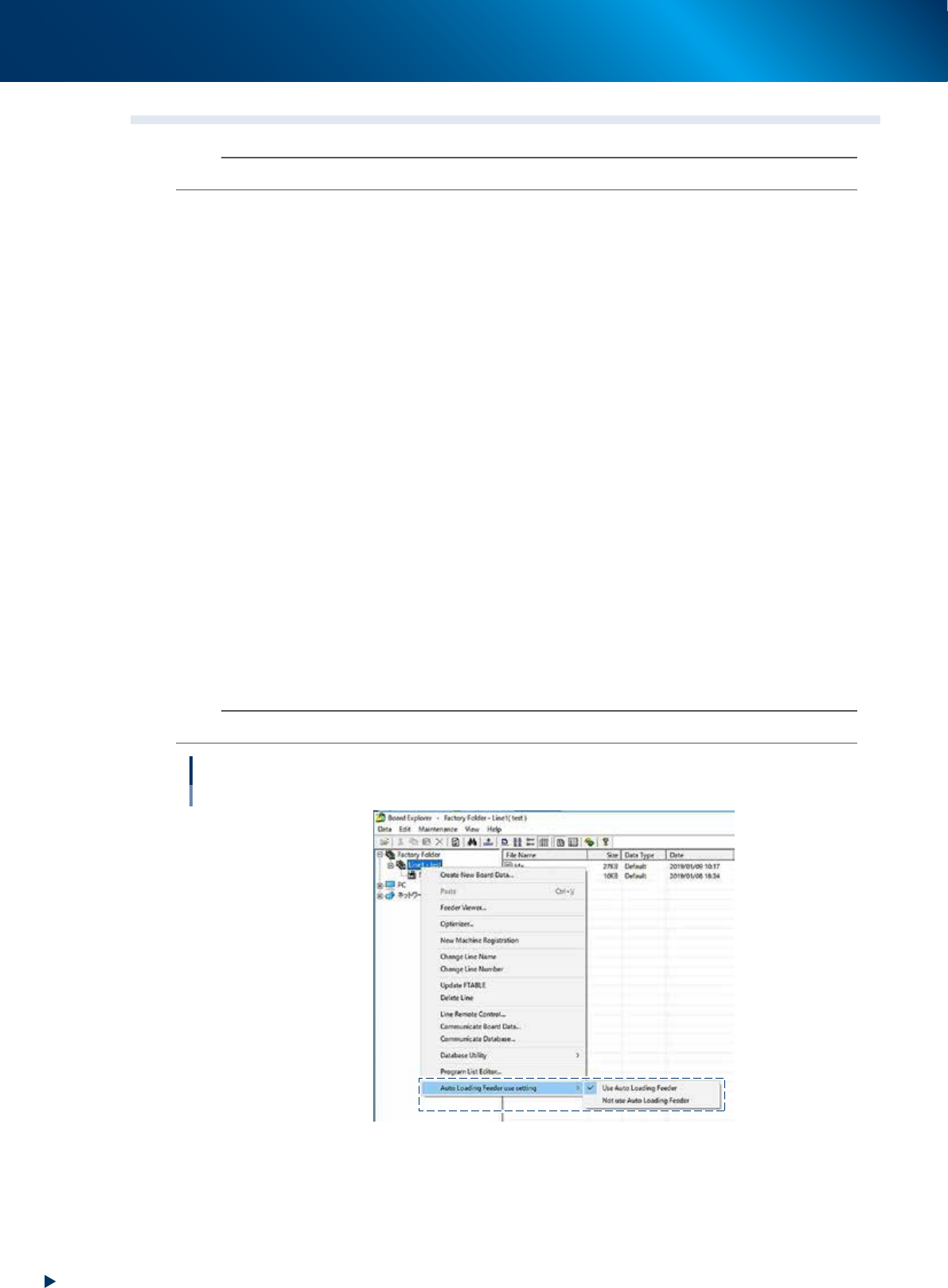

Select "Auto Loading Feeder use setting".
Select "Use Auto Loading Feeder" if the line uses Auto loading feeder. Select "Not use Auto Loading
Feeder" if the line does not use Auto loading feeder.
n
NOTE
"Use Auto Loading Feeder" is a default setting for "Auto Loading Feeder use setting".
Activating Auto loading feeder per line
64321-KLU-30
2. Preaparation for operation
3-13
Chapter 3 Setting up
2. Preaparation for operation
2.1 Preset holder and attaching procedure
2.1.1 Preset holder
The preset holder is attached to reel holder on feeder exchange carriage or reel holder for feeder bank.
2 reel storages are provided. Slide and place the 1st reel on the front and the 2nd reel on the rear.
CLOSED (When supplying components)
OPEN (When setting up components)

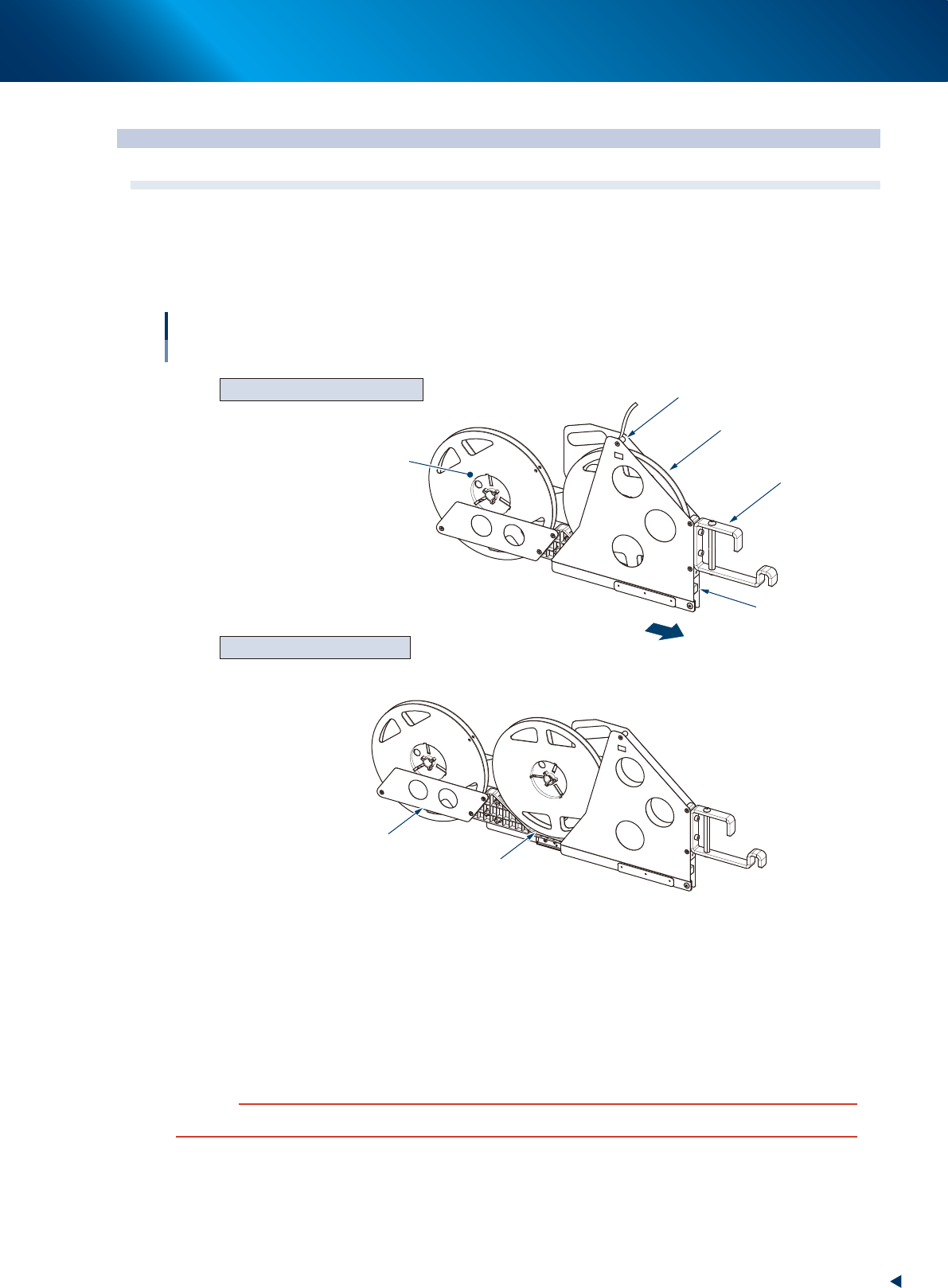

Preset holder
Overview
1st reel
1st reel tape path
Sliding stopper
2nd reel
Storage for 2nd reel
Storage for 1st reel
Front
Preset holder hooks
63322-KLU-40
►
Sliding stopper
< Changing from CLOSE to OPEN >
The lock for the sliding stopper is released by pressing the storage for 2nd reel once.
< Changing from OPEN to CLOSE >
Press the storage for 2nd reel to the front side. It is locked if it is not detached by slightly pulling the
storage for 2nd reel.
c
CAUTION
The sliding stopper may be damaged if pulling the storage for 2nd reel forcibly when the preset holder is locked.
