21 1 Overview 1.1 Product Overview and Features This recorder allows you to observe a wide range of waveforms from low-speed signals to high- speed waveforms. Y ou can mainly use this instrument for analyzing test and ev…
20

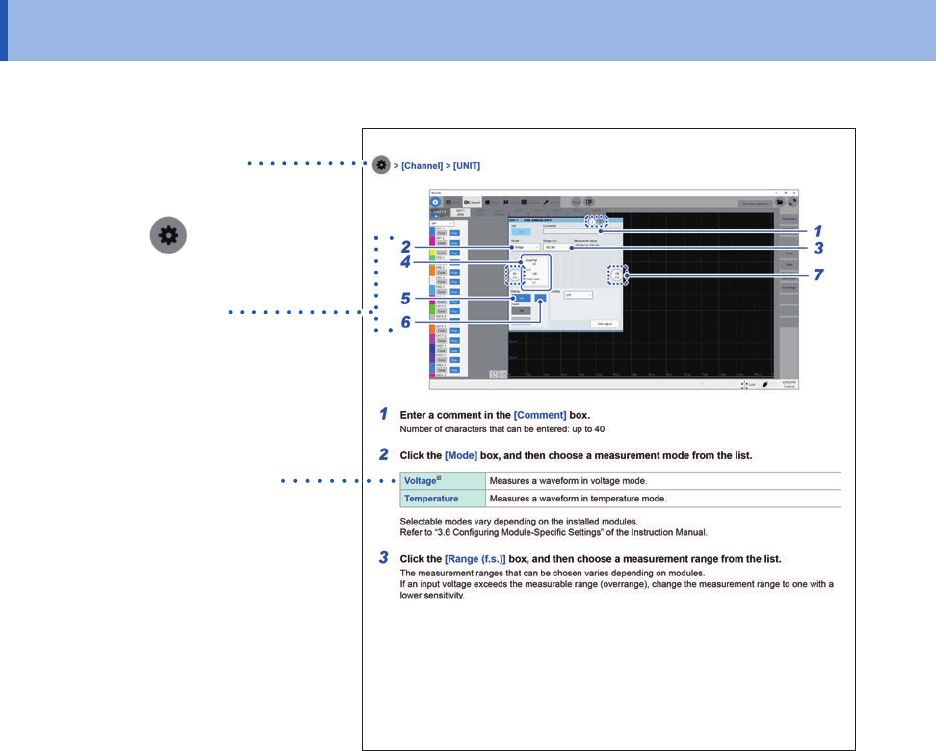

How to Refer to This Document
How to Refer to This Document
How to open a screen
Indicates the order of clicking the
screens.
The button
represents the
setting key.
Procedure numbers
Numbered same as a
corresponding step-by-step
instruction.
Options and explanations
Describes selectable settings
when an item is clicked.
The icon
indicates the default
setting of the item.
21
1
Overview

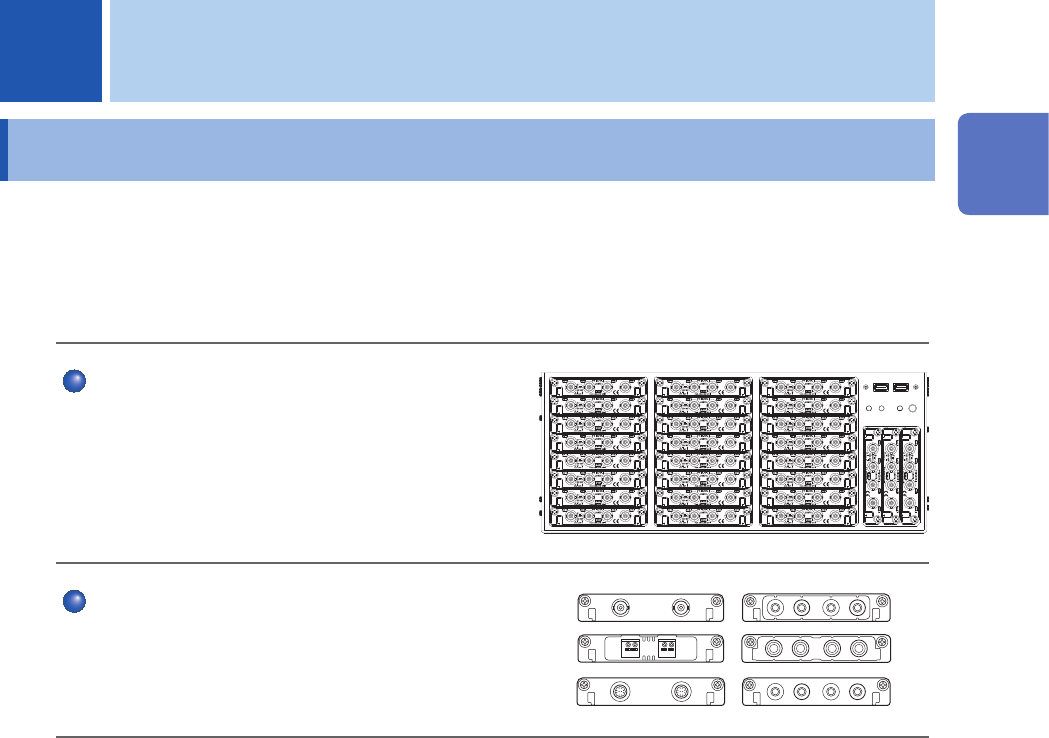

1.1 Product Overview and Features
This recorder allows you to observe a wide range of waveforms from low-speed signals to high-
speed waveforms.
You can mainly use this instrument for analyzing test and evaluation results of various products and
troubleshooting those products.
Multichannel simultaneous sampling
This instrument can simultaneously measure signals
across up to 108 channels.
Extensive line of measurement modules
Many types of measurement modules let the
instrument measure a variety of signals that include
voltage, current, temperature, and frequency.
1 Overview
1
Overview
22

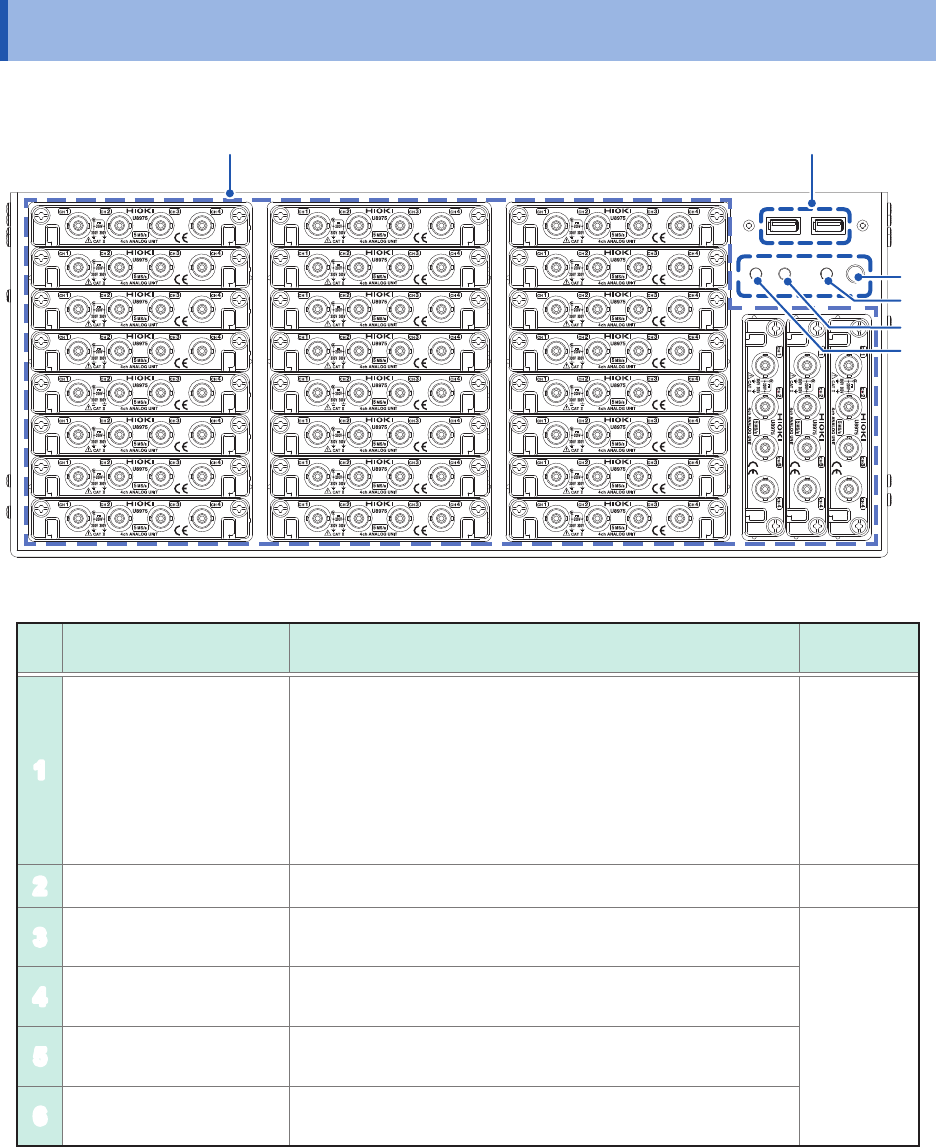

Name and Function of Each Part
1.2 Name and Function of Each Part
Front side
1
2
3
4
5
6
No. Name Function
Reference
page
1
Module embedding part
Up to 27 modules can be installed in the instrument.
You can install as many modules of Model 8971 Current
Unit and Model U8977 3CH Current Unit as possible in any
slots unless the total number of connectable current sensors
reaches nine. Model 8973 Logic Unit can be installed in slots
to which UNIT 25, UNIT 26, or UNIT 27 is assigned only.
Refer to an instruction manual that comes with each input
module.
p. 10
p. 34
2
USB2.0 connector Connect a USB ash drive, USB mouse, or USB keyboard. p. 57
3
Start button. Activates the instrument or puts it into standby when pressed.
p. 24
4
POWER lamp
Indicates whether the instrument is powered on or in standby
mode.
5
DIAG lamp Indicates instrument status.
6
Command error lamp Lights up if a command error occurs.
