67 3 Measurement Method 3.1 Inspection Before Measurement Check if there is any damage to the instrument occurred during storage or shipping and verify that it operates normally before using the instrument. If you nd an…
66
Executing Calibration (For the Instrument With Model MR8990 Installed)
67
3
Measurement Method
3.1 Inspection Before Measurement
Check if there is any damage to the instrument occurred during storage or shipping and verify that
it operates normally before using the instrument. If you nd any damage, contact your authorized
Hioki distributor or reseller.
Inspecting peripheral devices
When using probes and connecting cords
Is the insulation of each probe of each cord
damaged?
Is the metal part exposed?
Yes
Do not use them because it may
cause an electric shock.
Send instrument for repair.
When using a current sensor
Does the current sensor (jaw) have a crack or
damage?
Yes
No
No
Inspecting the instrument and modules
Are the instrument and modules damaged?
Yes
Send instrument for repair.
No
When turning on the instrument
Does Windows
®
splash screen appear on the
screen?
Yes
Does the screen display waveforms?
Yes
No
• The power cord may have a
brake or the internal circuit of
the instrument may have failed.
Send the instrument for repair.
• Make sure that the monitor is
turned on and the connection
cable is correctly attached.
If
using another monitor and cable
cannot solve the problem, the
instrument may fail. Send the
instrument for repair.
Nothing appears.
An incorrect screen
appears.
The internal circuit of the
instrument may fail. Send the
instrument for repair.
The inspection is completed.
3 Measurement Method
3
Measurement Method
68
Setting Measurement Conditions
3.2 Setting Measurement Conditions

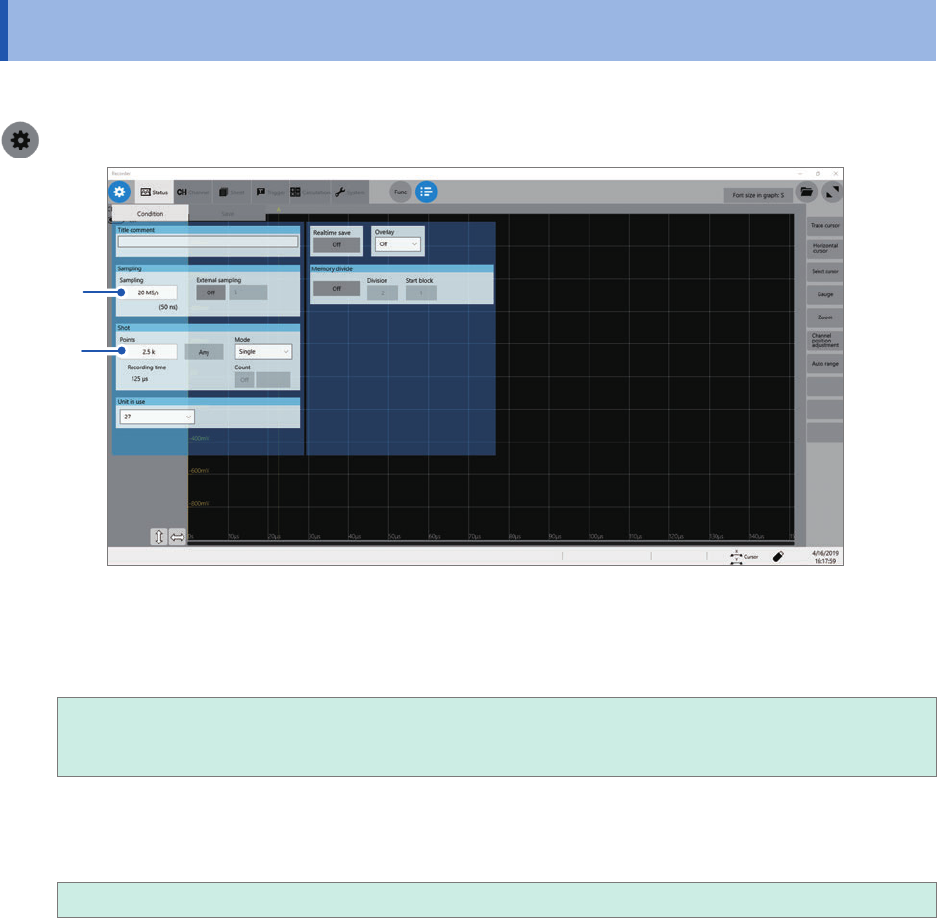

Set conditions required for measurement, such as the sampling rate and recording length.
> [Status] > [Condition]
1
2
1
Click the [Sampling] box, and then choose a sampling rate from the list.
Refer to “Sampling rate setting guideline” (p. 69).
20 MS/s, 10 MS/s, 5 MS/s, 2 MS/s, 1 MS/s
500 kS/s, 200 kS/s, 100 kS/s, 50 kS/s, 20 kS/s, 10 kS/s, 5 kS/s, 2 kS/s, 1 kS/s,
500 S/s, 200 S/s, 100 S/s, 50 S/s, 20 S/s, 10 S/s, 5 S/s, 2 S/s, 1 S/s
2
Click the [Points] box, and then choose an option for the number of points to be measured
from the list.
2.5 k
, 5 k, 10 k, 20 k, 50 k, 100 k, 200 k, 500 k, 1 M, 2 M, 5 M, 10 M, 20 M, 50 M, 100 M
