34 Installing and Removing Modules 2.1 Installing and Removing Modules If you order the instrument with modules specied, the instrument will be delivered with the modules pre-installed. Follow the procedures below to in…

100%1 / 172
33
2
Preparing for Measurement
Carefully read “Operation Precautions” (p. 8) before starting preparation.
(p. 60)
Power cord
(p. 62)
Setting the clock
(p. 63)
Zero-adjustment
(p. 57)
Storage devices
(p. 55, p. 84)
Computer
External control
terminals
(p. 53)
(p. 34)
Modules
(p. 36)
Connection cords
(p. 29)
Keyboard, mouse
2 Preparing for Measurement
2
Preparing for Measurement
34
Installing and Removing Modules
2.1 Installing and Removing Modules
If you order the instrument with modules specied, the instrument will be delivered with the modules
pre-installed. Follow the procedures below to install a module additionally, replace modules, or
remove a module. Up to four modules of Model 8971 Current Unit and up to three modules of
Model 8973 Logic Unit can be installed to the instrument.
Refer to “Handling the instrument and modules” (p. 10).
Required items: Phillips-head screwdriver (No. 2)
How to install a module
Right side
1
Orient and insert the module all the way into the
instrument.
2
Tighten the two screws with the Phillips-head
screwdriver to secure the module.
How to remove the module
Knob
1
Loosen the two module mounting screws with the
Phillips-head screwdriver.
2
Pinch the two knobs and pull out the module.
When not installing any module after removal
Install a blank panel. To order additional blank panels, contact your authorized Hioki distributor or
reseller.
Blank panel
1
Place a blank panel.
2
Tighten the two screws with the Phillips screwdriver
to secure the blank panel.
35
Installing and Removing Modules

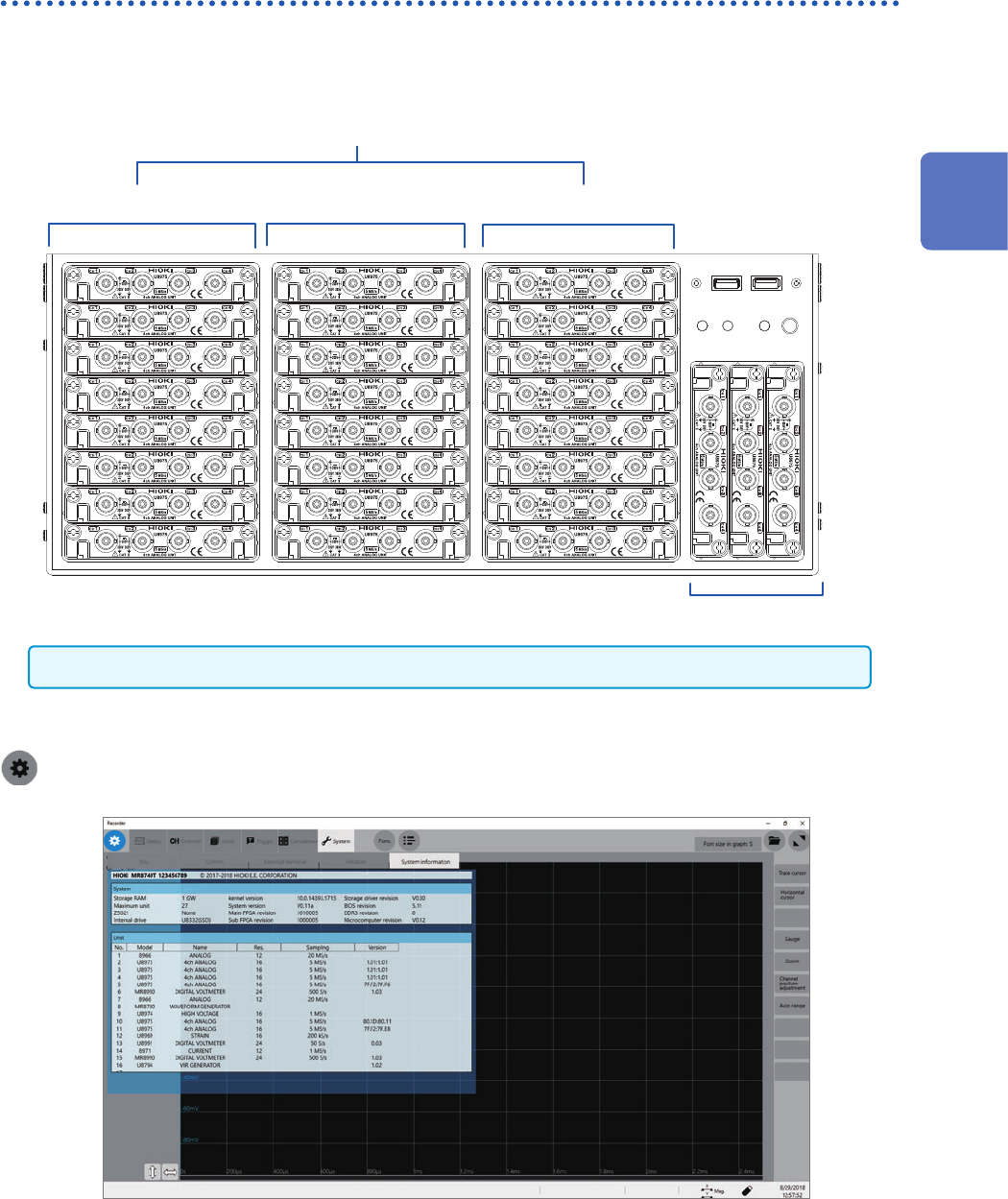

Allocation of modules and channels
Module numbers
Channel numbers
The channels are numbered
beginning from the top left.
Units 25 through 27 (L to R)
Units 1 through 8
Units 9 through 16 Units 17 through 24
Modules are numbered beginning at the top.
Model 8973 Logic Unit can be installed in slots to which Unit 25, 26, or 27 is assigned only.
You can nd out information about the modules installed in the instrument in [System information].
Refer to “System conguration check” (p. 158).
> [System] > [System information]
2
Preparing for Measurement
