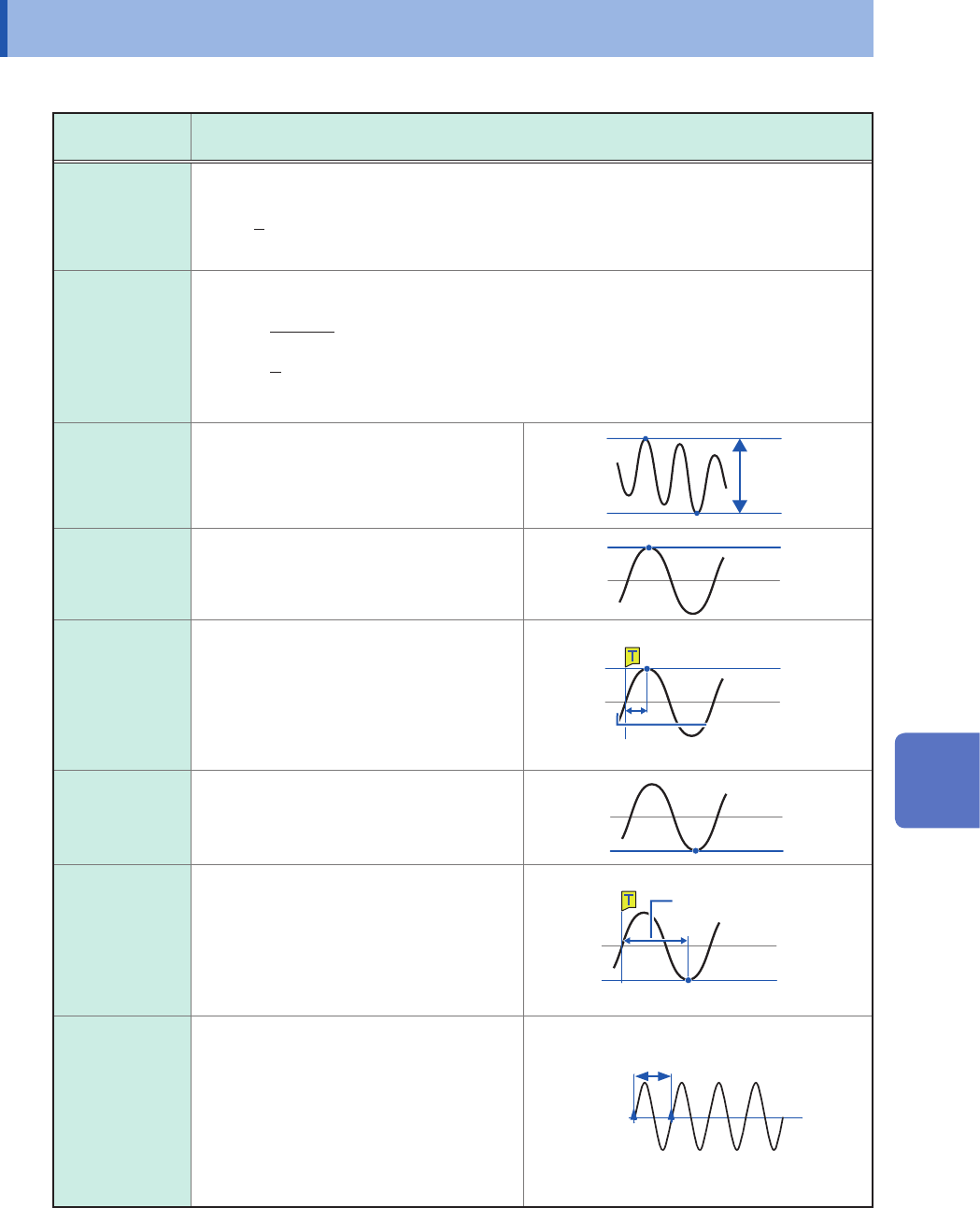

Numerical Calculation Types and Descriptions
7.4 Numerical Calculation Types and Descriptions
Calculation
type
Description
Average value
Calculates an average value of waveform data.
AV E
: Average value
n
: Number of data points
di
:
i
th data point acquired across the channel



RMS
Calculates an RMS value of waveform data. When the scaling is enabled, the instrument
scales waveform data before calculation.
RMS
: Root-mean-square value
n
: Number of data points
di
:
i
th data point acquired across the channel



P-P
Calculates a difference (peak-to-peak
value) between the maximum and
minimum values of waveform data.
Maximum
P-P
Minimum
Maximum
Calculates the maximum value of
waveform data.
Maximum
Time to
maximum
Calculates a period of time (unit: s) from a
trigger point to the maximum value.
When waveform has two or more points
of the maximum value, the instrument
determines the rst of them in the
waveform used for a calculation to be the
maximum value.
Maximum
Time to maximum
Minimum
Calculates the minimum value of
waveform data.
Minimum
Time to
minimum
Calculates a period of time (unit: s) from a
trigger point to the minimum value.
When waveform has two or more points
of the minimum value, the instrument
determines the rst of them in the
waveform used for a calculation to be the
minimum value.
Minimum
Time to minimum
Period
Frequency
Displays a period (unit: s) and frequency
(unit: Hz) of a signal waveform.
The instrument calculates a period and
frequency based on a time lag between
the time when a waveform crossed the
specied level in the positive (or negative)
direction the rst time and the time when it
next crossed the specied level.
Settings: Level, Slope, Filter, Stat.
Level at time
7
Numerical Calculation Function
152
Numerical Calculation Types and Descriptions
Calculation
type
Description

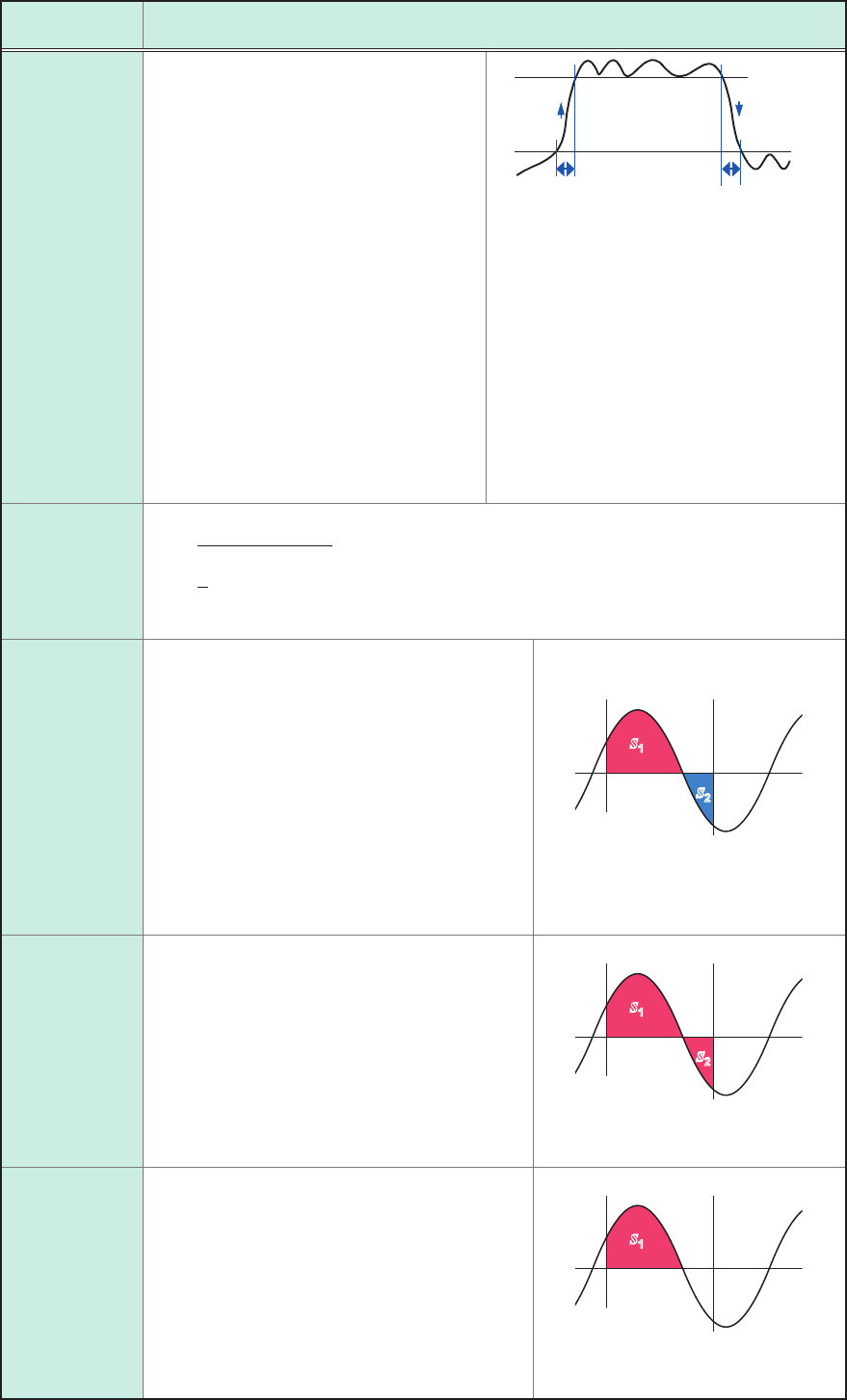

Rise time
Fall time
Calculates a A%-to-B% rise time (or a B%-
to-A% fall time; unit: s) based on the 0%
and 100% levels based on a histogram
(frequency distribution) of acquired
waveform data.
The instrument calculates a rise time (or
fall time) of the rst rising (or falling) slope
that appears in acquired waveform data.
When the range is specied, the
instrument calculates the rise time (or fall
time) of the rst rising (or falling) slope that
appears between the cursors.
The values of A and B can be specied
(unit: percent). The values of A and B
varies along with each other. When the
value of A is 5%, the value of B is specied
at 95%; when the value of A is 30%, the
value of B is specied at 70%.
Settings: Rise time (A% to B%) and Fall
time (B% to A%) values (%),
Stat.
B%
A%
Rise time Fall time
A: 5% to 30%
B: 95% to 70%
Standard
deviation
Calculates a standard deviation of waveform data.


σ
: Standard deviation
AV E
: Average value
n
: Number of data points
di
:
i
th data point acquired across the channel
Area
Method: Total
Calculates an area by subtracting an area (unit:
V·s) enclosed by the zero-level (zero-potential)
line and the negative-amplitude part of a signal
waveform from an area (unit: V·s) enclosed
by the zero-level (zero-potential) line and the
positive-amplitude part of the signal waveform.
When the range is specied, calculates the area
between the cursors.
S
: Area
n
: Number of data points
di
:
i
th data point acquired
across the channel
h
=
Δt
: Sampling interval
di h
S =
i = 1
n
s
1
sss
2
s
1
ss
2
Cursor A
Cursor B
S
=
s
1
s
2
Area
Method:
Absolute value
Calculates an area value (unit: V·s) enclosed by
the zero-level (zero-potential) line and a signal
waveform.
When the range is specied, calculates the area
between the cursors.
S
: Area
n
: Number of data points
di
:
i
th data point acquired
across the channel
h
=
Δt
: Sampling interval
|di| h
S =
i = 1
n
s
1
sss
2
s
1
ss
2
Cursor A
Cursor B
S
=
s
1
+
s
2
Area
Method:
Positive
(Only the
positive-
amplitude part)
Calculates an area enclosed by the zero-level
(zero-potential) line and the positive-amplitude
part of a signal waveform.
When the range is specied, calculates the area
between the cursors.
S
: Area
n
: Number of data points
di
:
i
th data point acquired
across the channel
h
=
Δt
: Sampling interval
di h
S =
i = 1, di > 0
n
s
1
s
1
Cursor A
Cursor B
S
=
s
1
153
Numerical Calculation Types and Descriptions
Calculation
type
Description
Area
Method:
Negative
(Only the
negative-
amplitude part)
Calculates an area enclosed by the zero-level
(zero-potential) line and the negative-amplitude
part of a signal waveform.
When the range is specied, calculates the area
between the cursors.
S
: Area
n
: Number of data points
di
:
i
th data point acquired
across the channel
h
=
Δt
: Sampling interval
di h
S =
i = 1, di < 0
n
sss
2
ss
2
Cursor A
Cursor B
S
= −
s
2
X-Y area
Method:
Coordinate
method
Calculates the area (unit: V
2
) of the gure enclosed by the X-Y composite curve. The
instrument calculates an area enclosed by the lines as illustrated below. An area can be
calculated even when no X-Y composite curve is displayed.
You can specify a calculation range on the horizontal axis (time-axis) waveform of each
channel with the cursors. The area of the X-Y composite curve is calculated within the
specied range (you cannot directly specify the range on the X-Y waveform with the
cursors).
Refer to “2.1 Reading Measured Values (Trace Cursors, Horizontal cursor)” (p. 20).
s
0
s
0
s
0
s
1
s
1
s
0
When multiple loops plot When an open curve plots
When a gure of eight plots When a spiral loop plots
S
=
n
×
s
0
S
: Area
n
: Number of loops
S
=
s
0
S
: Area
(Closed area is created
by connecting the start
and end points with a
straight line.)
Start point, end point
Start
point
End point
Start
point
End
point
Start
point
End point
S
= |
s
0
s
1
|
S
: Area
S
=
s
0
× 2 +
s
1
S
: Area
(The number of
overlapping segments
increases with a loop
count.)
X-Y area
Method:
Trapezoidal
approximation
Calculates an area (unit: V
2
) enclosed by an X-Y composite curve using the trapezoidal
approximation method. The instrument calculates an area enclosed by the lines as
illustrated below. An area can be calculated even when no X-Y composite curve is
displayed.
You can specify a calculation range on the horizontal axis (time-axis) waveform of each
channel with the cursors. The area of the X-Y composite curve is calculated within the
specied range (you cannot directly specify the range on the X-Y waveform with the
cursors).
7
Numerical Calculation Function
