MR8740T_user_manual_eng_20191016H.pdf - 第200页

195 Sending Data to a Computer With the FTP Client Function 8 Enter site information. Example: [FTP site name] : [MR8740T] [Content Directory] : Choose a directory in which data from the FTP client will be saved. Click […

100%1 / 236
194
Sending Data to a Computer With the FTP Client Function
Conguring the FTP settings
4
Click [System and Security] on
[Control Panel].
5
Click [Administrative Tools].
6
Double-click [Internet Information
Services (IIS) Manager].
7
Right-click on the item displayed
under [Connections] on the left
side of the screen to display the
shortcut menu, then click [Add
FTP Site].
Communication may be blocked
depending on the settings of the
computer-protecting software (example:
rewall).
195
Sending Data to a Computer With the FTP Client Function
8
Enter site information.
Example:
[FTP site name]: [MR8740T]
[Content Directory]:
Choose a directory in which data from the
FTP client will be saved.
Click [Next].
9
Congure the [Binding] and [SSL]
settings as follows:
[IP Address] [All Unassigned]
[Port] [21]
[Start FTP site
automatically]
Select
[SSL] [No SSL]
Click [Next].
10
Congure the [Authentication and
Authorization Information] settings
as follows:
[Authentication] Select [Basic].
[Authorization] [All users]
[Permissions]
Choose both [Read]
and [Write].
Click [Finish].
11
Connecting the Instrument to Computers
196
Sending Data to a Computer With the FTP Client Function
Congure the access user setting
Congure this setting to use the FTP client with the instrument. (See step 4 “Enter your login name
and password in the [Login] and [Password] boxes, respectively” on p. 197.)
You can use the FTP with a user name and password you specied.
11

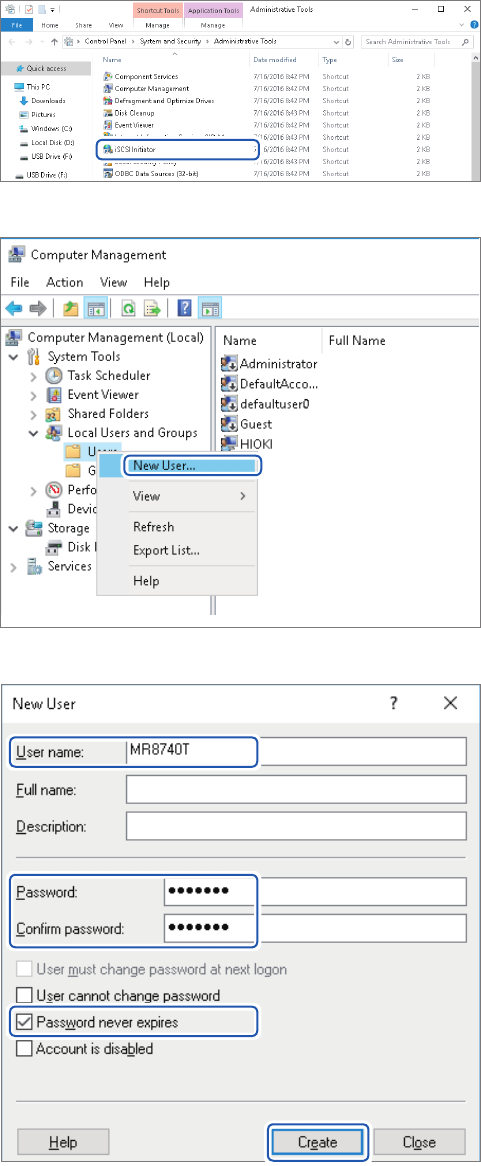

Choose [Computer Management]
in [Administrative Tools]
mentioned in step
5
(p. 194).
12
Right-click [Users] under [Local
Users and Groups], then choose
[New User].
13
Enter your user name, password,
and the same password entered
in the [User name], [Password],
and [Conrm password] boxes,
respectively, then select the
[Password never expires] check
box.
14
Click [Create].
