66
Conguring Generator-Module-Specic Settings
3.7 Conguring Generator-Module-Specic Settings
You can congure generator module settings on the dedicated setting screen.
You can congure settings of MR8790 Waveform Generator Unit, MR8791 Pulse Generator Unit,
and U8794 VIR Generator Unit using the instrument.
>[Func]> [Generator Setting].
2
1
1
Click [Func].
2
Click [Generator Setting].
The setting screen dedicated for the generator modules.
The slots generator modules are installed in and model names are displayed in the left-hand side of
the setting screen
Slots in which generator modules are installed cannot be used for measurement.
67
Conguring Generator-Module-Specic Settings

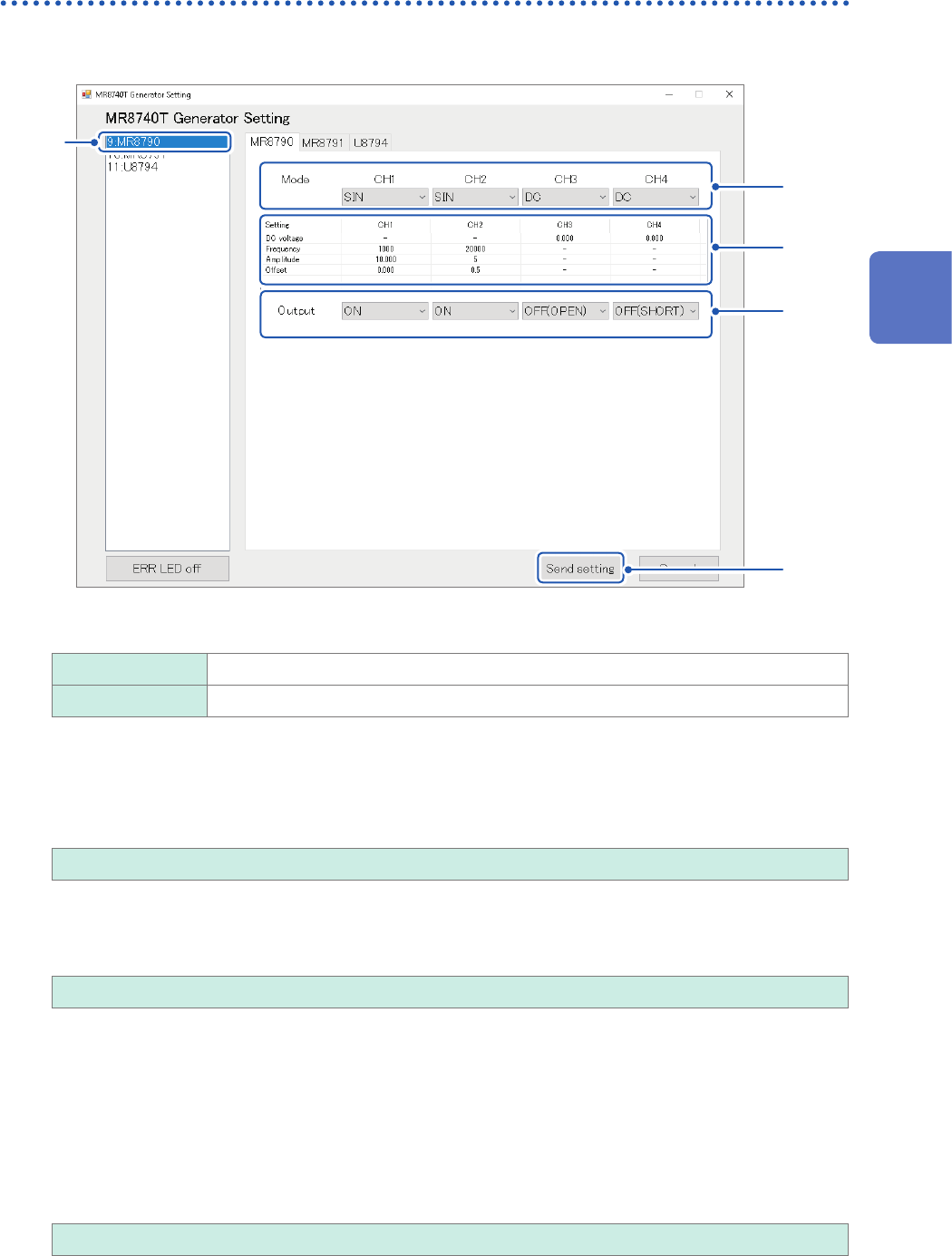

Conguring Model MR8790 Waveform Generator Unit setting
1
Click [MR8790].
5
1
3
2
4
2
Allows you to choose a waveform type
DC
Outputs a DC signal.
SIN Outputs a sine wave signal.
3
Congure the advanced output settings.
DC voltage
Allows you to enter a DC voltage.
−10.000 V to +10.000 V
Frequency
Allows you to enter a frequency of the output sine wave.
0 Hz to 20000 Hz
Amplitude
Allows you to enter an amplitude of the output sine wave.
Accuracy of the output voltage, which consists of amplitude and an offset value, is guaranteed in the
range of −10 V to +10 V.
An output waveform will appear with its upper parts limited to about +14 V and lower about
−14 V when the sum of the amplitude and offset value is set to out of the accuracy-guaranteed
range.
0.000 V p-p to 20.000 V p-p
3
Advanced Functions
68
Conguring Generator-Module-Specic Settings
Offset
Allows you to set an offset of the output sine wave.
Accuracy of the output voltage, which consists of amplitude and an offset value, is guaranteed in
the range of −10 V to +10 V.
An output waveform will appear with its upper parts limited to about +14 V and lower about −14 V
when the sum of the amplitude and offset value is set to out of the accuracy-guaranteed range.
−10.000 V to +10.000 V

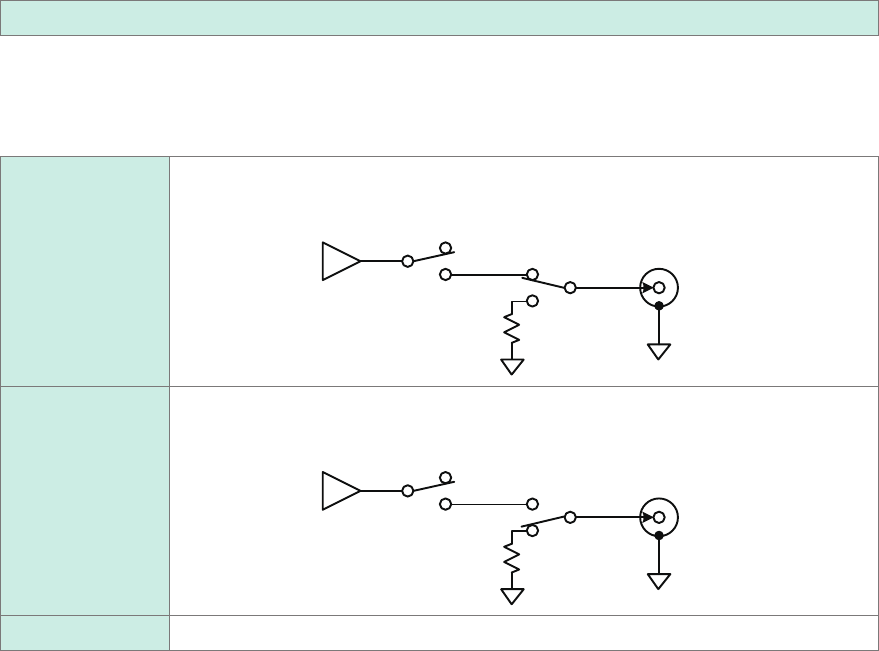

4
Choose whether to output a waveform.
Select a state at the time when no waveform is outputted
OFF (OPEN)
Does not output any waveform
Disconnect the output terminals from the internal circuit and short-circuits the terminal.
Internal
circuit
Output
terminal
OFF (SHORT)
Does not output any waveform
Disconnect the output terminals from the internal circuit and short-circuits the terminal.
Internal
circuit
About 20
Ω
Output
terminal
ON Outputs a waveform
5
Click [Send setting].
The instrument conrms the settings and outputs a waveform.
