(B01_06) Feeder Fixed Select "Enable" or "Disable" to determine whether or not the feeder positions should be fixed in place. When "Enable" is selected, the feeder No. (Fdr No.) and the comp…
(B01_02) Component ID
Set component IDs in the text boxes.
(B01_03) C
Set control commands in the text boxes.
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen) : This command handles the steps as those for the
placement feeder location data.
E:This command shows the end of the placement feeder
location data.
The step where "E" is set is valid.
S:This command invalidates the steps specified as place-
ment feeder location data.
X:This command invalidates the steps specified as place-
ment feeder location data and shows the end of the
data.
(B01_04) Comment
A comment can be entered for each feeder No. (Fdr No.).
Up to 32 characters (alphanumerics and marks) can be used.
(a) The performance of the machine is not affected by these comments.
In other words, it has nothing to do with or without these comments.
(b) It is recommended to set helpful information on components related
to the feeder Nos. (Fdr Nos.).
(B01_05) Dual Fdr
Select one of the following options as the data for the dual tape feeder.
-:The dual tape feeder is not used.
A: Components are picked up from Side A of the dual tape feeder.
B: Components are picked up from Side B of the dual tape feeder.
Note
2.4 Placement Feeder Location Data
0412-003 2-43 AIM01EDTP
Comment
Fig. 3B80
-
C
Fig. 3B79
Dual Fdr
Fig. 3B81
-
C1005T05B0---
Component ID
Fig. 3B78
Notice
(B01_06) Feeder Fixed
Select "Enable" or "Disable" to determine whether or not the feeder
positions should be fixed in place.
When "Enable" is selected, the feeder No. (Fdr No.) and the compo-
nent ID are not affected by any insert and delete operations of a com-
ponent.
Disable : The feeder position is not fixed.
Enable : The feeder position is fixed.
(B01_07) Feeder Alternate
Select "Enable" or "Disable" to determine whether or not the feeder
alternate function should be used.
Disable : The feeder alternate function is not used.
Enable : The feeder alternate function is used.
(B01_08) Fdr No.
When "Enable" is selected for the feeder alternate function, set the
destination feeder No. (Fdr No.) of the feeder that will work in place of
the feeder where a component shortage error has occurred.
2.4 Placement Feeder Location Data
0404-002 2-44 AIM01EDTP
Feeder Alternate
Fig. 3B83
Disable
000 (000)Fdr No.
Fig. 3B84
Feeder Fixed
Fig. 3B82
Disable
2.5 Placement Data

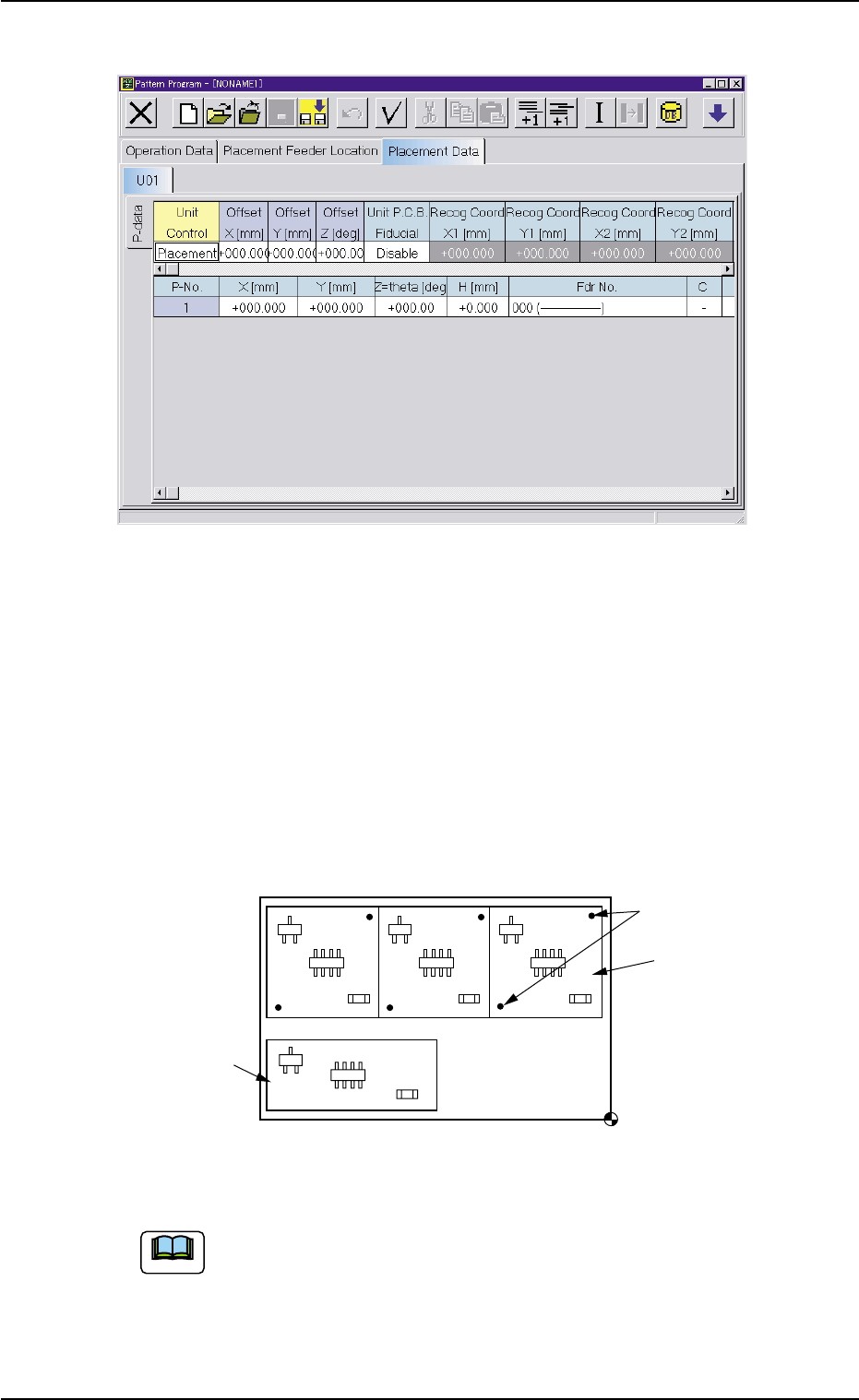

Fig. 3B85 Edit Window (Example)
(C01) Placement Data Un
(C01_01) Placement Data Unit Designation
Select one of the following tabs (placement data groups) in
one pattern program.
U01 : First Placement Data Group
U02 : Second Placement Data Group
↓
Un : Up to 99 placement data groups can be specified.
Fig. 3B86 Example of Placement Data (TCM-X210)
(a) "U01" is used in normal cases.
(b) The operation and feeder location data are used commonly.
(c) Refer to "2.1Types of P.C.B.’s and Required Data" and "Exemplified
Data Creation" for details.
(d) The placement coordinate reference of TCM-X110 is "Rear Left".
U02
U01
Fiducial Marks
Placement Coordinate Reference Point
Note
2.5 Placement Data
0305-001 2-45 AIM01EDTP
