0305-001 2-66 AIM01EDTP 3 .3 Repetitive Patterns (1) Information on Pattern Program Creation • P .C.B. Size and Packaged Posture & IDs of Components Follow the same procedure as described in "3.1 Single Pattern&…
(4) Placement Data (P-data) U01
• Unit Control
Follow the same procedure as described in "3.1 Single Pattern".
• Unit P.C.B. B.B.R.
Follow the same procedure as described in "3.1 Single Pattern".
• Placement Data (P-data)
Follow the same procedure as described in "3.1 Single Pattern".
(5) Placement Data (O-data) U01
Do not make this data.
0305-001 2-65
AIM01EDTP
3.2 Single Pattern (P.E.C. Recognition Function Enabled)
0305-001 2-66 AIM01EDTP
3.3 Repetitive Patterns
(1) Information on Pattern Program Creation
• P.C.B. Size and Packaged Posture & IDs of Components
Follow the same procedure as described in "3.1 Single Pattern".
• Placement Coordinates and Angles (Z=Theta)

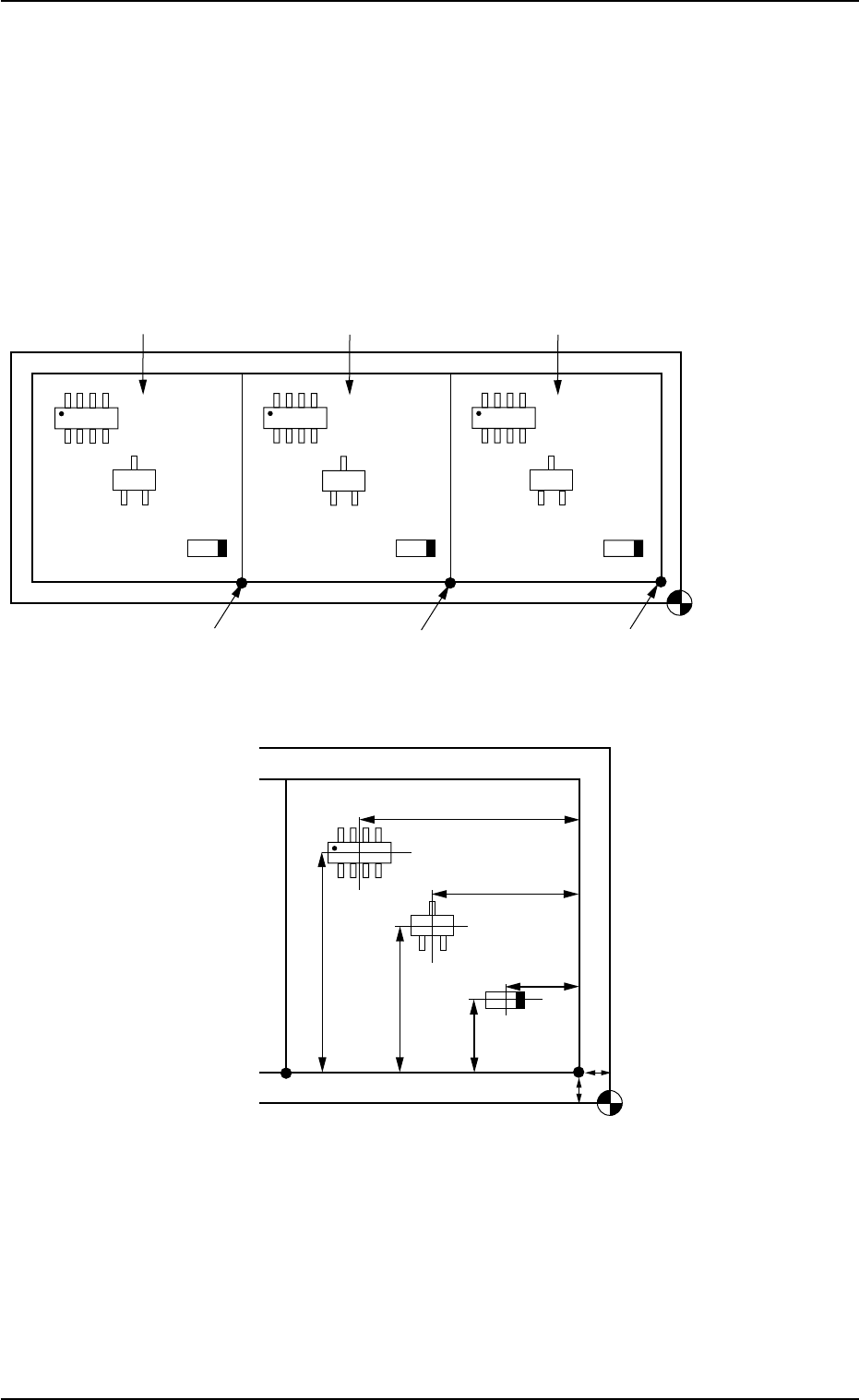

Fig. 3B127 General View
Fig. 3B128 Pattern 1 (Magnified View)
Placement Coordinate
Reference Point
(OX1, OY1)
(OX2, OY2)
Pattern Origin (OX3, PY3)
Pattern 1Pattern 2
Pattern 3
Placement Coordinate
Reference Point
X
3
Y
3
X
2
Y
2
X
1
OX
1
Y
1
OY
1
3.3 Repetitive Patterns
(2) Creation of Operation Data
• P.C.B. Data
Follow the same procedure as described in "3.1 Single Pattern".
• P.E.C. Recognition Data
Set "Disable" in the "P.E.C. recognition function" text box.
Do not set any parameter in the other text boxes.
• P.E.C. Recognition Mark Data
Do not create this data.
• Setup Data
Create this data when the automatic setup function should be used.
(3) Creation of Placement Feeder Location Data
Follow the same procedure as described in "3.1 Single Pattern".
(4) Creation of Placement Data (P-data) U01
• Unit Control
Follow the same procedure as described in "3.1 Single Pattern".
• Unit P.C.B. B.B.R.
Set "Disable" in this text box.
Do not set any parameter in the other text boxes.
• Placement Data (P-data)
Table 3B24
P-No. X [mm] Y [mm] Z
= =
= =
= theta [deg
]]
]]
] H [mm] Fdr. No. V C Comment
1 X
1
Y
1
+000.00 +0.000 101 00 -
2 X
2
Y
2
+090.00 +0.000 103 00 -
3 X
3
Y
3
+180.00 +0.000 105 00 -
4 +000.000 +000.000 +000.00 +0.000 000 00 P
Set "P" or "Q" as a control command in the last line (last step
No.).
(5) Creation of Placement Data (O-data) U01
Table 3B25
O-No. X [mm] Y [mm] Z = theta [deg] C Comment B-X [mm] B-Y [mm]
1 OX
1
OY
1
+000.00 - +000.000 +000.000
2 OX
2
OY
2
+000.00 - +000.000 +000.000
3 OX
3
OY
3
+000.00 - +000.000 +000.000
4 +000.000 +000.000 +000.00 E +000.000 +000.000
0305-001 2-67 AIM01EDTP
3.3 Repetitive Patterns
Note
