*7 Outward length detn Outward length tol [mm] When "Enable (Mnl)" is set in the "Outward length detn" text box, it is required to enter a parameter in the text box. When "Connector (Simple)"…
0510-002 3-30 AIM01EDTP
3.3 "Recognition Data" Tab
3.3.2 IC (Simple), IC (Complex), Other Leaded (Simple),
Other Leaded (Complex), Connector (Simple),
Connector (Complex)

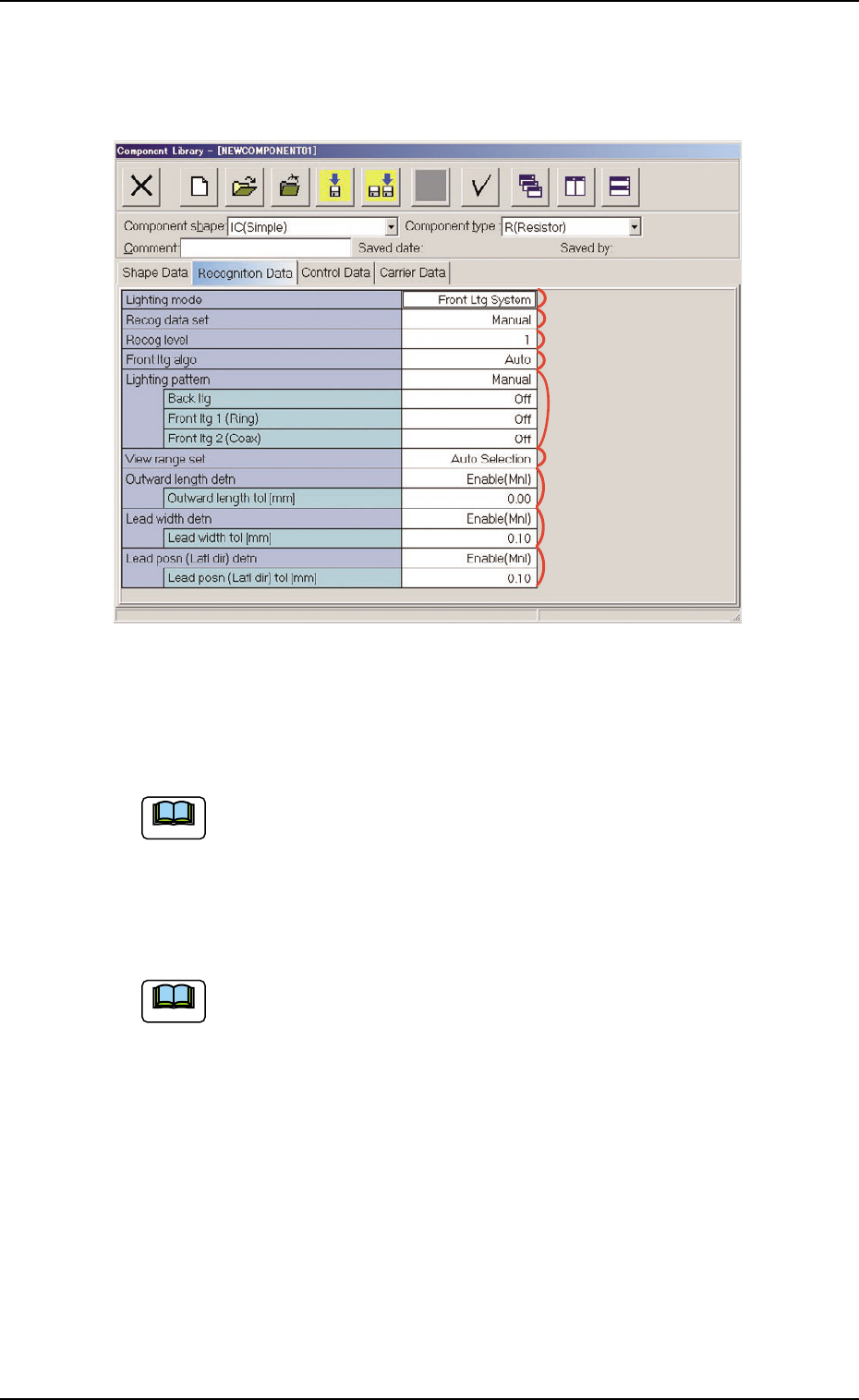

Fig. 3C20 "Recognition Data" Tab Sheet ("IC (Simple)" Selected)
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-
formation on how to enter each parameter.
*1 Lighting mode, *2 Recog data set, *3 Recog level,
*4 Back ltg algo (Front ltg algo), *6 View range set
"Back ltg algo" or "Front ltg algo" appears in "*4", depending on
which lighting mode is selected in the "Lighting mode" text box.
*5 Lighting pattern
Back ltg, Front ltg 1 (Ring), Front ltg 2 (Coax)
When "Manual" is set in the "Lighting pattern" text box, it is re-
quired to enter parameters in these text boxes.
Note
Note
*5
*1
*2
*6
*7
*3
*4
*8
*9
*7 Outward length detn
Outward length tol [mm]
When "Enable (Mnl)" is set in the "Outward length detn" text box,
it is required to enter a parameter in the text box.
When "Connector (Simple)", "Connector (Complex)", "Other
Leaded (Simple)", or "Other Leaded (Complex)" is selected in
the "Component shape" text box, "Outward length detn" does
not appear.
*8 Lead width detn
Lead width tol [mm]
When "Enable (Mnl)" is set in the "Lead width detn" text box, it is
required to enter a parameter in this text box.
When "Connector (Simple)" or "Connector (Complex)" is se-
lected in the "Component shape" text box, "Lead width detn"
does not appear.
*9 Lead posn (Latl dir) detn
Lead posn (Latl dir) tol [mm]
When "Enable (Mnl)" is set in the "Lead posn (Latl dir) detn" text
box, it is required to enter a parameter in this text box.
0510-002 3-31
AIM01EDTP
3.3 "Recognition Data" Tab
Note
Note
3.4 "Control Data" Tab
The corresponding tab sheet appears when "Cylindrical", "Square", "De-
form (Simple)", "IC (Simple)", "IC (Complex)", "Connector (Simple)",
"Connector (Complex)", "Other Leaded (Simple)", or "Other Leaded
(Complex)" is selected in the "Component shape" text box.
• Sheet Layout
When the "Control Data" tab is pressed, the "Control Data" tab sheet
appears.
Fig. 3C22 "Control Data" Tab Sheet ("Cylindrical" Selected)
• Sheet Composition
Enter a parameter in the text box.
Refer to "4.1.3 Basic Usage of Text Boxes" (Section 2) for the
detailed information on how to enter each parameter.
*1 Speed Data, *2 Selected nozzle,
*3 Placement height feedback, *4 Cmpnt thickness check [mm],
*5 Vertical cmpnt data [mm] *6 Pickup level [mm],
*7 Placement level [mm],
0510-002 3-32
AIM01EDTP
*2
*1
*3
*4
*5
*6
*7
3.4 "Control Data" Tab
Note
