3 .2 "Device Offset" T ab This session describes how to set various kinds of offset data for each device position adjustment related to machine operation, for the cam- era system related to placement accuracy ,…
3. "System" Window
3.1 Outline of "System" Window
The "System" window is composed of the following items.
"System" Window
Tab Tabs (Tab Sheets) Reference Item Nos.
Device Offset (3.2) Device Offset (3.2.1)
Head (3.2.2)
CPK Offset (3.2.3)
Feeder-A (3.2.4)
Feeder-B (3.2.4)
Nozzle (3.2.5)
Camera Offset (3.2.6)
Lighting (3.2.7)
Auto Operation (3.3) Auto Operation Setup (3.3.1)
P.C.B. Transfer Mode Setup (3.3.2)
Configuration Setup (3.4) Light Tower Setup (3.4.1)
Alarm Setup (3.4.2)
Fig. 3E10
(3.2) through (3.4.2) show the item Nos. to be referred to.
0403-002 5-10
AIM01EDTP
3. "System" Window
Note
3.2 "Device Offset" Tab
This session describes how to set various kinds of offset data for each
device position adjustment related to machine operation, for the cam-
era system related to placement accuracy, for the heads, and for the
nozzles.
Do not change the parameters unless necessary. These parameters
are factory-adjusted upon shipment of the machine.
• Some parameters are automatically calculated through teaching op-
erations.

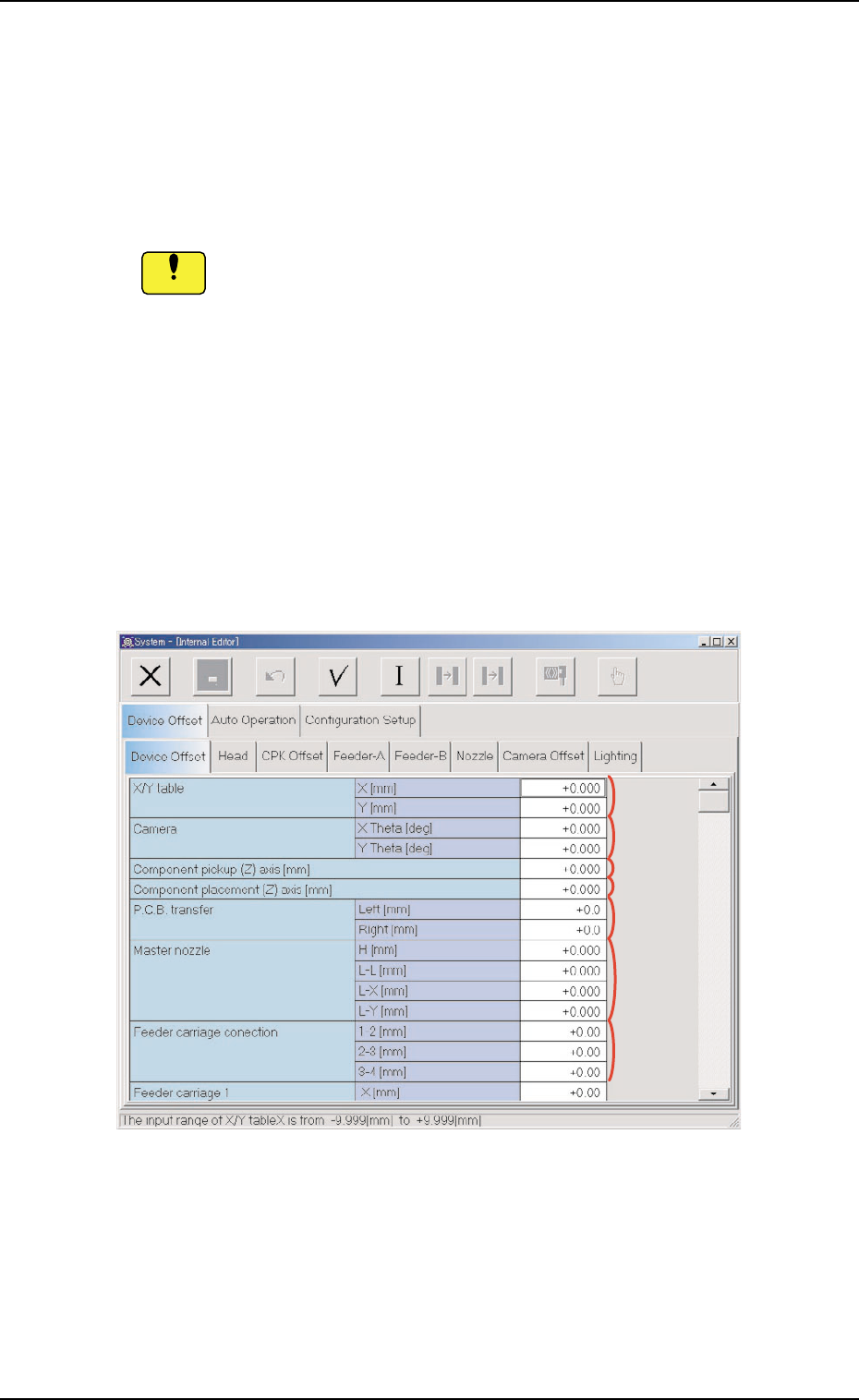

3.2.1 "Device Offset" Tab
• Sheet Layout
When the "Device Offset" tab is pressed in the "Device Offset" tab sheet,
the following tab sheet appears.
Fig. 3E11 "Device Offset" Tab Sheet
0412-002 5- 11
AIM01EDTP
*1
*2
*3
*4
*5
*6
*7
3.2 "Device Offset" Tab
Notice

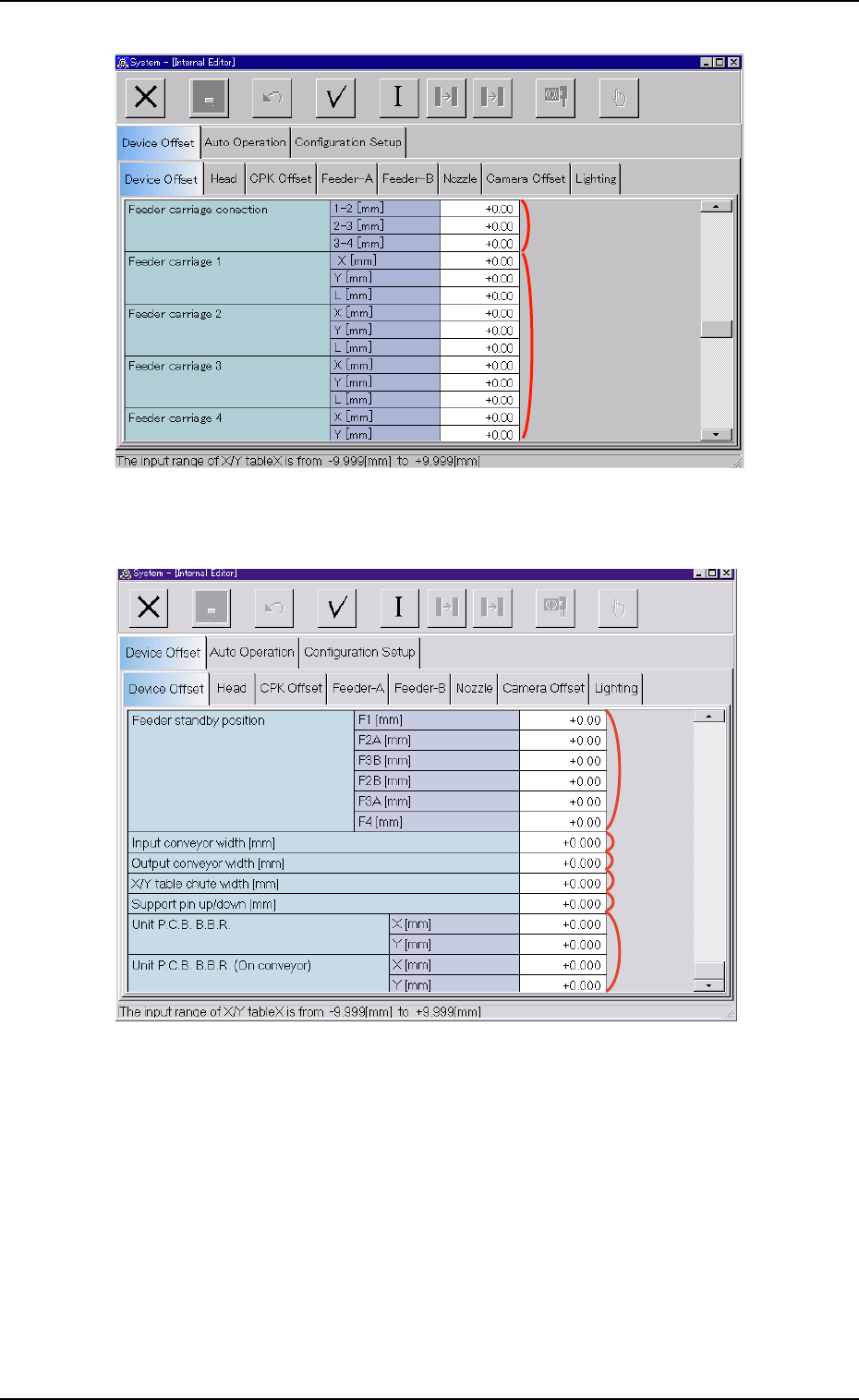

Fig. 3E12
Fig. 3E13
3.2 "Device Offset" Tab
*7
*8
*10
*9
*11
*12
*13
*14
0305-001 5-12 AIM01EDTP
