2. Pattern Program
2.1 Types of P.C.B.’s and Required Data
The following shows typical examples (applications) of each data.
Refer to the examples for creation of a pattern program.
Marks in "Required Data"
: This means that you must refer to the description of the
pattern program data and create the data correctly.
: This means that you must refer to the description of the
pattern program data and set "Disable" for the pertinent func-
tions.

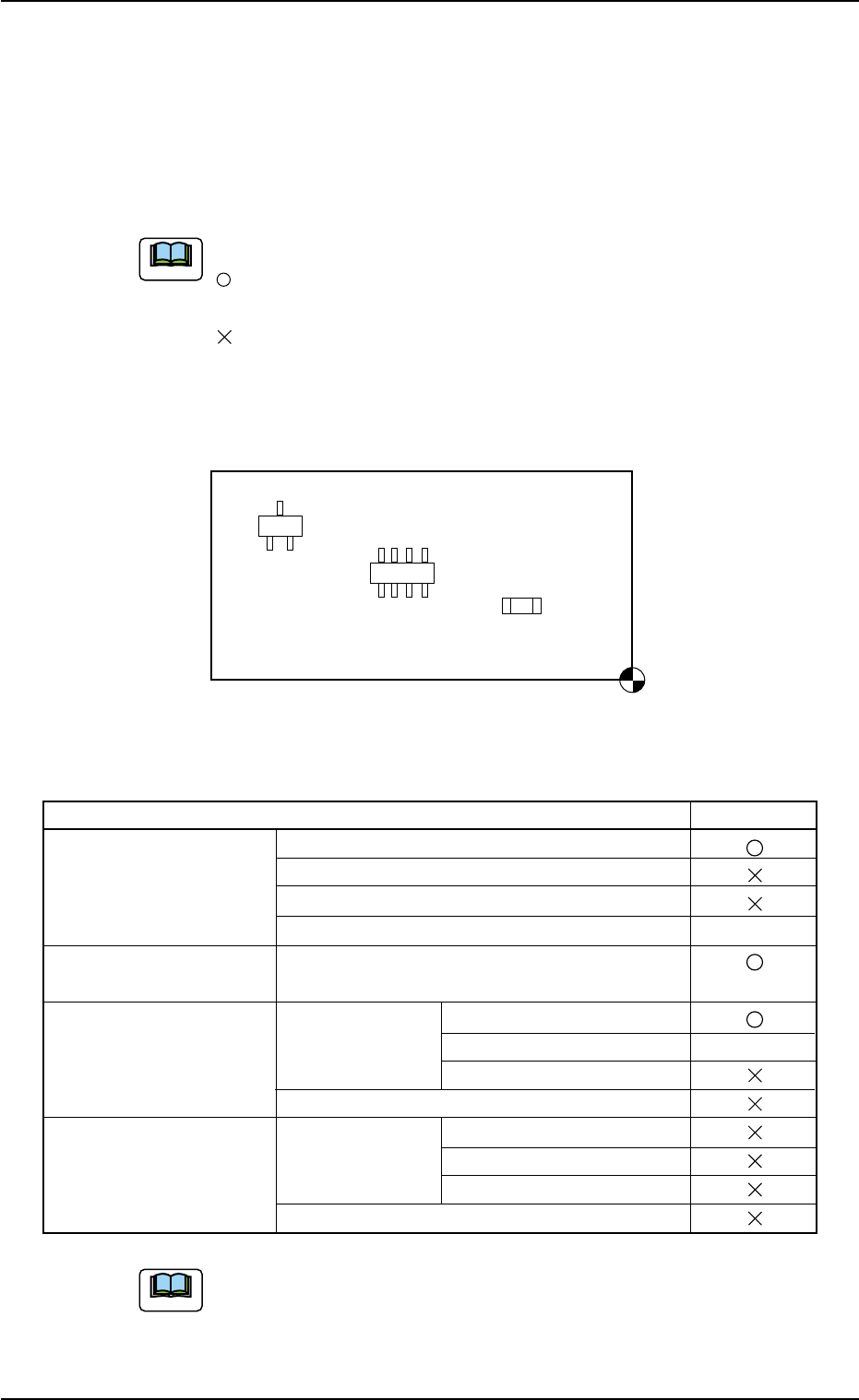

(1) Single Pattern
Fig. 3B2
List of Required Data Table 3B9
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
Placement Coordinate Reference Point
Note
Note
0305-001 2-7 AIM01EDTP
2. Pattern Program

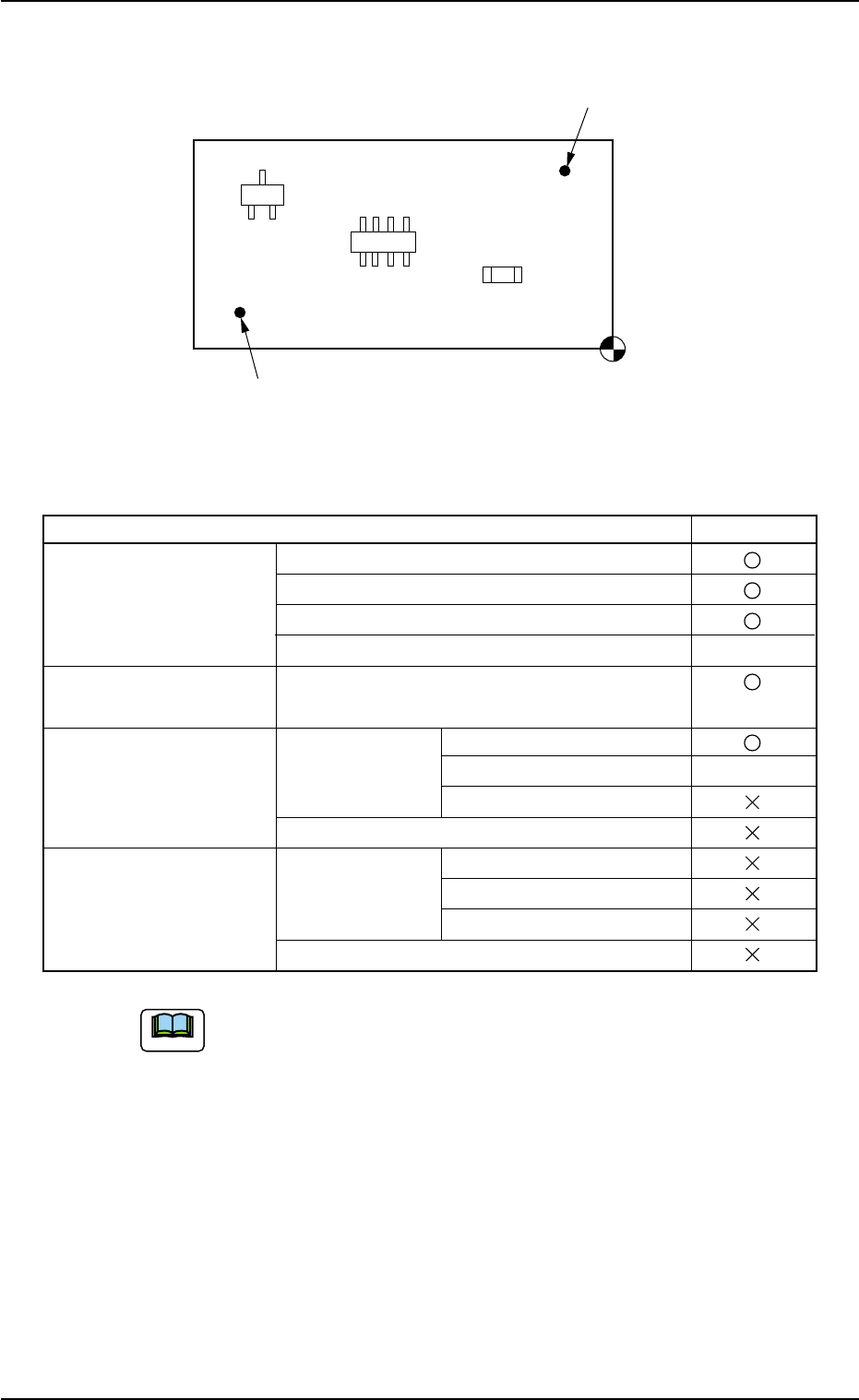

(2) Single Pattern (P.E.C. Recognition Function Enabled)
Fig. 3B3
List of Required Data Table 3B10
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
P.E.C. Recognition Mark
P.E.C. Recognition Mark
Placement Coordinate
Reference Point
2.1 Types of P.C.B.’s and Required Data
Note
0305-001 2-8 AIM01EDTP

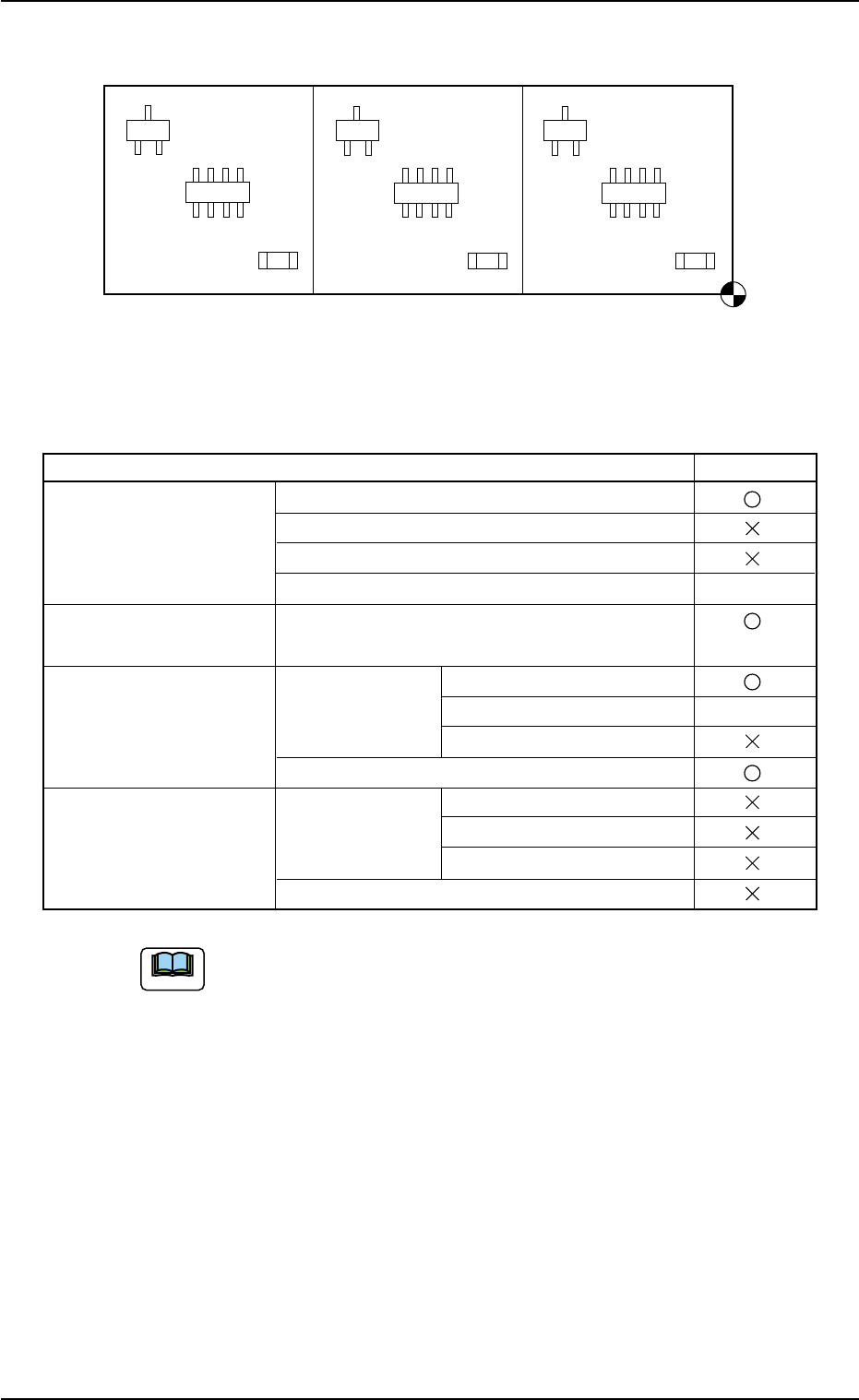

(3) Repetitive Pattern
Fig. 3B4
List of Required Data Table 3B11
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
Placement Coordinate Reference Point
2.1 Types of P.C.B.’s and Required Data
0305-001 2-9 AIM01EDTP
