2 .2 Pattern Program Name T o save a pattern program, it is required to give a name to the program. Up to 32 characters (alphanumerics and marks) can be used. 2 .3 Operation Data ( A0 1 ) P .C.B. Data Fig. 3B8 Edit Windo…

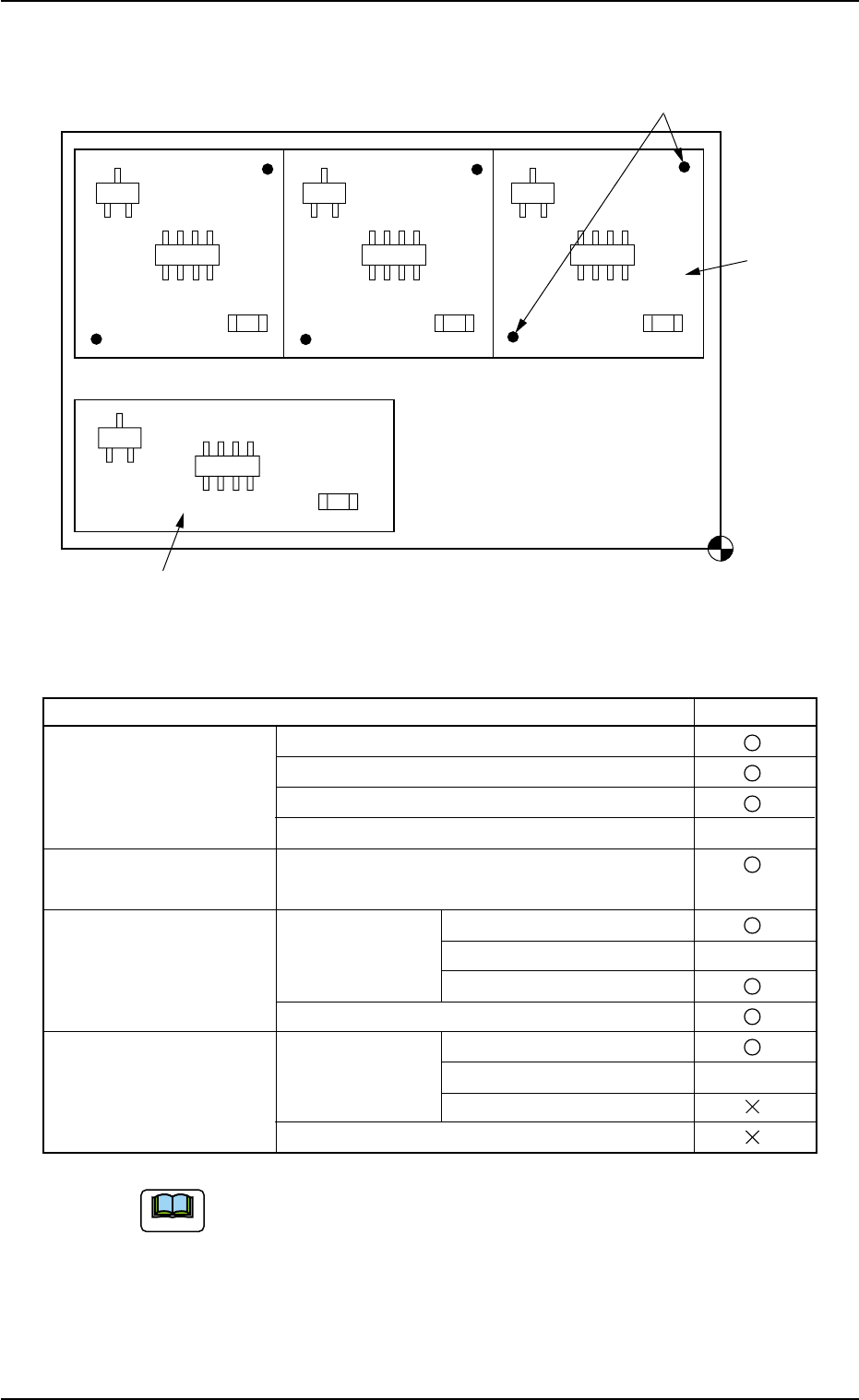

(6) Multi-Model Repetitive Pattern (Unit P.C.B. B.B.R. Enabled)
Fig. 3B7
List of Required Data Table 3B14
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
P.E.C. Recognition Marks
U02
U01
Placement Coordinate Reference Point
2.1 Types of P.C.B.’s and Required Data
0305-001 2-12 AIM01EDTP
Note
2.2 Pattern Program Name
To save a pattern program, it is required to give a name to the program.
Up to 32 characters (alphanumerics and marks) can be used.
2.3 Operation Data
(A01) P.C.B. Data

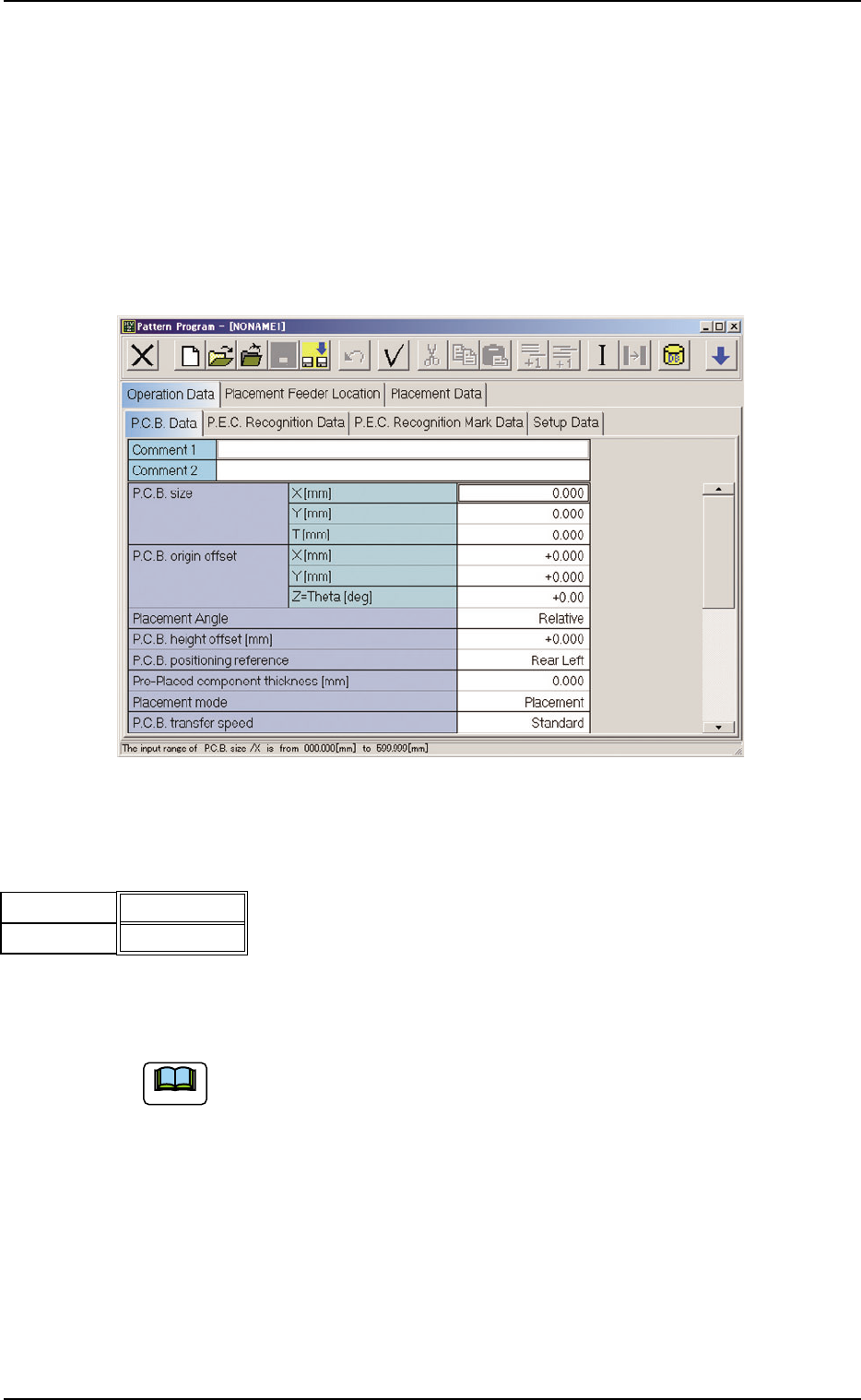

Fig. 3B8 Edit Window (Example)
(A01_01) Comment 1, 2
Comments on the pattern program can be specified in these text boxes.
Up to 32 characters (alphanumerics and marks) can be used.
The performance of the machine is not affected by these comments. In
other words, it has nothing to do with or without these comments.
2.2 Pattern Program Name
Note
0510-002 2-13 AIM01EDTP
Fig. 3B9
Comment 1
Comment 2
(A01_02) P.C.B. size
X [mm], Y [mm], and T [mm]
Set the dimensions of the P.C.B. to be produced.
Unit: mm
Fig. 3B11
When the P.C.B. has a cutout, the following dimensions must
be entered.
Note: TCM-X110 cannot position a P.C.B. that has a cutout
like one in the figure below.
Fig. 3B12
Data Input Range
TCM-X110 TCM-X110M
X: 50 to 330 Y: 50 to 250 T: 0.5 to 5.0
TCM-X210
X: 50 to 460 Y: 50 to 381 T: 0.5 to 5.0
TCM-X300
• P.C.B. Origin Position : [to R460 mm]
X: 50 to 460 Y: 50 to 460 T: 0.5 to 5.0
• P.C.B. Origin Position : [to R510 mm]
X: 50 to 510 Y: 50 to 460 T: 0.5 to 5.0
• P.C.B. Origin Position : [to R560 mm]
X: 50 to 560 Y: 50 to 460 T: 0.5 to 5.0
• P.C.B. Origin Position : [to R610 mm]
X: 50 to 610 Y: 50 to 460 T: 0.5 to 5.0
330.000
250.000
1.600
X [mm]
Y [mm]
T [mm]
Fig. 3B10
2.3 Operation Data
0404-002 2-14 AIM01EDTP
P.C.B.
P.C.B. Flow Direction
Y (Vertical)
X (Horizontal)
T (Thickness)
Y (Vertical)
X (Horizontal)
T (Thickness)
P.C.B.
P.C.B. Flow Direction
