4.4.2 "P-data" Tab
The corresponding tab sheet can be used to edit the placement data (P).
• Sheet Layout
When the "P-data" tab is pressed in the "Placement Data" tab sheet,
the following tab sheet appears.

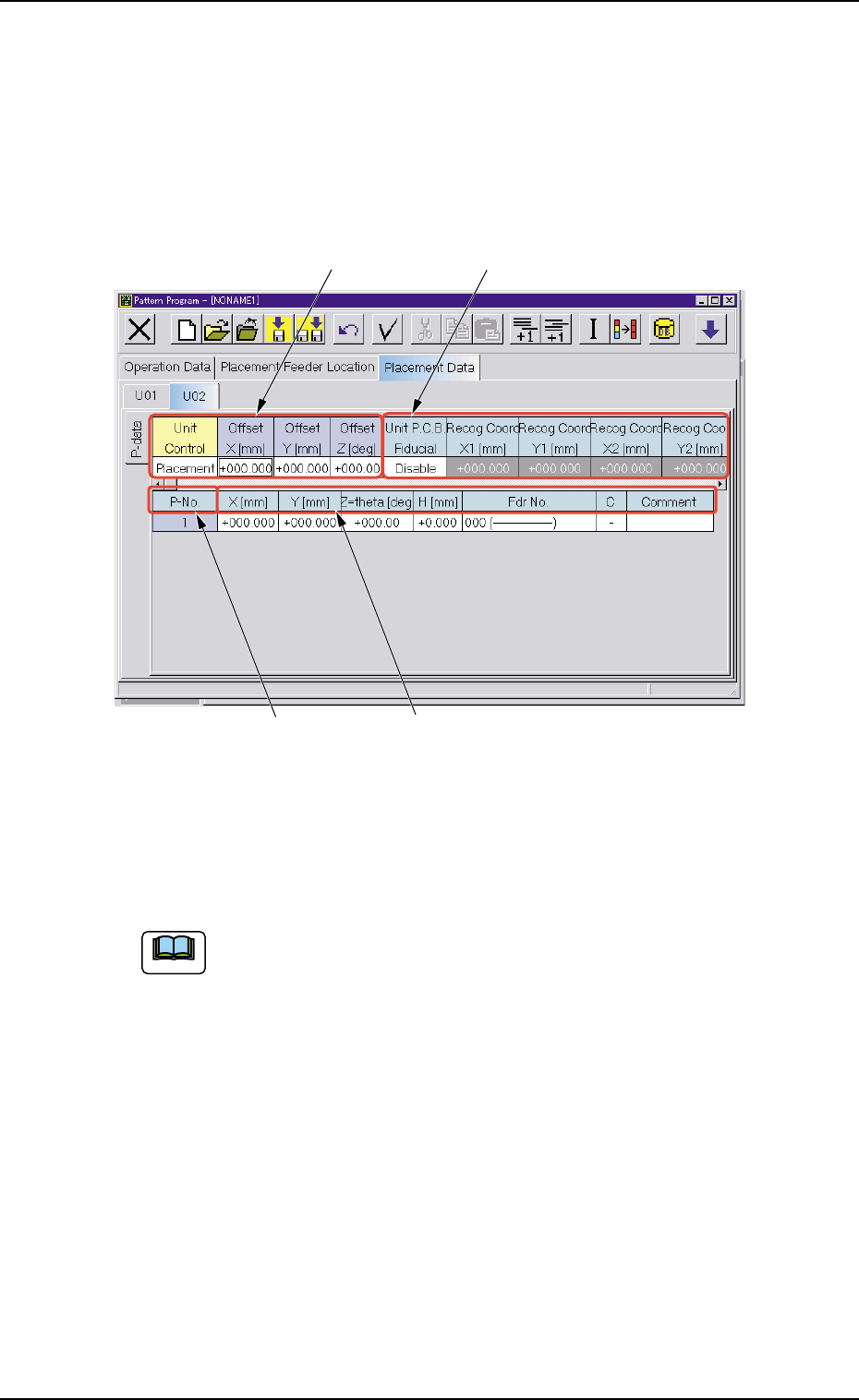

Fig. 3B170 "P-data" Tab Sheet
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-
formation on how to enter each parameter.
*1 Unit Control, Offset X [mm], Offset Y [mm], and Offset Z [deg]
*2 Unit P.C.B. Fiducial
Recog Coord X1 [mm], Recog Coord Y1 [mm], Recog Coord
X2 [mm], Recog Coord Y2 [mm], Fiducial Mark FM1, and Fi-
ducial Mark FM2
When "Enable" is set for "Unit P.C.B. Fiducial", it is required to
enter a parameter in each text box.
*1 *2
*3 *4
0305-001 2-109 AIM01EDTP
Note
4.4 "Placement Data" Tab
*3 P-No.
Shown are the step Nos.
Refer to "• Operation Procedure" (described later) for the
detailed information on how to add or delete a step No. (P-
No.).
*4 X [mm], Y [mm], Z
= =
= =
= theta [deg], H [mm], Fdr No., C, Comment
• Operation Procedure
Addition of Step (P-No.)
(1) When the [Add One Line] icon (
) is selected, a new step (line)
is added to the last one (last P-No.).
Insertion of Step (P-No.)
(1) Select a new step (P-No.) to be inserted with the touch screen or
the pointing device.
(2) When the [Insert One Line] icon (
) is selected, a step (line) is
inserted at the selected position and the subsequent steps (P-
Nos.) are shifted down.
Deletion of Step (P-No.)
(1) Select the step (P-No.) to be deleted with the touch screen or the
pointing device.
(2) When the [Cut] icon [
] is selected, the selected line (P-No.)
is deleted and the subsequent lines (Fdr Nos.) are shifted up.
Step (P-No.) Copy and Paste Commands
(1) Select the step (P-No.) to be copied with the touch screen or the
pointing device.
(2) When the [Copy] icon ( ) is selected, the selected line (P-No.)
is copied.
(3) Select the position where the copied step (P-No.) should be
pasted.
(4) When the [Paste] icon [ ] is selected, the selected line (P-
No.) is pasted.
Note
0305-001 2-110 AIM01EDTP
4.4 "Placement Data" Tab
Transfer of P-No.
(1) Select the P-No. to be transferred with the touch screen or the pointing
device.
The selected line (P-No.) turns blue, indicating that it is selected.
(2) Select the "Move the selected step data" icon.
Fig. 3B171
(3) Press the [OK] button and specify the destination step.
Fig. 3B172
4.4 "Placement Data" Tab
"Move the selected step data" Icon
