(4) Press the [YES] button. The line (step) of the selected P-No. is trans- ferred to the step just above the specified line (step). Fig. 3B173 4.4 "Placement Data" T ab 0510-002 2-1 12 AIM01EDTP
Transfer of P-No.
(1) Select the P-No. to be transferred with the touch screen or the pointing
device.
The selected line (P-No.) turns blue, indicating that it is selected.
(2) Select the "Move the selected step data" icon.

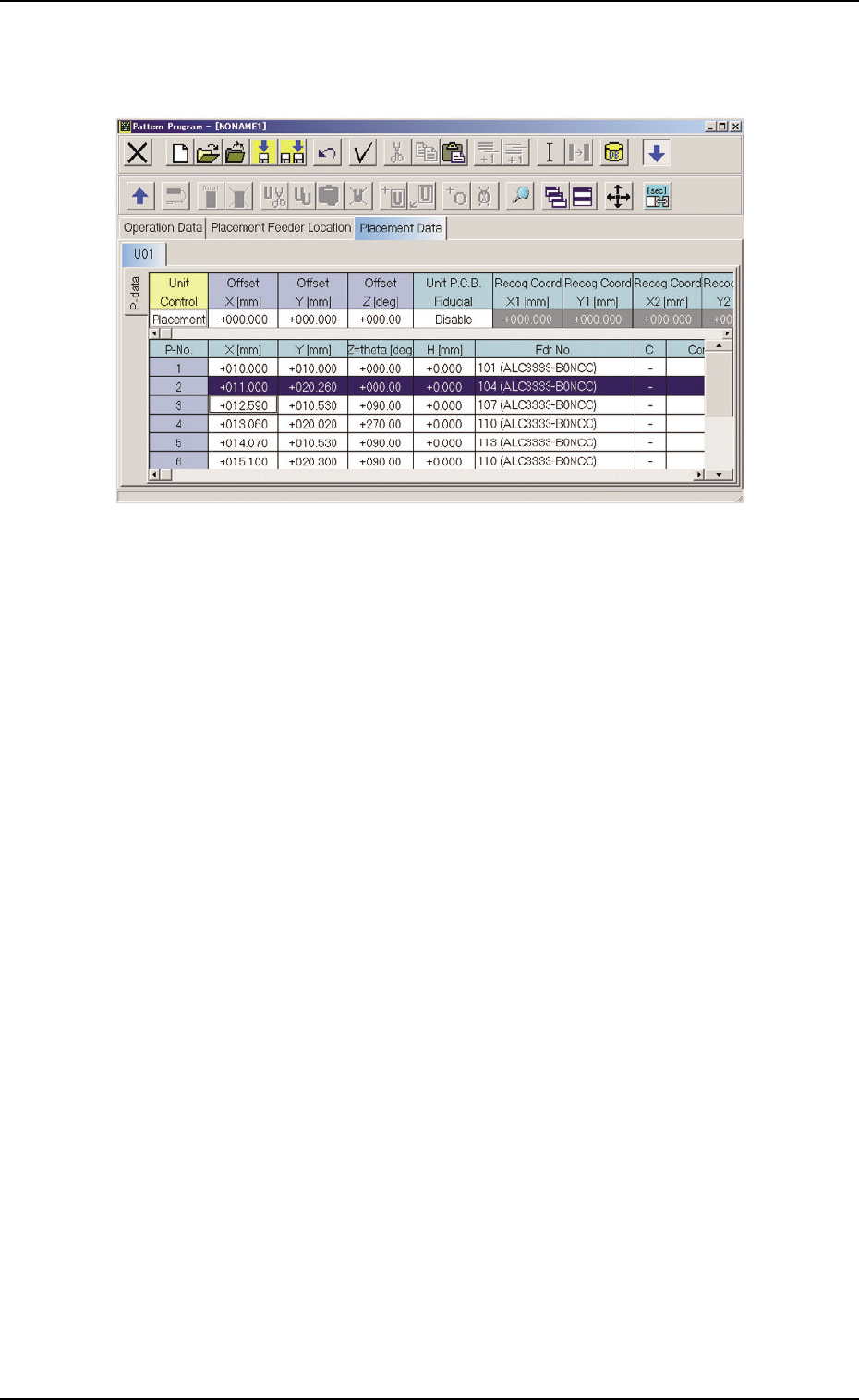

Fig. 3B171
(3) Press the [OK] button and specify the destination step.

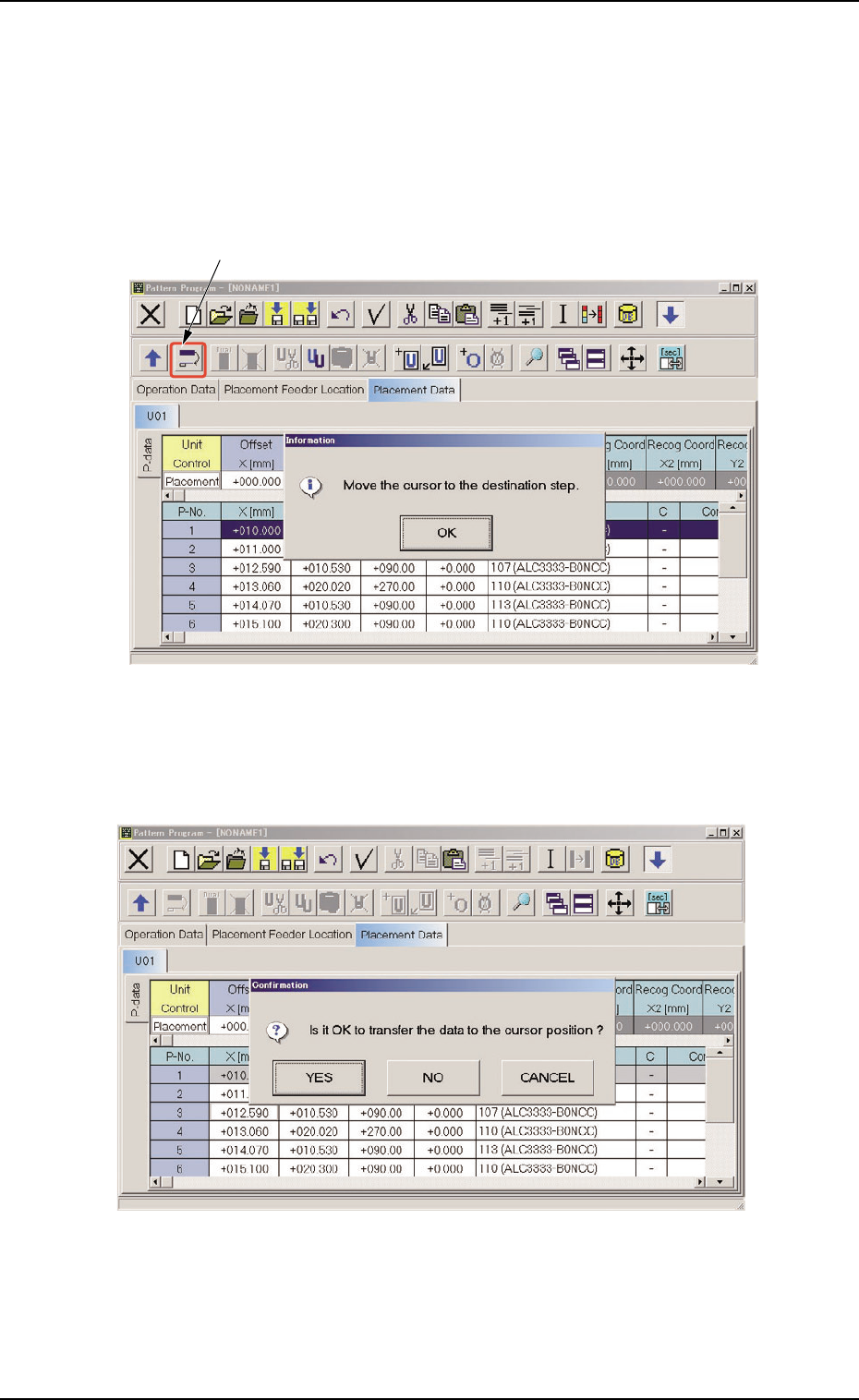

Fig. 3B172
4.4 "Placement Data" Tab
"Move the selected step data" Icon
0510-002 2- 11 1 AIM01EDTP
(4) Press the [YES] button. The line (step) of the selected P-No. is trans-
ferred to the step just above the specified line (step).
Fig. 3B173
4.4 "Placement Data" Tab
0510-002 2-112 AIM01EDTP
4.4.3 "O-data" Tab
• Sheet Layout
When the "O-data" tab is pressed in the "Placement Data" tab sheet,
the following tab sheet appears.

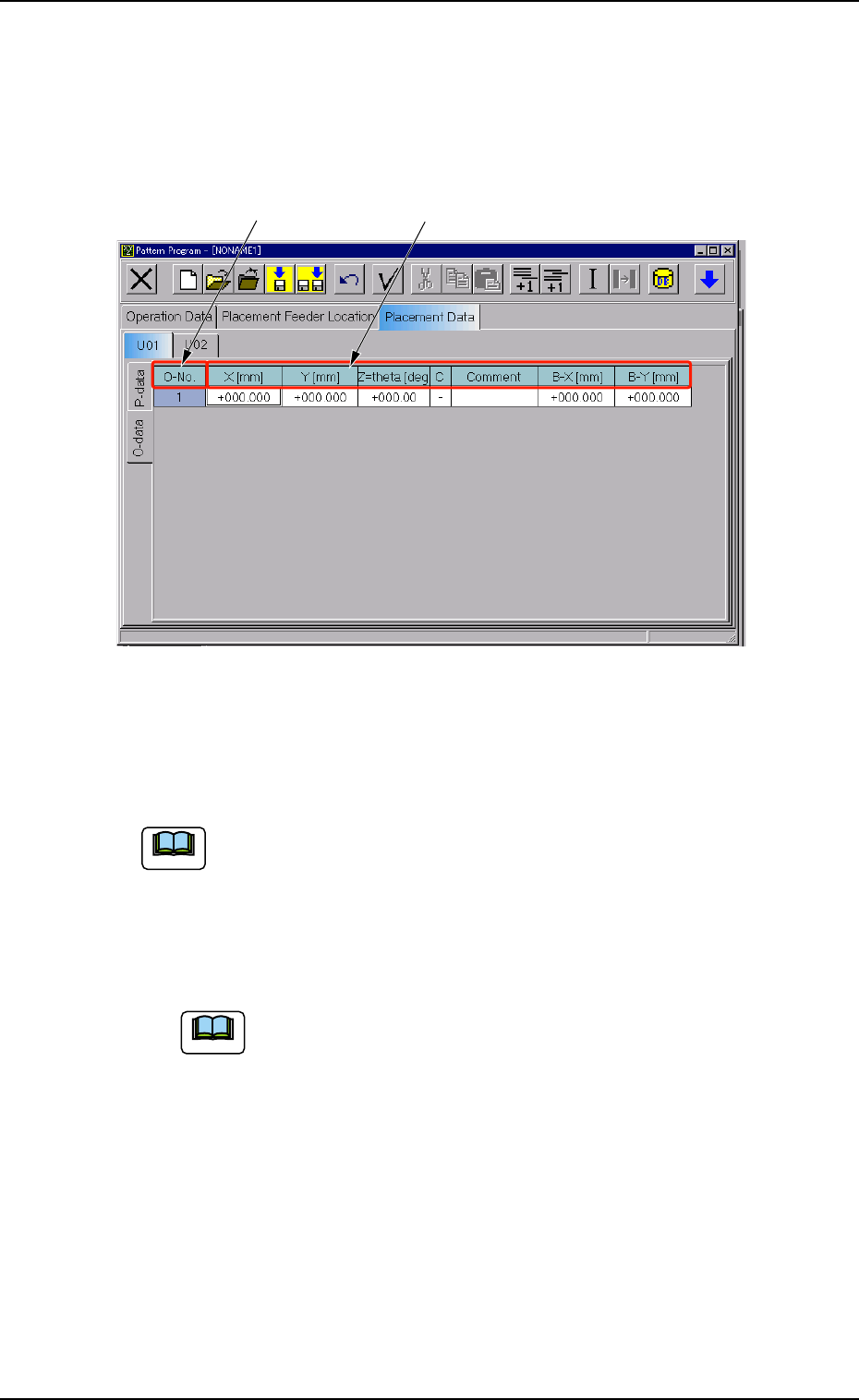

Fig. 3B174 "O-data" Tab Sheet
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-
formation on how to enter each parameter.
*1 O-No.
Shown are the step Nos.
Follow the same steps as "• Operation Procedure" in "4.4.2
"P-data" Tab" on how to add or delete a step No. (O-No.).
*2 X [mm], Y [mm], Z
= =
= =
= theta [deg], C, Comment, B-X [mm] (Op-
tion), and B-Y [mm] (Option)
*1 *2
0305-001 2-113 AIM01EDTP
4.4 "Placement Data" Tab
Note
Note
