3.2.3 "CPK Offset" T ab The "CPK Offset" tab sheet is composed of [Master Offset] tab. • Sheet Layout When the "CPK Offset" tab is pressed in the "Device Offset" tab sheet, the fol…
*2 X [mm], Y [mm]

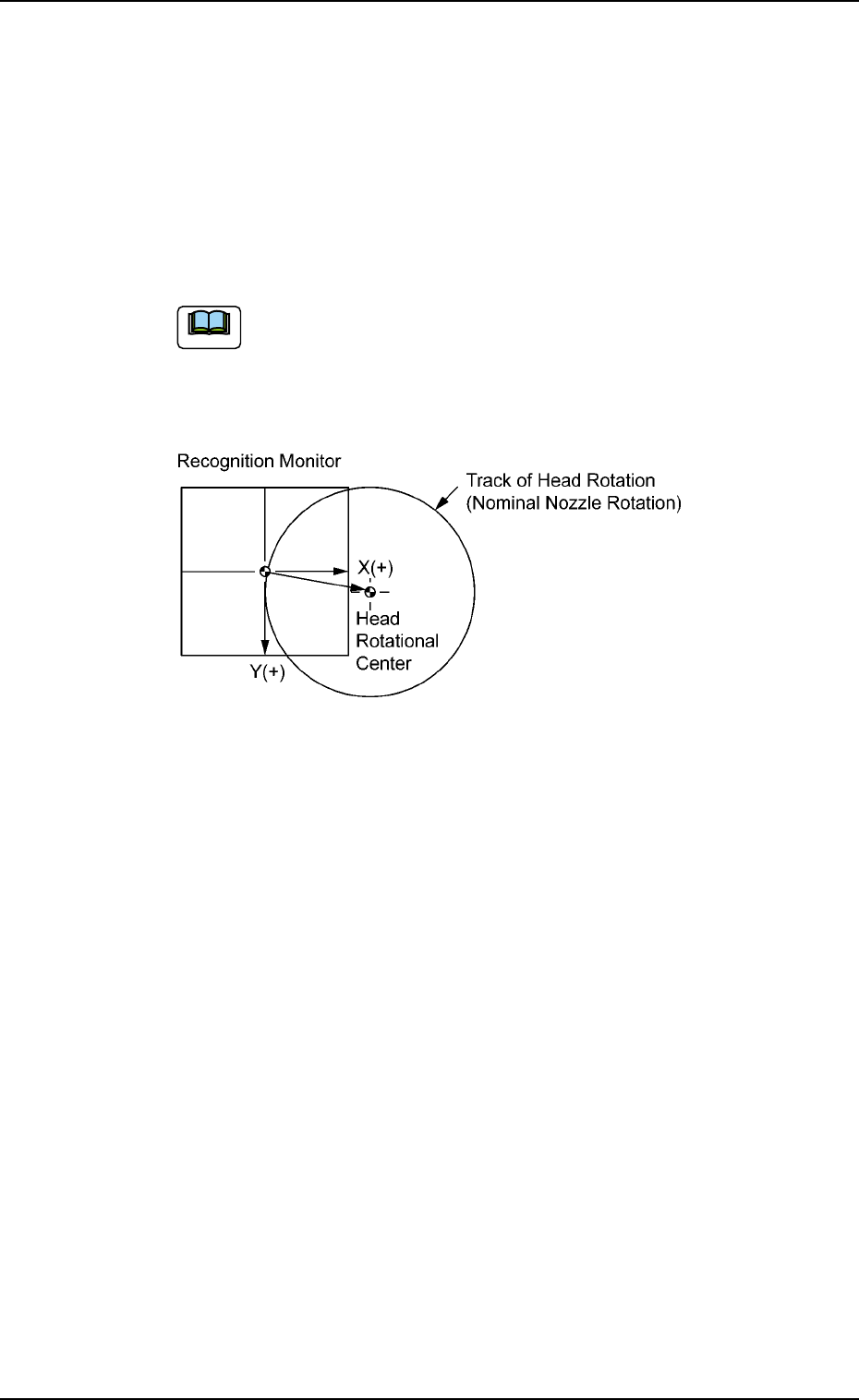

This is the offset data for the head rotational center based on the
component recognition camera (Camera #1: high magnification)
center of each head.
Each head rotational center position is managed at Station #3 (Com-
ponent Recognition) and plus and/or minus values are automati-
cally entered on the basis of the design values (X = 7.500 mm, Y =
0.000 mm).
(a) These offset values are automatically calculated through
teaching operation.
(b) These offset values are used for calculation of place-
ment position correction at component placement.
Fig. 3E24
0305-001 5-23
AIM01EDTP
3.2 "Device Offset" Tab
Note
3.2.3 "CPK Offset" Tab
The "CPK Offset" tab sheet is composed of [Master Offset] tab.
• Sheet Layout

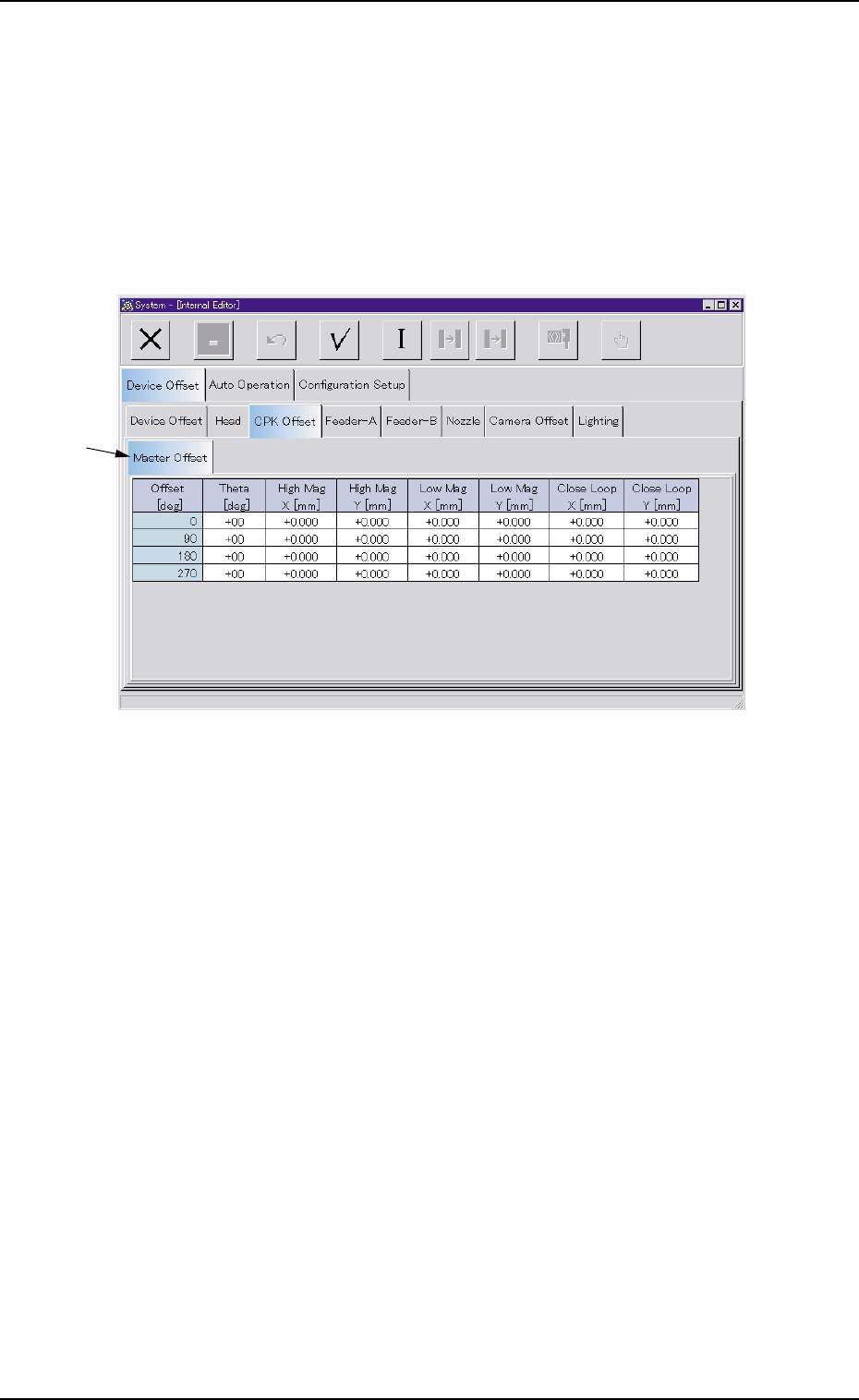

When the "CPK Offset" tab is pressed in the "Device Offset" tab sheet,
the following tab sheet appears.
Fig. 3E25
• Sheet Composition
*1 "Master Offset" Tab
When selected, the "Master Offset" tab sheet appears.
0305-001 5-24
AIM01EDTP
*1
3.2 "Device Offset" Tab
(1) "Master Offset" Tab
• Sheet Layout
When the "Master Offset" tab is pressed in the "CPK Offset" tab sheet,
the following tab sheet appears.
Fig. 3E26 "Master Offset" Tab Sheet
• Sheet Composition

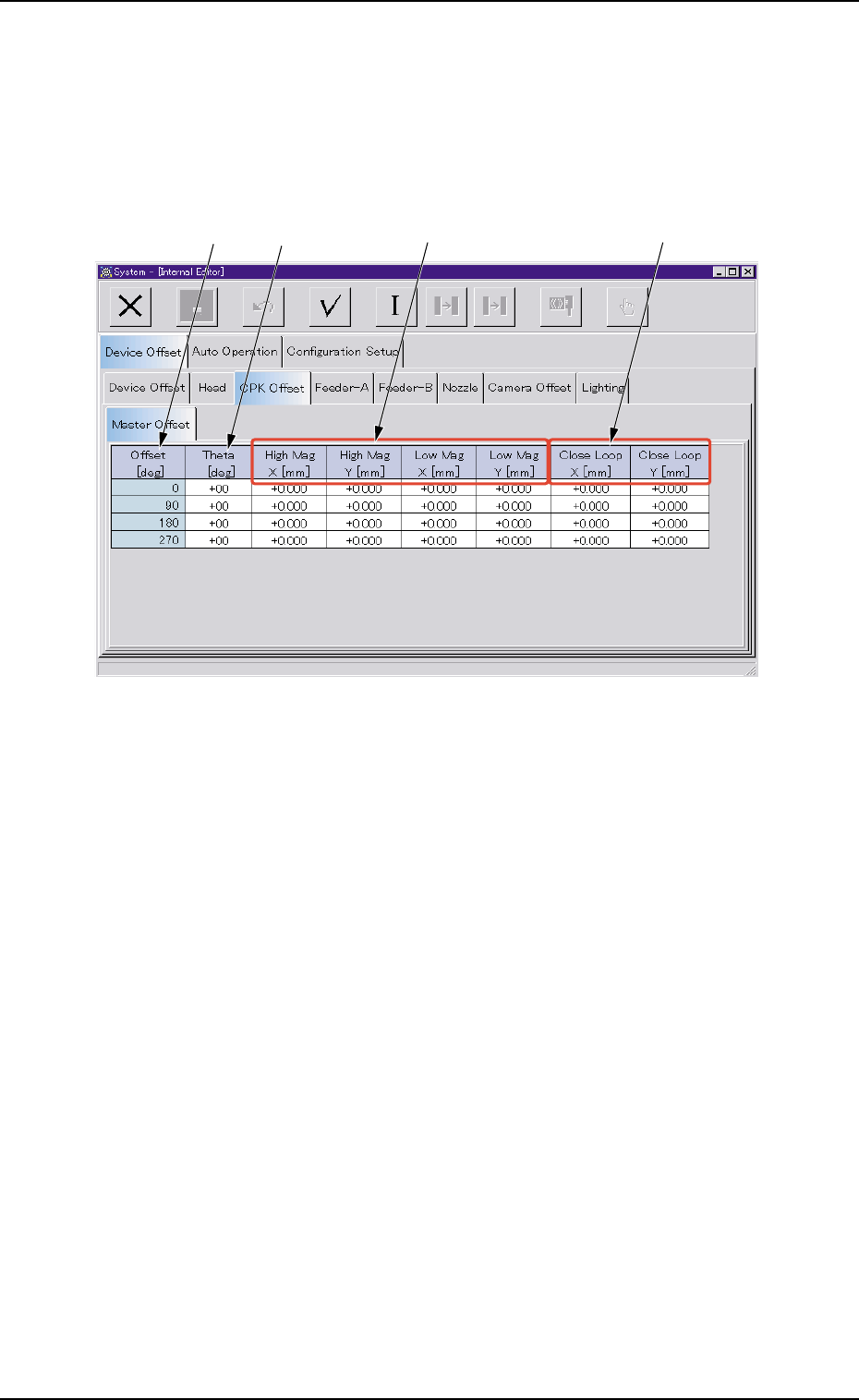

*1 Offset [deg]
Displayed are the angles (0, 90, 180, and 270) specified in the place-
ment data.
*2 Theta [deg]
This is the offset data for angle difference between the X/Y table and
camera coordinate systems.
0305-001 5-25
AIM01EDTP
3.2 "Device Offset" Tab
*1
*2 *3 *4
