0510-003 3-22 AIM01EDTP
(1) Component Shape: IC (Simple)
*1 Type
Different items will be displayed in "*5", depending on which
type is selected in this text box.
Gull Wing
The width and length are displayed in "*5".
J Bend, Straight
The width, length, and full length are displayed in "*5".
Leadless
The width and full length are displayed in "*5".
*2 # Of Types, *3 # Of Groups
*4 Extended setting
Different items will be displayed in "*6", depending on which
parameter ("Disable" or "Enable") is set in this text box.
Disable
When this is set in the "Extended setting" text box, the type
No., the direction, the number of leads, and pitch are dis-
played in "*6".
Enable
When this is set in the "Extended setting" text box, the type
No., the direction, the number of leads, the pitch, the position
(Latl Dir), the position (Long Dir), the missing lead start, the
number of missing leads, and the inspection condition are
displayed in "*6".
*5 Lead Type Data
Width [mm], Length [mm], Full Length [mm]
*6 Lead Group Data
Type No., Direction [°], # of Leads [pcs.], Pitch [mm], Posn
(Latl Dir) [mm], Posn (Long Dir) [mm], Missing Lead Start, #
of Missing Leads [pcs.], Insp Condtn
3.2 "Shape Data" Tab
(2) Component shape: Connector (Simple), Other Leaded (Simple)
*1 Type
Different items will be displayed in "*5", depending on which
type is selected in this text box.
Std
The "Width [mm]" and "Length [mm]" are displayed in "*5".
Electd
"Shape", "Width [mm]", and "Full Length [mm]" appear in "*5".
Others
"Width [mm]", "Length [mm]", and "Full Length [mm]" appear
in "*5".
*2 # Of types, *3 # Of groups
*4 Extended setting
Different items will be displayed in "*6", depending on which
parameter ("Disable" or "Enable") is set in this text box.
Disable
When this is set in the "Extended setting" text box, the type
No., the direction, the number of leads, and pitch are dis-
played in "*6".
Enable
When this is set in the "Extended setting" text box, the type
No., the direction, the number of leads, the pitch, the position
(Latl Dir), the position (Long Dir), the missing lead start, the
number of missing leads, and the inspection condition are
displayed in "*6".
*5 Lead Type Data
Shape, Width [mm], Length [mm], Full Length [mm]
*6 Lead Group Data
Type No., Direction [°], # of Leads [pcs.], Pitch [mm], Posn
(Latl Dir) [mm], Posn (Long Dir) [mm], Missing Lead Start, #
of Missing Leads [pcs.], Insp Condtn
0510-003 3-23
AIM01EDTP
3.2 "Shape Data" Tab
3.2.5 "Lead Data" Tab (Complex Shape)
The corresponding tab sheet appears when "IC (Complex)", "Connec-
tor (Complex)", or "Other Leaded (Complex)" is selected in the "Com-
ponent shape" text box.
• Sheet Layout
When the "Lead Data" tab is pressed in the "Shape Data" tab sheet,
the following tab sheet appears.

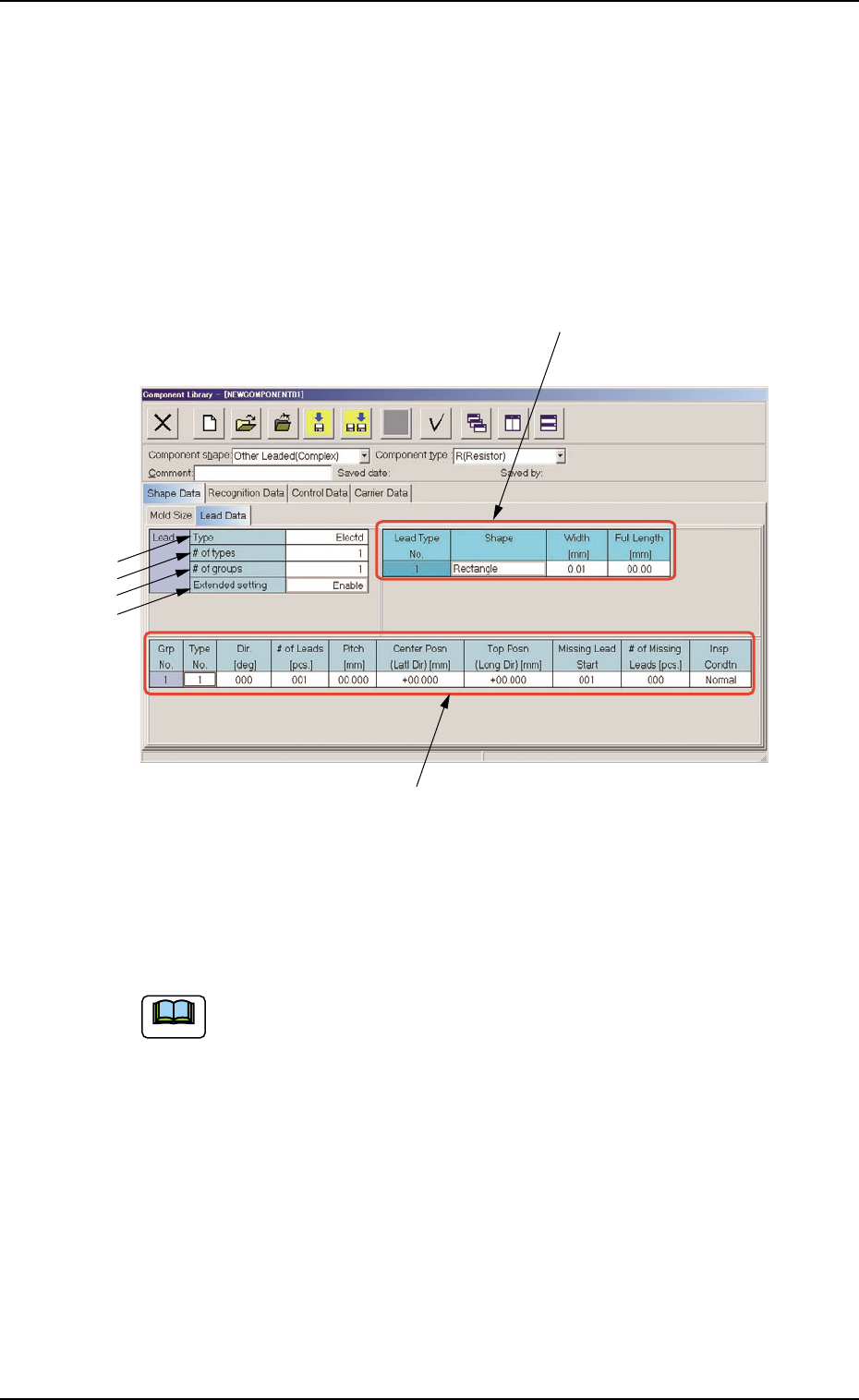

Fig. 3C17 "Lead Data" Tab Sheet ("IC (Complex)" Selected)
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" (Section 2) for the
detailed information on how to enter each parameter.
0510-002 3-24
AIM01EDTP
3.2 "Shape Data" Tab
*5
*6
*1
*2
*3
*4
Note
