3.5 "Head Management Data" Tab
The corresponding tab sheet enables the operator to view the head
management data for each individual heads.
Sheet Layout
When the "Head Management Data" tab is pressed in the "Management
Data" window, the following tab sheet appears inside the window.

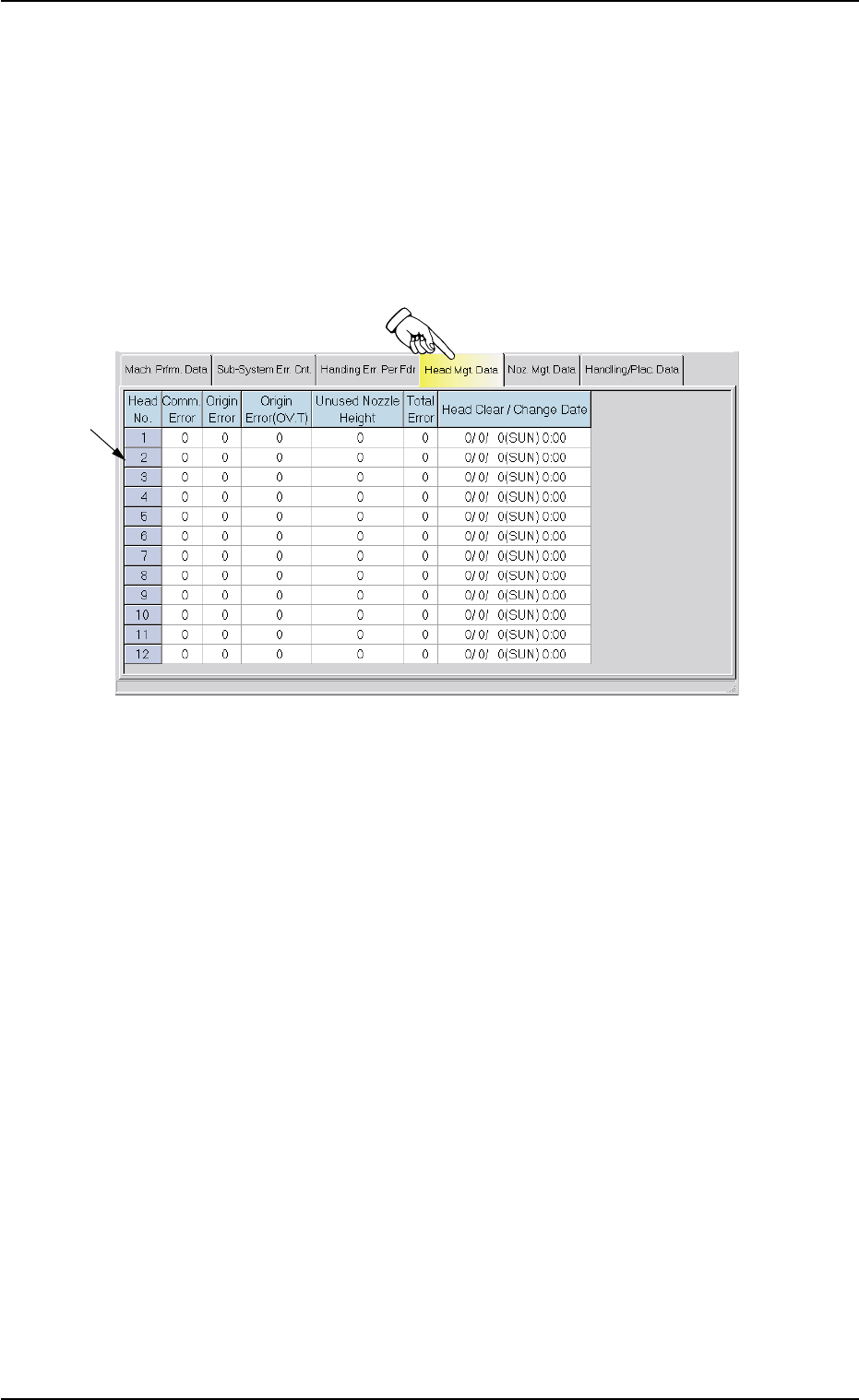

Fig. 3D12 "Head Management Data" Tab Sheet
Sheet Composition
*1 Items
The following items are displayed.
(1) [Head No.] Button
Shown are the head Nos. (1 to 12).
(2) [Comm. Error] Button
Each text box shows the number of communication errors for
each individual heads.
(3) [Origin Error] Button
Each text box shows the number of head origin errors for each
individual heads.
(4) [Origin Error (OV. T)] Button
Each text box shows the number of errors detected while the
head was returning to its origin.
3.5 "Head Management Data" Tab
0305-001 4-24 AIM01EDTP
*1
(5) [Unused Nozzle Height] Button
Each text box shows the number of nozzle height errors (error in
height of the unused nozzle).
(6) [Total Error] Button
Each text box shows the total number of errors detected in (2)
through (5).
(7) [Head Clear/Change Date] Button
Each text box shows the clear date for each individual heads.
(based on head bypassing, etc.)
When one of the above buttons is pressed, the feeder No. with
the biggest parameter under the selected button is displayed in
the first line and feeder Nos. having the subsequent (second,
third, fourth, ...) biggest parameters follow. That is, parameters
are re-arranged in order of error counts, making it easy to ana-
lyze and improve production rate.
When the [Head No.] button is pressed, head Nos. are arranged
in their initial order (order of head Nos.).
0305-001 4-25
AIM01EDTP
3.5 "Head Management Data" Tab
Note
3.6 "Nozzle Management Data" Tab
The corresponding tab sheet enables the operator to view the nozzle
management data for each individual heads/nozzles.
Sheet Layout
When the "Nozzle Management Data" tab is pressed in the "Manage-
ment Data" window, the following tab sheet appears inside the window.

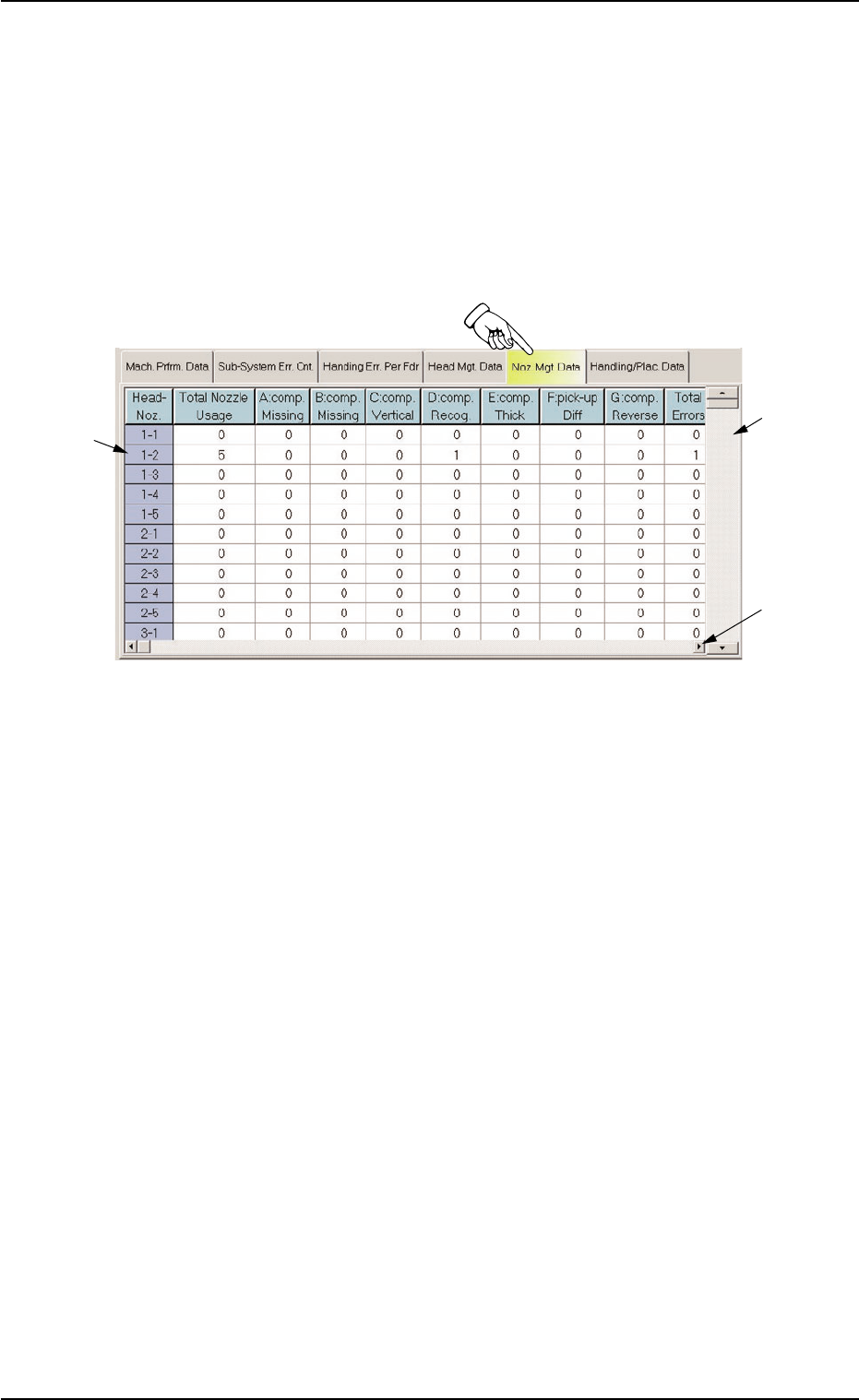

Fig. 3D13 "Nozzle Management Data" Tab Sheet
Sheet Composition
*1 Items
The following items are displayed.
(1) [Head - Noz.] Button
Shown are the head and nozzle Nos.
(2) [Total Nozzle Usage] Button
Each text box shows the number of pick-up actions for each indi-
vidual nozzles.
(3) [A: comp. Missing] Button
Each text box shows the number of missing components de-
tected by the linear measure detection sensor for each individual
nozzles.
3.6 "Nozzle Management Data" Tab
0510-002 4-26 AIM01EDTP
*2
*1
*3
