3.3.2 "P.C.B. Transfer Mode Setup" Tab

• Sheet Layout

When the "P.C.B. Transfer Mode Setup" tab is pressed in the "Auto

Operation" tab sheet, the following tab sheet appears.

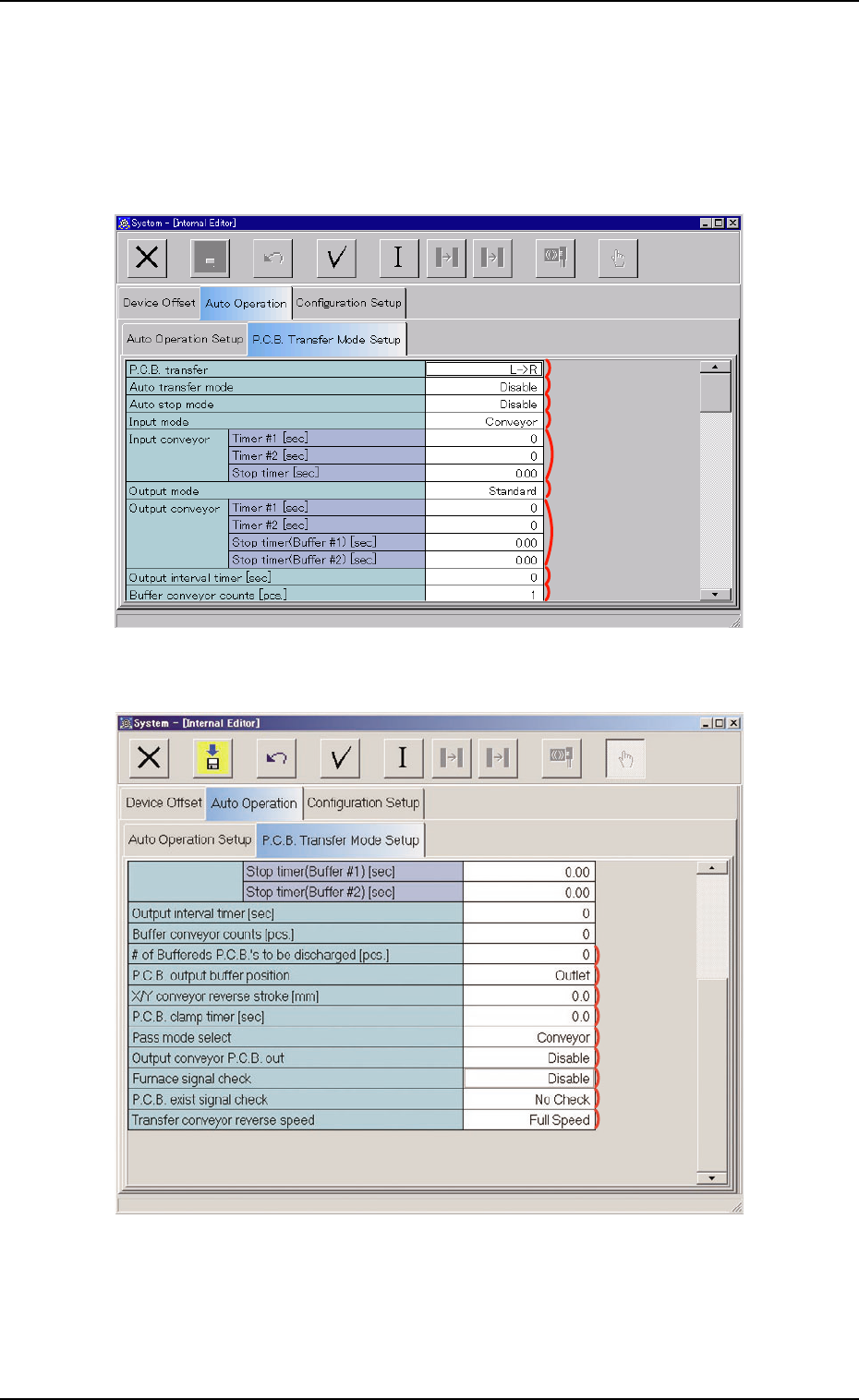

Fig. 3E47 "P.C.B. Transfer Mode Setup" Tab Sheet (1)

Fig. 3E48 "P.C.B. Transfer Mode Setup" Tab Sheet (2)

0510-003 5-55

AIM01EDTP

3.3 "Auto Operation" Tab

*10

*11

*12

*13

*14

*15

*16

*17

*18

• Sheet Composition

*1 P.C.B. Transfer

Set a P.C.B. transfer direction in the text box.

ÆÆ

ÆR"

The P.C.B. flows from the left to the right.

ÆÆ

ÆL"

The P.C.B. flows from the right to the left.

When the setting is changed, it is required to perform the zero-

ing operation again.

*2 Auto transfer mode

"Disable" or "Enable" can be set in the text box to determine whether

or not the automatic transfer function should be used.

Selection of "Disable" (Standard Setting)

The finished P.C.B. (P.C.B. where components are placed) on the

X/Y table is unloaded at the same time when the subsequent P.C.B.

is transferred to the X/Y table.

Fig. 3E49

The finished P.C.B. stays on the X/Y table until the subsequent P.C.B.

comes to (A) indicated in the above figure.

Selection of "Enable"

When the X/Y table has returned to its origin after component place-

ment on the P.C.B. on the X/Y table is completed, no P.C.B. is lo-

cated on (A), and the conveyor transfer is not started up, the P.C.B.

transfer function is activated and the finished P.C.B. is discharged

to the output machine.

This function works efficiently to avoid finished P.C.B. stagnation on

the X/Y table when the line balance between this machine and the

input machine is not good.

0305-001 5-56 AIM01EDTP

3.3 "Auto Operation" Tab

Note

0305-001 5-57 AIM01EDTP

*3 Auto stop mode

"Enable" or "Disable" can be set in the text box to determine whether

or not the automatic stop function should be used.

Selection of "Enable" (Standard Setting)

The machine stops when the automatic operation is started by press-

ing the [START] button with the machine in the initialized mode (no

P.C.B. on the machine), the machine is waiting for a P.C.B. to be

sent from the input machine and detects that "RUN" signal has

stopped coming from the input machine, and the machine is kept in

the condition for 2 seconds.

This function is based on the concept that it will be necessary to

continue automatic operation of the machine when there is no P.C.B.

on the machine and the input machine is not running automatically

because it is apparent that no P.C.B. can be transferred to the ma-

chine anymore.

The machine stops automatically when a P.C.B. on the machine is

processed without unprocessed P.C.B. left on the machine and the

input machine is stopped after the last processed P.C.B. on the

machine has been transferred to the output machine.

When the machine is connected to another machine manu-

factured by another company, this function may not be ac-

tivated.

*4 Input mode

Select a parameter according to the P.C.B. unloading system of the

input machine.

Conveyor

The input conveyor is activated to receive a P.C.B. from the input

machine when the P.C.B. transfer signal is received from the input

machine.

When the P.C.B. transfer signal is interrupted, the input conveyor

stops running.

Pusher

The pusher of the input machine forces a P.C.B. out to the input

conveyor of the machine.

When the P.C.B. detection sensor (for the pusher) is not provided at

the inlet side of the input conveyor, do not set "Pusher" in the text

box.

SMEMA (Not Available)

P.C.B.’s are transferred according to the "SMEMA" standard.
