(C03_06) B-X [mm], B-Y [mm] (Option) When "Enable" is set in the "Unit P .C.B. B.B.R." text box, it is required to set the coordinates of each unit P .C.B. B.B.R. mark (each bad mark) based on the pla…
(C03_04) C
Enter some of the following control commands.
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen): This command handles the steps as those for compo-
nent placement.
S:This command invalidates the steps specified as those
for component placement.
C:This command invalidates the steps specified as those
for component placement.
Note : As for dispensers, these steps become valid.
D:This command handles the steps as those for compo-
nent placement.
Note : As for dispensers, these steps become invalid.
E:When placement data (O) is not created, this shows
the end of the steps in the placement data (P).
Confirm that "0" (zero) is set in the "X [mm]", "Y [mm]", "Z=theta", "B-X
[mm]" (option), and "B-Y [mm]" (option) and set "E".
(C03_05) Comment
Set a comment for each step No.
Up to 32 characters (alphanumerics and marks) can be used.
The automatic operation is not affected by these comments.
2.5 Placement Data
0412-002 2-58 AIM01EDTP
Note
Note
Fig. 3B118
-
C
-
Comment
Fig. 3B119
Notice

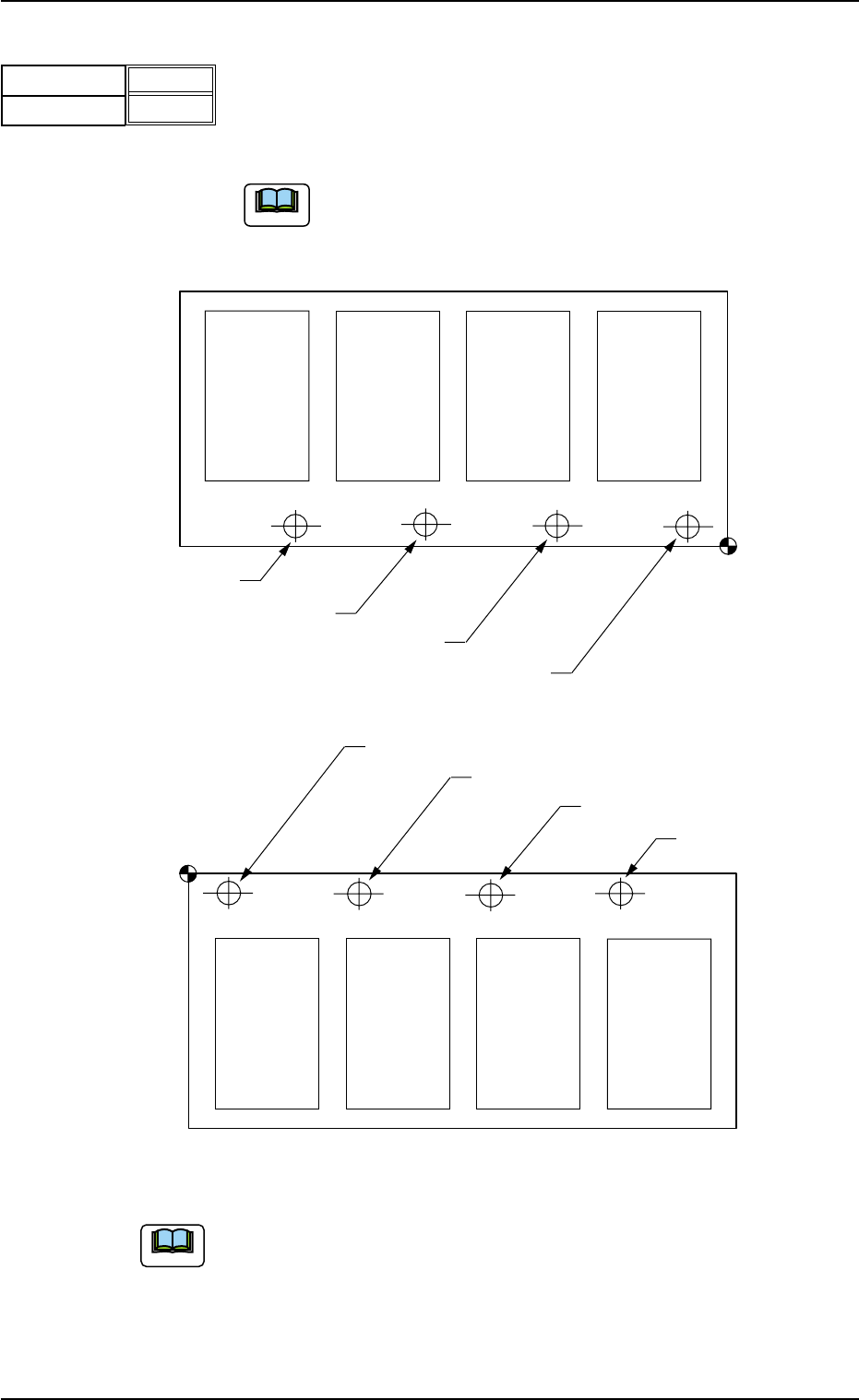

(C03_06) B-X [mm], B-Y [mm] (Option)
When "Enable" is set in the "Unit P.C.B. B.B.R." text box, it is required
to set the coordinates of each unit P.C.B. B.B.R. mark (each bad mark)
based on the placement coordinate reference N
0
.
Unit: mm
When the machine is not equipped with the unit P.C.B. B.B.R.
function (option), this function can not be used.
Fig. 3B121
(a) Refer to "2. Various Functions" in "Section 2" of "Volume 2: Opera-
tion (Supervisor)" for the unit P.C.B. B.B.R. detection function (op-
tion).
(b) Do not set any coordinates in the text boxes of the last line (last step
No.).
Keep them as "000.000".
Placement Coordinate
Reference (N
0
)
Bad Mark of Pattern 1
Bad Mark of Pattern 2
Bad Mark of Pattern 3
Bad Mark of Pattern 4
Pattern 4
(B-X
4
, B-Y
4
)
Pattern 3
(B-X
3
, B-Y
3
)
Pattern 2
(B-X
2
, B-Y
2
)
Pattern 1
(B-X
1
, B-Y
1
)
Placement Coordinate
Reference (N
0
)
Bad Mark of Pattern 1
Bad Mark of Pattern 2
Bad Mark of Pattern 3
Bad Mark of Pattern 4
Pattern 4
(B-X
4
, B-Y
4
)
Pattern 3
(B-X
3
, B-Y
3
)
Pattern 2
(B-X
2
, B-Y
2
)
Pattern 1
(B-X
1
, B-Y
1
)
TCM-X110
TCM-X210 TCM-X300 TCM-X110M
2.5 Placement Data
0404-002 2-59 AIM01EDTP
Fig. 3B120
B-X [mm]
B-Y
[mm]
000.000
000.000
Note
Note
3. Example of Pattern Program Creation
Described on the following pages are the examples of pattern programs
to be created.
The example of data creation is based on TCM-X210.
As for TCM-X110, the placement coordinate reference is "Rear
Left ".
• Single Pattern
• Single Pattern (P.E.C. Recognition Function Enabled)
• Repetitive Patterns
• Repetitive Patterns (Unit P.C.B. B.B.R. Enabled)
• Repetitive Patterns (Unit P.C.B. B.B.R. Function Enabled)
• Repetitive Patterns (Block Sorting Enabled)
• Repetitive Patterns (Polar Coordinate Conversion Function)
• Multi-Model Repetitive Patterns
3.1 Single Pattern
(1) Information on Pattern Program Creation

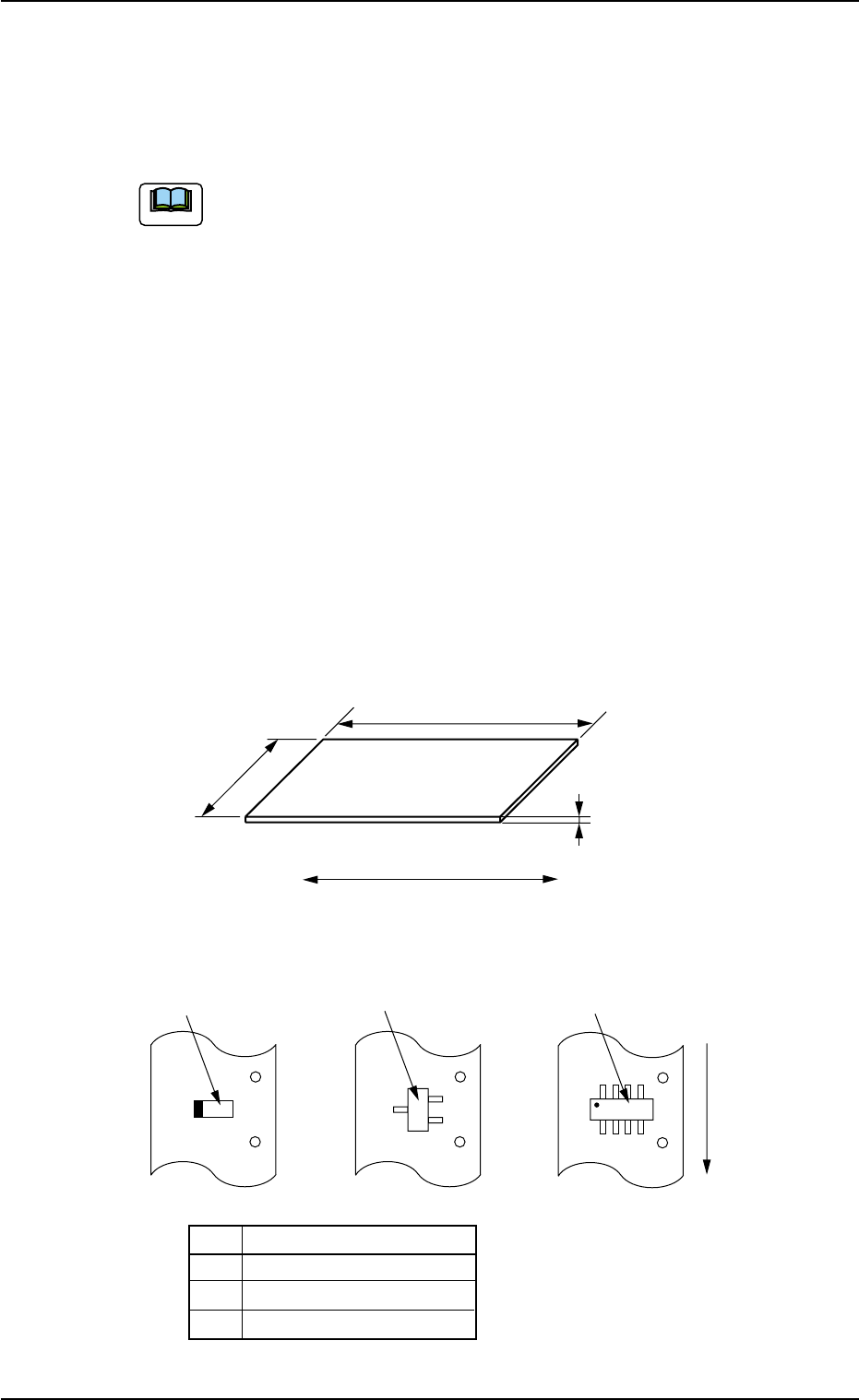

• P.C.B. Size
Fig. 3B122
• Packaged Posture and IDs of Components
No. Component ID
*1 TANA3216B0- - -
*2 TR2012-3B0SANL2
*3 SOP008-B02SAN
Fig. 3B123
0305-001 2-60
AIM01EDTP
3. Example of Pattern Program Creation
250 mm
1.6 mm
P. C. B .
330 mm
P.C.B. Flow Direction
*3
*2
*1
User Direction of
Component Feed
Note
