4.2 "Operation Data" Tab

4.2.1 "P.C.B. Data" Tab

• Sheet Layout

When the "P.C.B. Data" tab is pressed in the "Operation Data" tab

sheet, the following tab sheet appears.

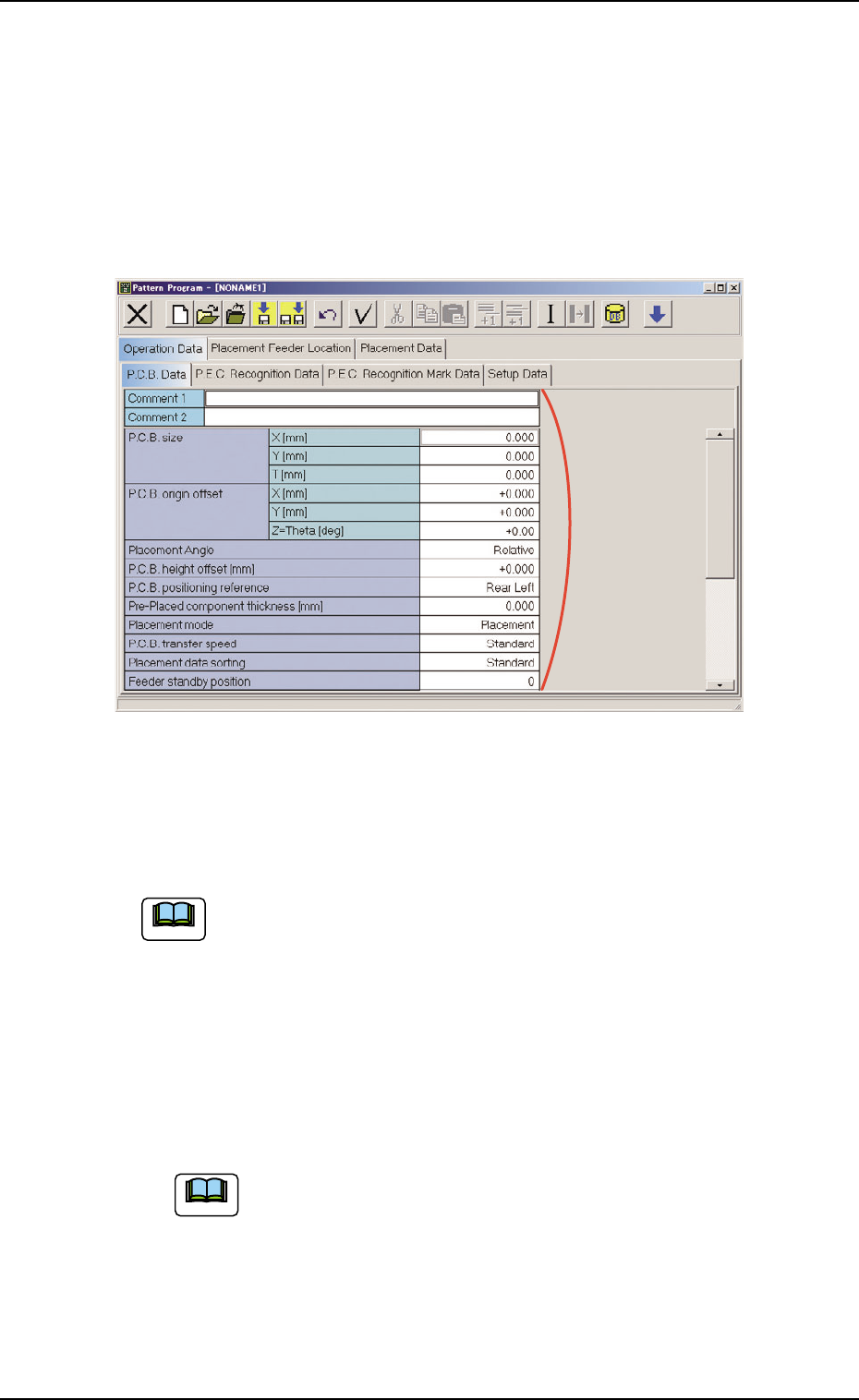

Fig. 3B154 "P.C.B. Data" Tab Sheet

• Sheet Composition

Each parameter is displayed or can be entered.

Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-

formation on how to enter each parameter.

*1 Comment 1, Comment 2, P.C.B. size, P.C.B. origin offset, Place-

ment Angle, P.C.B. height offset [mm], P.C.B. positioning ref-

erence, Pre-Placed component thickness [mm], Placement

mode, P.C.B. transfer speed, Placement data sorting, Feeder

standby position

Enter comments in the "Comment 1" and "Comment 2" text

boxes through keyboard navigation. All kinds of characters

can be used.

0510-002 2-93 AIM01EDTP

4.2 "Operation Data" Tab

Note

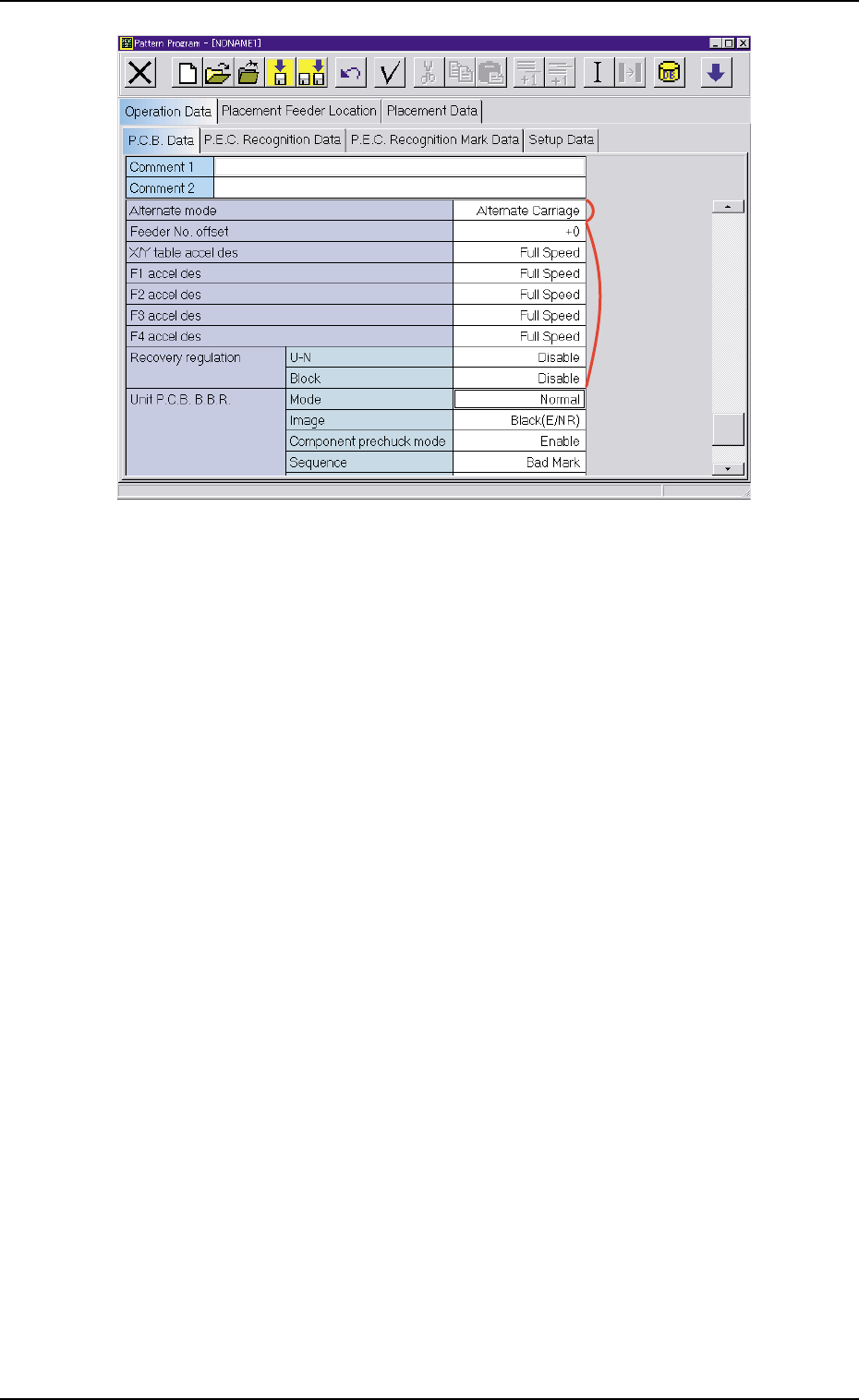

Fig. 3B155 "P.C.B. Data" Tab Sheet

*2 Alternate mode

*3 Feeder No. offset, X/Y table accel des, F1 accel des, F2 accel

des, F3 accel des, F4 accel des, and Recovery regulation

0305-001 2-94 AIM01EDTP

4.2 "Operation Data" Tab

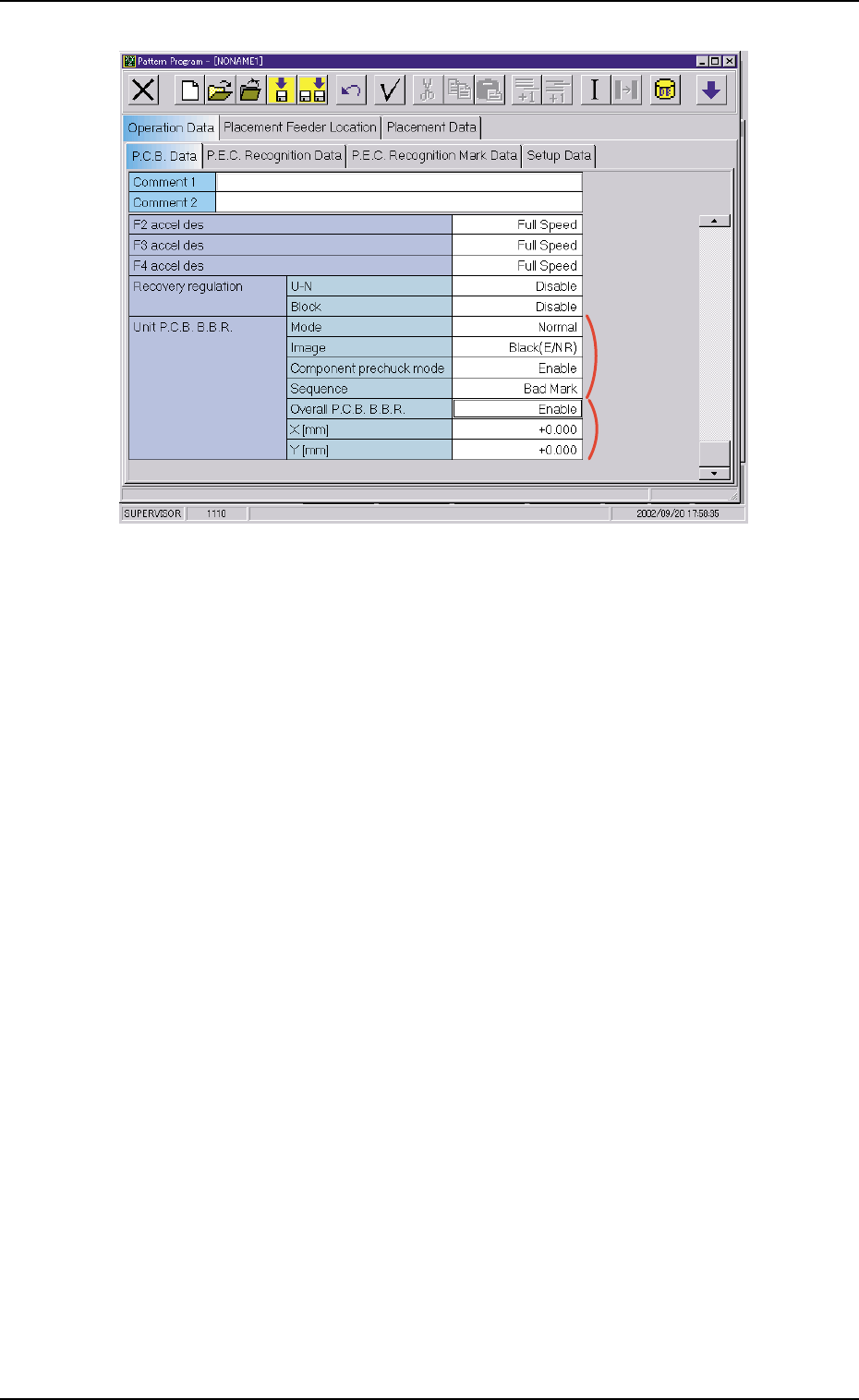

Fig. 3B156 "P.C.B. Data" Tab Sheet

*4 Unit P.C.B. B.B.R. (Option)

Mode

Image, Component prechuck mode, Sequence

When a parameter other than "Disable" is selected for "Mode",

it is required to enter parameters in the text boxes.

*5 Overall P.C.B. B.B.R. (Option)

X [mm] (Horizontal), Y [mm] (Vertical)

When "Enable" is selected for "Overall P.C.B. B.B.R.", it is re-

quired to enter parameters in the text boxes.

0305-001 2-95

AIM01EDTP

4.2 "Operation Data" Tab
