• Use of Existing Pattern Program (1) Press the [DA T A EDIT] button on the main menu bar . An "EDIT SEL." menu opens. (2) Press the [P A TT PRGM] button. The "Pattern Program Edit" window opens. (3) …

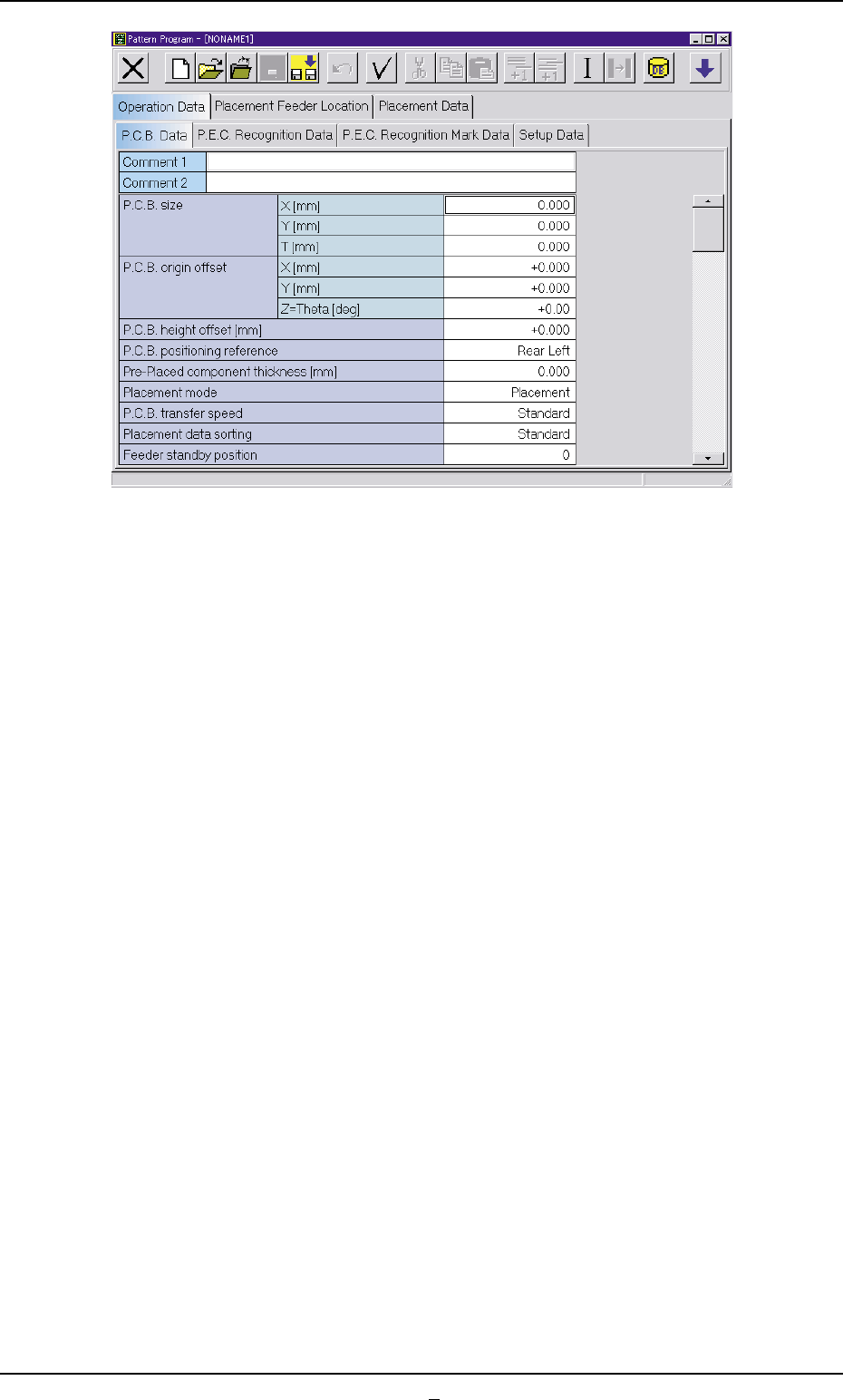

Fig. 3B138 "Pattern Program" Edit Window
0403-002 2-81 AIM01EDTP
4.1 Basic Operations in Edit Windows
• Use of Existing Pattern Program
(1) Press the [DATA EDIT] button on the main menu bar. An "EDIT SEL."
menu opens.
(2) Press the [PATT PRGM] button.
The "Pattern Program Edit" window opens.
(3) Select the pattern program to be edited and press the [Edit Prgm]
button.
The search function can be used to quickly find appropriate
pattern programs.

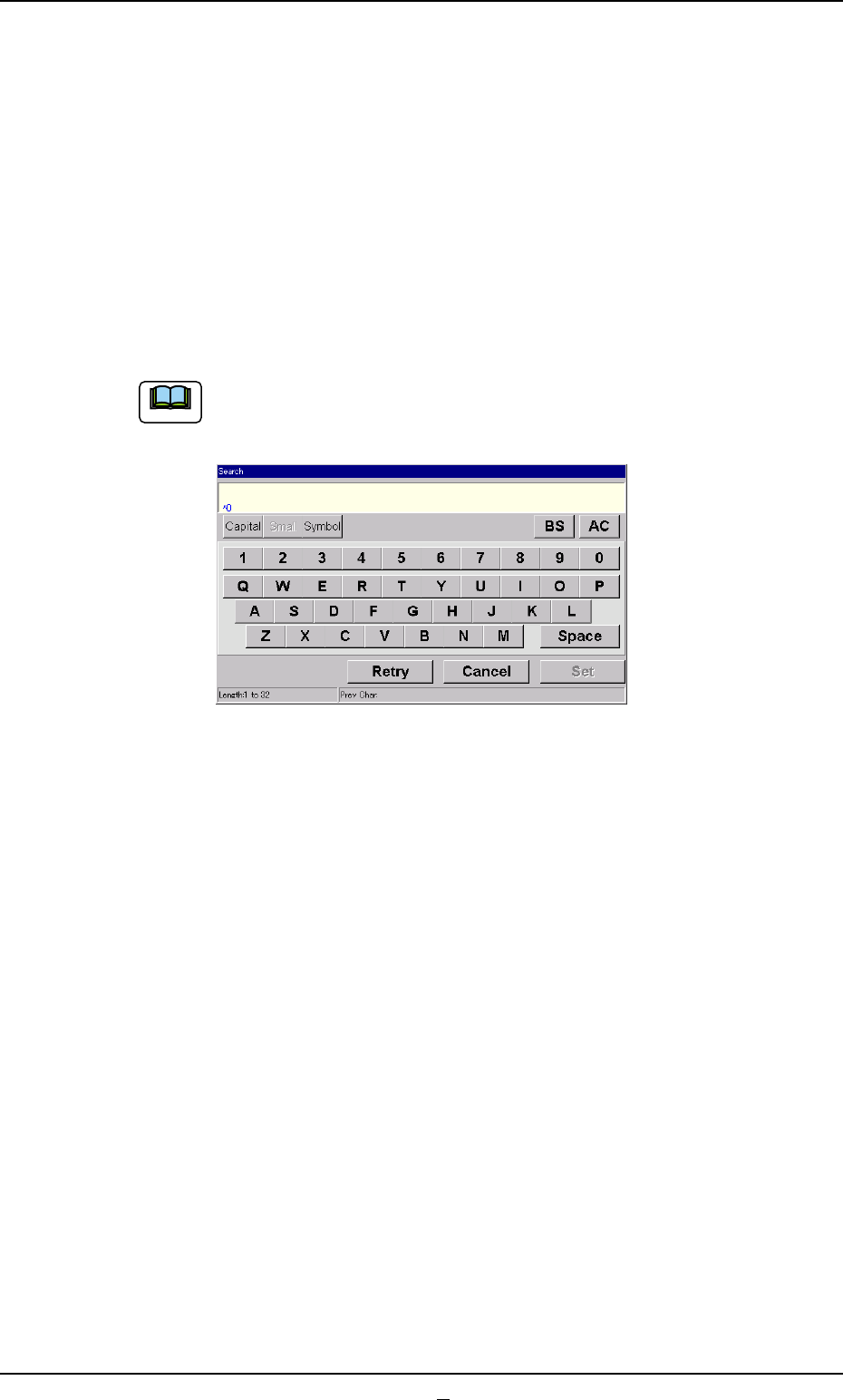

Fig. 3B138-1
When the [Search] button is pressed, the "Search" window
opens.
When the desired pattern program name is entered and the
[Set] button is pressed, the result appears in the "List of Model
Names" pane.
"*" (asterisk) and "?" (question mark) can be used as wild cards.
abc* : The search function retrieves the program names which
start with "abc".
a?c : The search function retrieves the program names which
start with "a" and contain "c" as the third character.
When the [All] button is pressed, all pattern programs are displayed.
Note
4.1 Basic Operations in Edit Windows
0403-001 2-81-1 AIM01EDTP
4.1.2 Composition of "Pattern Program" Edit Window
This session describes the composition and the icons on the toolbars
of the "Pattern Program" edit window.

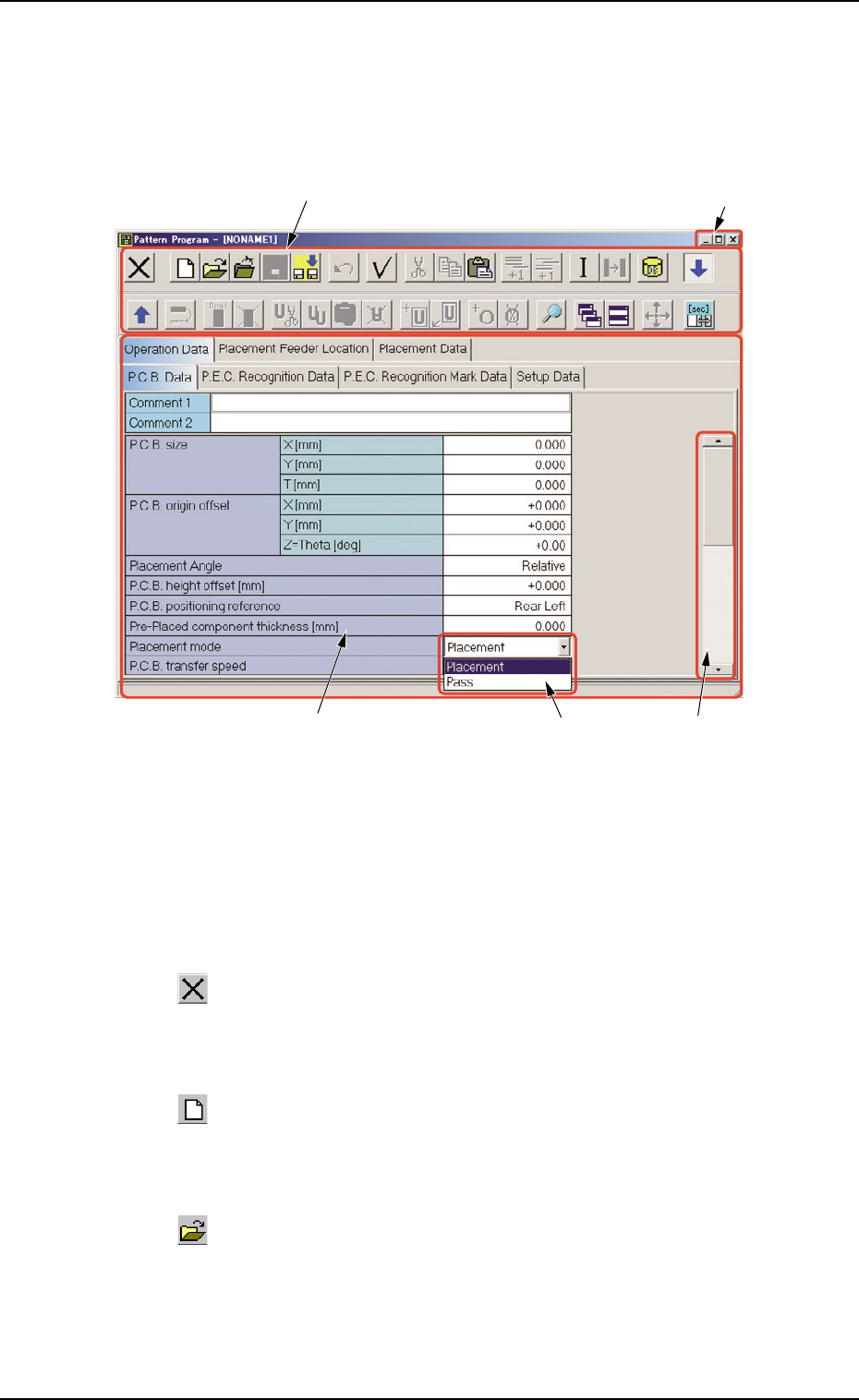

Fig. 3B139 "Pattern Program" Edit Window
*1 Toolbar
The "Pattern Program" edit window is provided with the operation
commands (the icons on the toolbars) that can be executed.
: Exit
When pressed, this closes the "Pattern Program" edit win-
dow.
: New
When pressed, this opens a new "Pattern Program" win-
dow.
: Open File
When pressed, this opens an existing "Pattern Program"
edit window.
*2
*1 Toolbar
*3 Tab Sheet
*4 Drop-Down List
*5
0510-002 2-82 AIM01EDTP
