5.2 "Feeder Message Rate" Tab

The corresponding tab sheet displays the pick-up rates (managed for

each individual feeders) based on the feeder message rates specified

in the auto operation setup data.

• Sheet Layout

When the "Feeder Message Rate" tab is pressed in the "Bypass & Rate

Data" window, the following tab sheet appears inside the window.

Fig. 3D22 "Feeder Message Rate" Tab Sheet

• Sheet Composition

*1 Tabs

The "Feeder Message Rate" tab sheet is divided further into four tab

sheets and each tab sheet shows the handling errors per feeder on

each individual feeder carriage.

When a tab is pressed, the corresponding tab sheet appears, indi-

cating that the related feeder carriage is selected.

*2 Items

The following items are displayed.

(1) [Fdr No. (Actual Fdr No.)] Button

Shown are the feeder Nos.

(2) [A: comp. Missing] Button

Each text box shows the total number of missing component errors

detected by the linear measure detection sensor for each individual

feeders.

0305-001 4-47 AIM01EDTP

5.2 "Feeder Message Rate" Tab

(3) [B: comp. Missing] Button

Each text box shows the total number of missing component errors

detected through recognition operation for each individual feeders.

(4) [C: comp. Vertical] Button

Each text box shows the number of vertical component errors de-

tected by the linear measure detection sensor for each individual

feeders.

(5) [D: comp. Recog.] Button

Each text box shows the total number of errors detected through

recognition operation for each individual feeders.

(6) [E: comp. Thick] Button

Each text box shows the total number of errors in component thick-

ness detected by the linear measure detection sensor for each indi-

vidual feeders.

(7) [F: pick-up Diff] Button

Each text box shows the total number of pick-up difference errors

detected through recognition operation for each individual feeders.

(8) [G: Comp. Reverse] Button

Each text box shows the total number of reversed component er-

rors detected through recognition operation for each individual feed-

ers.

(9) [Feeder Message Rate (Total Errors/Total Components)] But-

ton

Each text box shows the rate of pick-up errors (the number of pick-

up errors per number of picked components) for each individual

feeders.

0403-002 4-48

AIM01EDTP

5.2 "Feeder Message Rate" Tab

5.3 "Nozzle Message Rate" Tab

The corresponding tab sheet displays the pick-up rates (managed for

each individual nozzles) based on the nozzle message rates specified

in the auto operation setup data.

• Sheet Layout

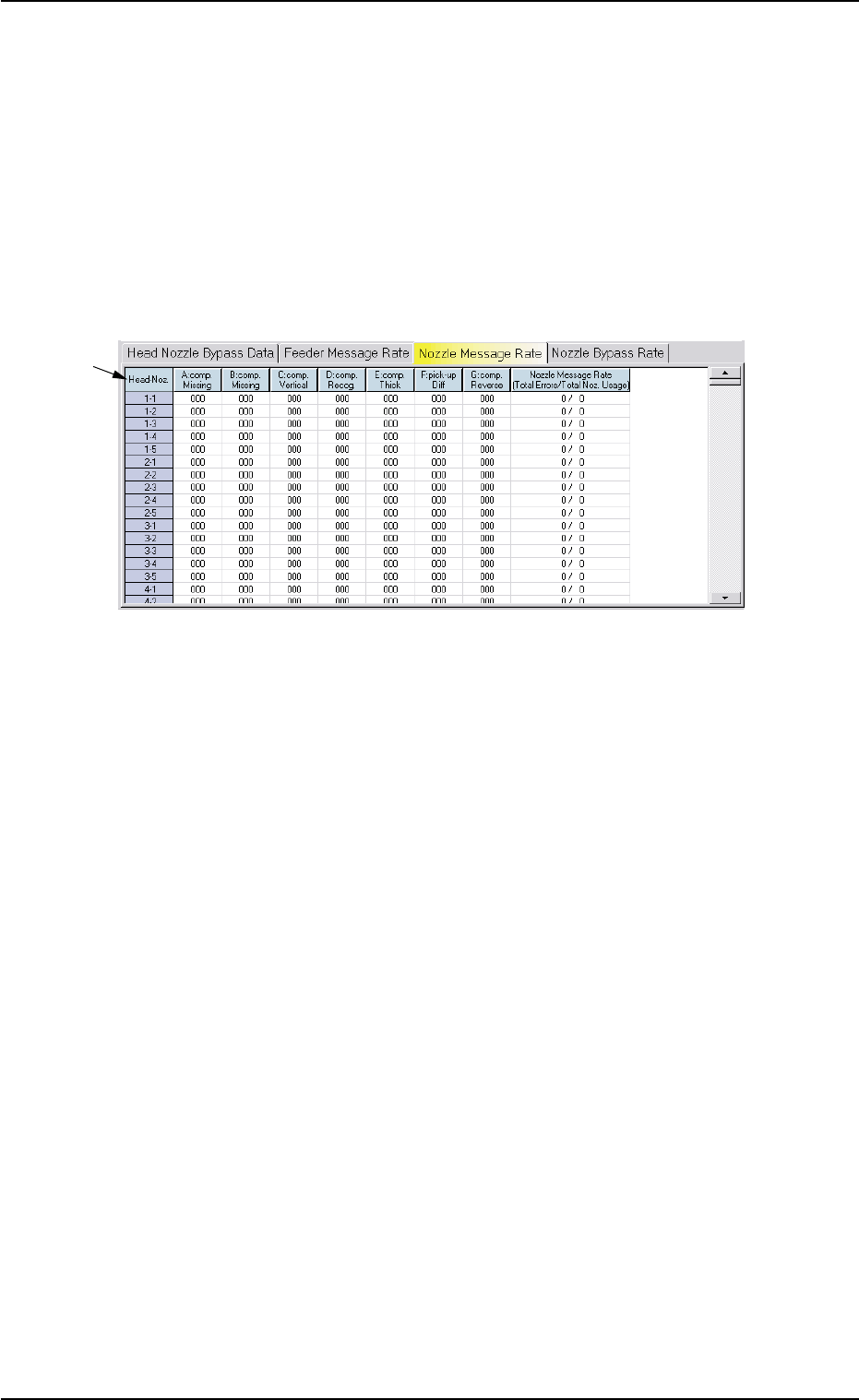

When the "Nozzle Message Rate" tab is pressed in the "Bypass & Rate

Data" window, the following tab sheet appears inside the window.

Fig. 3D23 "Nozzle Message Rate" Tab Sheet

• Sheet Composition

*1 Items

The following items are displayed.

(1) [Head-Noz.] Button

Shown are the nozzle Nos. on each head No.

(2) [A: comp. Missing] Button

Each text box shows the number of missing component errors de-

tected by the linear measure detection sensor.

(3) [B: comp. Missing] Button

Each text box shows the number of missing component errors de-

tected through recognition operation.

(4) [C: comp. Vertical] Button

Each text box shows the number of vertical component errors de-

tected by the linear measure sensor for each individual nozzles.

0305-001 4-49

AIM01EDTP

5.3 "Nozzle Message Rate" Tab
