2.1.2 "Nozzle Data" Window The following describes how to open the "Nozzle Data" window . • Window Layout (1) Press the [SYSTEM] button on the main menu bar . The "SYS SEL" menu opens. Fig. …

: When pressed, this button fills all the selected text boxes

with the parameter in the last text box.

: When pressed, this button fills all the selected text boxes

with the parameter in the first text box.

: When pressed, this changes the colors of the tower light

and the buzzer sounds to the standard ones.

: When pressed, this displays a list of component IDs, mak-

ing it possible to select a component ID.

0403-002 5-5

AIM01EDTP

2.1 Display of Each Window

2.1.2 "Nozzle Data" Window

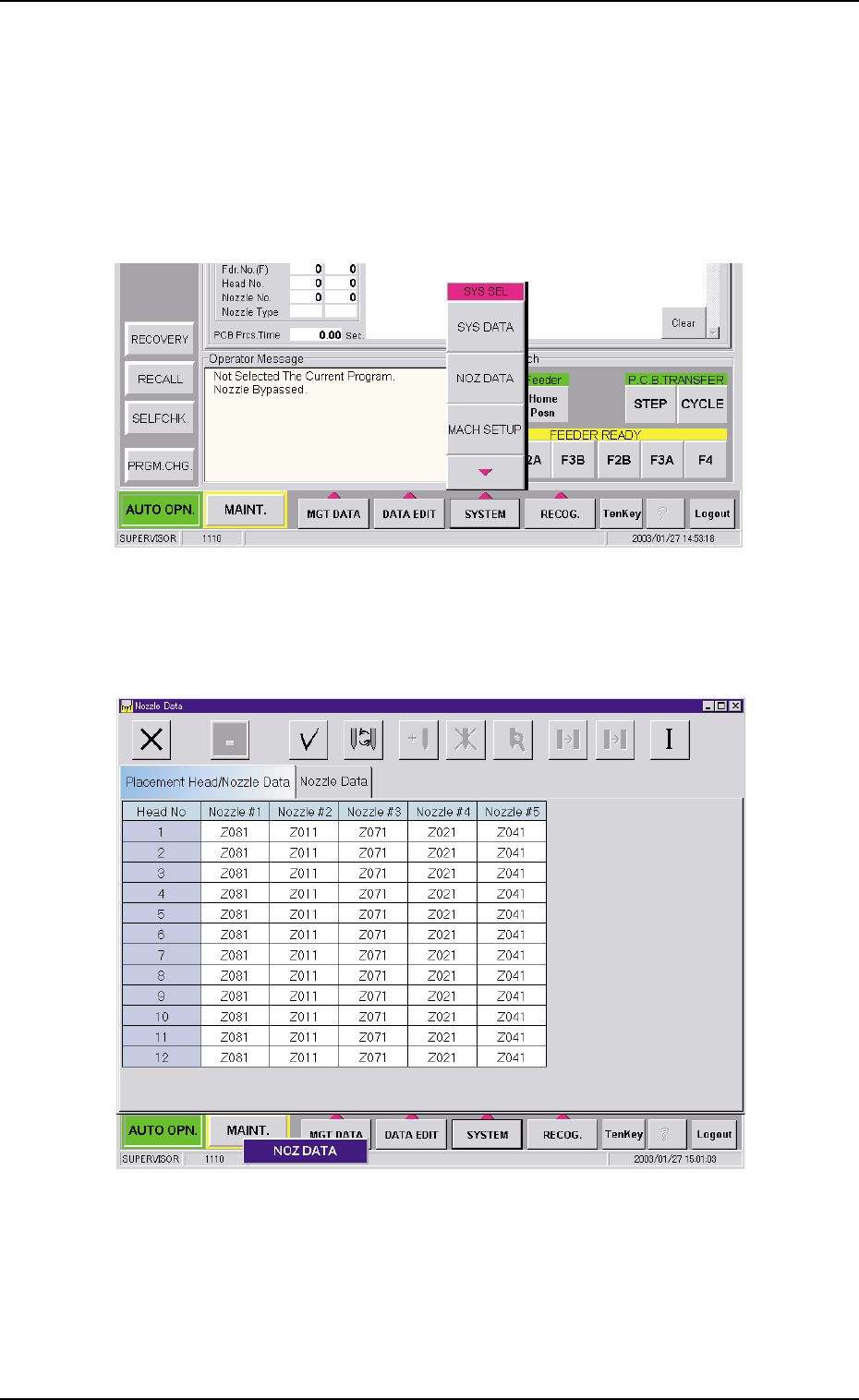

The following describes how to open the "Nozzle Data" window.

• Window Layout

(1) Press the [SYSTEM] button on the main menu bar. The "SYS SEL"

menu opens.

Fig. 3E5

(2) Press the [NOZ DATA] button.

The "Nozzle Data" window opens.

Fig. 3E6 "Nozzle Data" Window

0305-001 5-6

AIM01EDTP

2.1 Display of Each Window

• Composition of "Nozzle Data" Window

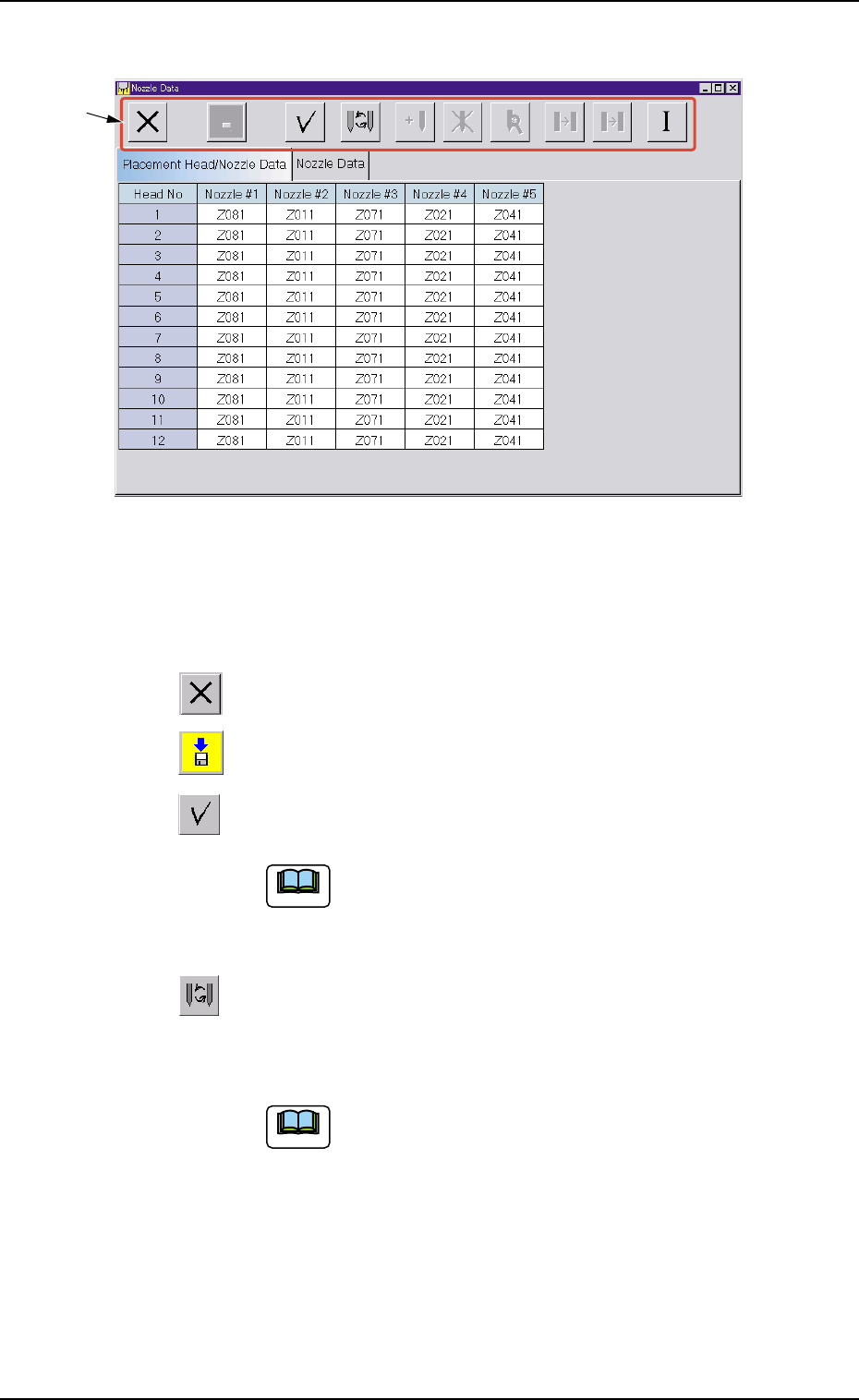

Fig. 3E7 "Nozzle Data" Window

*1 Icons

The following functions can be executed.

: When pressed, this closes the "Nozzle Data" window.

: When pressed, this saves the entered parameters.

: When pressed, this checks the entered parameters.

When an error is found, an error message box

opens.

: When pressed, this opens the "Nozzle Type" window.

This window enables you to change the currently selected

nozzle type to another one.

(a) Double-clicking a text box also opens the

"Nozzle Type" window.

(b) Clicking a "Nozzle #" label (title) selects the

nozzle Nos. on all heads at a time.

0305-001 5-7

AIM01EDTP

2.1 Display of Each Window

Note
